Canare L-5CFW flexibilný 3G/HD-SDI coaxial cable CNRL5CFW
Produkto numeris: 52855
Galima įsigyti iš tiekėjo: 18 prekės

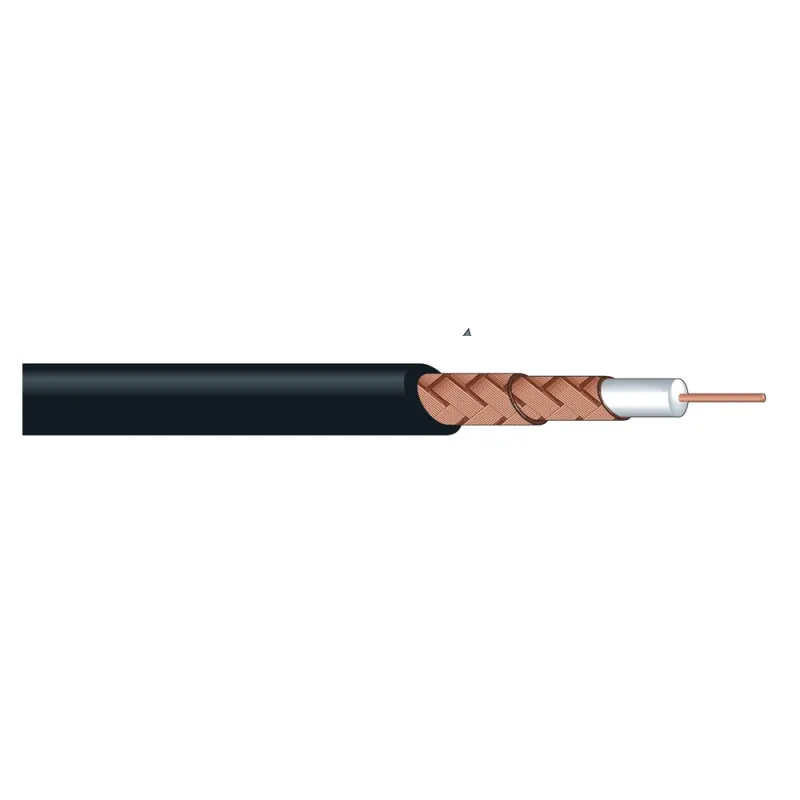

Canare L-5CFW is a "Low Loss" flexible and durable 75 ohm coaxial cable, outer diameter 7.7 mm - meter, price per regular meter.
| Type of Product | Wires, cables for video |
| Connections | BNC to BNC |
| Lenght, m | 100 |
Usage:
- in accordance with SMPTE 424M & 292M specification
- HDTV
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Specifications:
- Standard produced lengths: 100/200m
- Shell diameter (overall diameter) in mm: 7.7
- Cable weight in kg/100m: 8.1
- Central conductor - number and diameter of cores in mm: 1/1.05
- Total diameter of central conductor in mm: 1.05
- Foam dielectric - diameter in mm: 5.00
- Central conductor resistance in Ω/100m: 2.3
- Resistance of the outer conductor in Ω/100m: 0.5
- Static capacitance in pF/m: 55
- Attenuation in dB/100m: 19.4
