Canare L-3C2VS BLK Video Cable 100m 75 Ohm
Pristatymas per 5 - 7 dienas

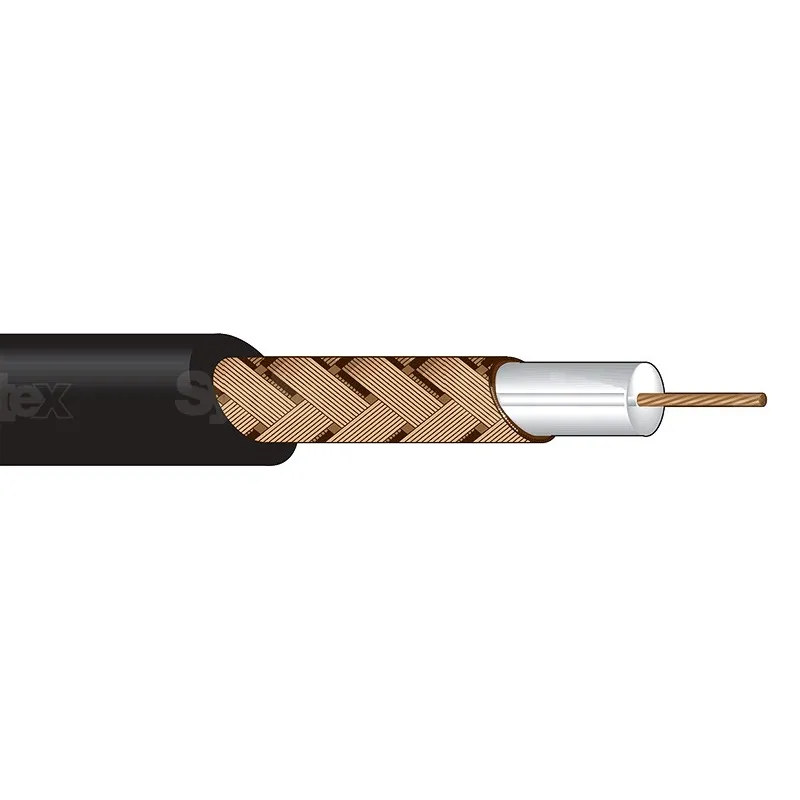

Very lightweight and super flexible 75 ohm 5.5mm coaxial cable with a stranded center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures.
| Type of Product | Cables |
| Type of Product | Wires, cables for video |
| Connections | BNC to BNC |
Usage:
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
- Rack cabling
- Video Patch Cables
Specifications:
- Standard manufactured lengths: 100/200m
- Sheath diameter (overall diameter) in mm:5.5
- Cable weight in kg/100m: 4.5
- Central conductor - number and diameter of strands in mm: 7/0,18
- Total diameter of central conductor in mm: 0.54
- Foam dielectric - diameter in mm: 3.1
- Resistance of the central conductor in ohm/100m:10.5
- Resistance of the outer conductor in ohm/100m:1,9
- Static capacitance in pF/m:67
- Attenuation in dB/100m:4.5
- Impedance in Ohm: 75
