Canare L-4CFB installation coaxial SDI cable, metrage CNRL4CFB
Produkto numeris: 52853
Galima įsigyti iš tiekėjo: 127 prekės
Canare L-4CFB installation 3G/HD/SD-SDI "low loss" 75 ohm coaxial cable. Price per meter
| Type of Product | Wires, cables for video |
| Connections | BNC to BNC |
| Lenght, m | 100 |

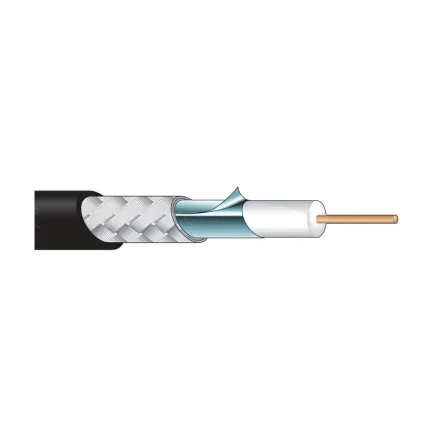

Canare L-4CFB is a 3G/HD/SD-SDI "low loss" 75 ohm coaxial cable with a central copper wire conductor, a tightly woven tinned copper braid and an aluminum foil with excellent shielding capability. The Canare L-4CFB cable is suitable for fixed installations.
Usage:
- HD-Serial Digital Video
- Satellite Technology
- HDTV
- Broadband equipment
- SMPTE 259M, 292M,424M
Features:
- Copper wire central conductor
- PE foam dielectric
- Tinned copper braid + 100% Alu foil
- Dielectric layers separated from conductor
- 100% precision coaxial cable - continuously variable frequency test
Specifications:
- Standard manufactured lengths: 100/200m
- Sheath diameter (overall diameter) in mm: 6.1
- Cable weight in kg/100m: 4.9
- Total diameter of central conductor in mm: 0.8
- Foam dielectric - diameter in mm: 3.7
- Resistance of central conductor in Ω/100m:3.6
- Resistance of outer conductor in Ω/100m:1,0
- Static capacitance in pF/m: 55
- Attenuation in dB/100m: 23,6
- Impedance in Ω: 75
