Canare L-3CFW flexible 3G/HD-SDI coaxial cable, by meter L-3CFW

Canare L-3CFW

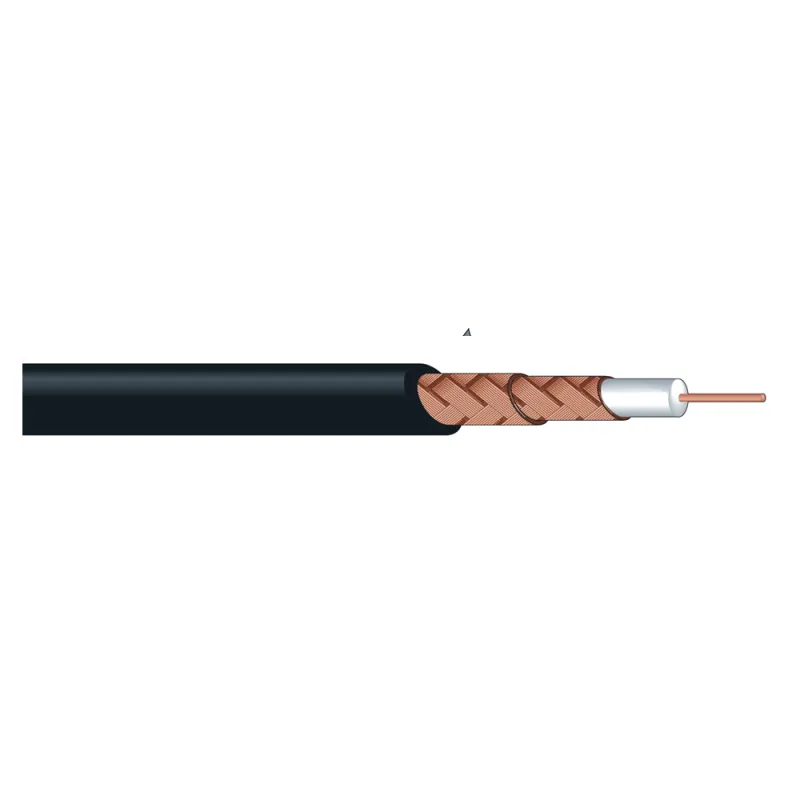

Canare L-3CFW is a low-loss, flexible, and durable 75-ohm coaxial cable designed for 3G/HD/SD-SDI applications, with an outer diameter of 5.8 mm. Price per meter.

Usage

• Compliant with SMPTE 424M & 292M specifications
• HDTV
• HD/SD-SDI video
• PAL & NTSC analog video
• Satellite applications
• TELCO
• Test equipment

Specifications

• Standard lengths: 100/200m
• Sheath diameter: 5.8 mm
• Cable weight: 5.1 kg/100m
• Central conductor: 1/0.65 mm
• Foam dielectric diameter: 3.10 mm
• Resistance of central conductor: 5.5 /100m
• Resistance of outer conductor: 0.7 /100m
• Temperature range: -30C to +60C
• Static capacitance: 33.1 pF/m
• Attenuation: 19.4 dB/100m

Maximum Transmission Distance

• 288m at 177 Mbps
• 230m at 270 Mbps
• 197m at 360 Mbps
• 158m at 540 Mbps
• 60m at 1.5 Gb/s
• 60m at 3.0 Gb/s

Values are based on SMPTE standards and may vary with the receiving device. Our criteria ensure cable attenuation does not exceed SMPTE cable loss at 1/2 frequency.
