Canare L-5.5CUHWS BLK flexible 12G-SDI bulk cable CNRL55CUHWS

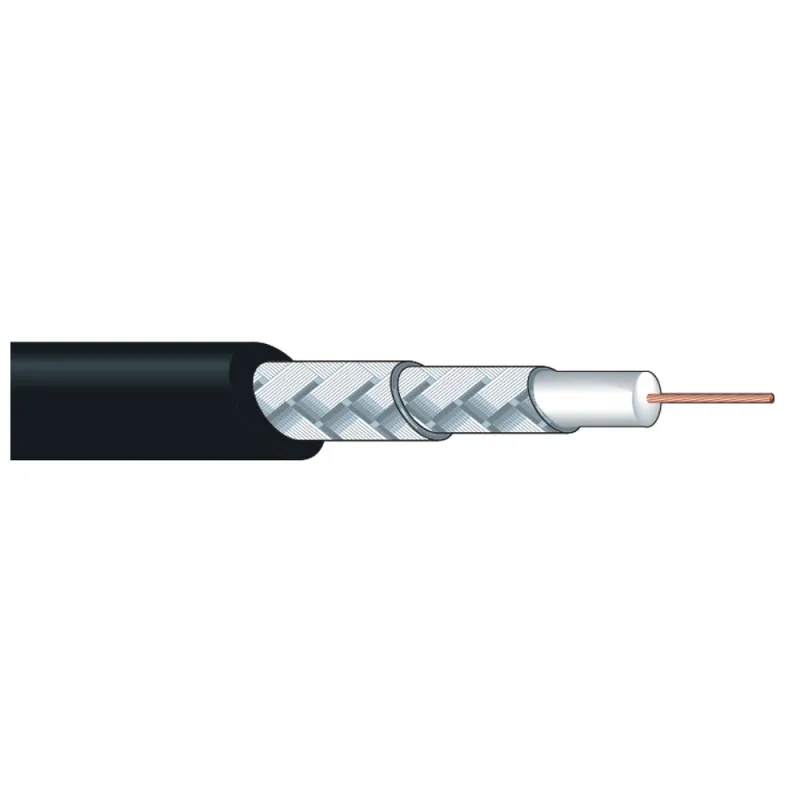

Canare L-5.5CUHWS - 75 ohm 4K UHD, 12G-SDI Coaxial Cable

Low Loss Coax For Mobile (Highly-Formed / Formed PE Insulation).

Applications

• Specially designed for 12G-SDI mobile applications
• Flexible and low loss structure
• Stranded center conductor
• High-density double-braided shield
• Highly-foamed insulation

Mechanical Specifications

• Model: L-5.5CUHWS
• Standard Length: 328 ft (100 m) / 656 ft (200 m)
• Nominal O.D: 0.35 in (8.1 mm)
• Weight (Standard Length): 19.62 lbs (8.9 kgs) / 100m
• Inner Conductor Composition: (16) 7/NA
• Inner Conductor O.D: 0.05 in (1.3 mm)
• Insulation O.D: 0.22 in (5.56 mm)
