DJI Focus Pro LiDAR - 76,800 Ranging Points, 20m Distance

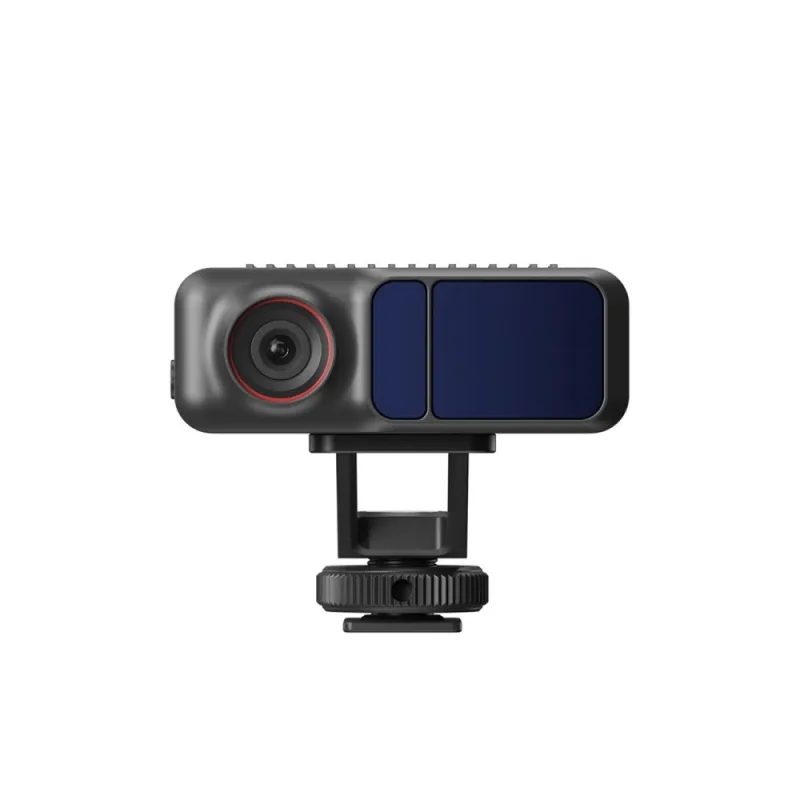

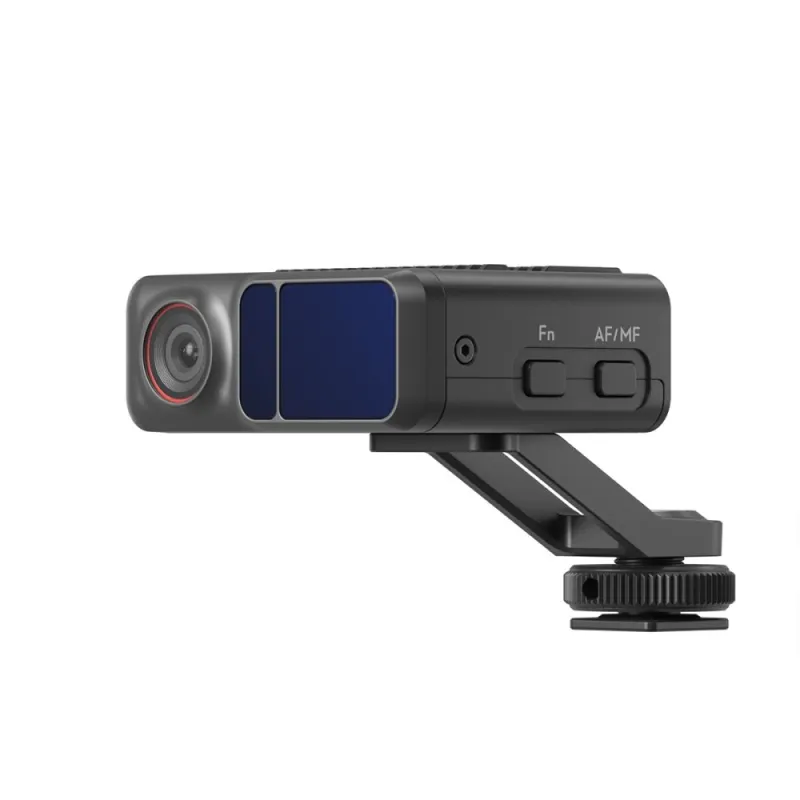

DJI Focus Pro - LiDAR

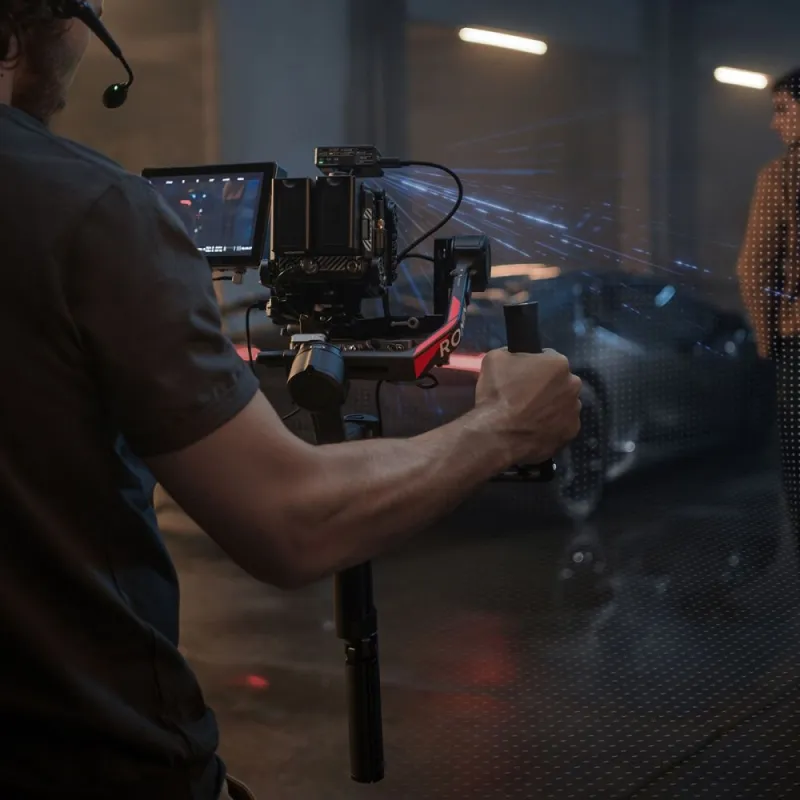

The LiDAR boasts 76,800 ranging points, a leap of 77 in quantity, sharpening human-subject edge detection while effectively reducing focus hunting. The max focus distance is 20 meters, and the human-subject focus distance is approximately three times that of the previous generation, effortlessly handling long-distance focusing with telephoto lenses. The 70 FOV is beneficial for edge compositions and close-up shots, providing a larger framing space. The LiDAR refresh rate of 30 Hz allows for faster subject information collection, ensuring more confident focusing on moving subjects. When paired with the DJI Focus Pro Motor, the LiDAR can enable autofocus for manual lenses that have been calibrated.

Tips

When the stabilizers screen is in 1x mode, the LiDAR's ToF sensor operates within a 10-meter sensing range by default. To extend to a 20-meter focus distance, you can tap the + icon on the screen to enable 2x zoom Display.

Specifications

• Ranging Points: 76,800
• Sensing Range: 0.5-20 m
• FOV:
  • Wide-Angle Mode: 65° (horizontal), 40° (vertical), 76.1° (diagonal)
  • Telephoto Mode: 20° (horizontal), 20° (vertical), 28.3° (diagonal)
• Frame Rate: 30fps
• Equivalent Focal Length: 30 mm (wide-angle mode)
• Ranging Accuracy: 1 to 3 (affected by the distance)
• Power Consumption: Average approx. 6.3 W, max 6.8 W
• Input Voltage: 6.6-17.2 V
• Operating Temperature: -20 to 45°C (-4 to 113°F)
• Main Body Dimensions: 68 x 25 x 57 mm (LxWxH)
• Weight: 140 g

Compatibility

• RS 4 Pro
• RS 3 Pro
• Focus Pro Grip

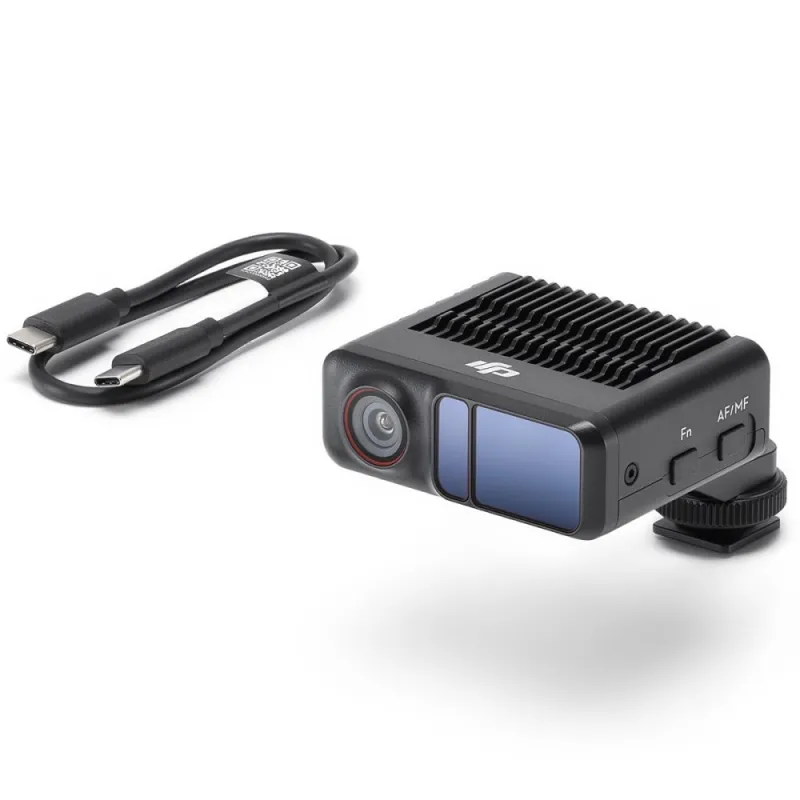

In the Box

• 1x Focus Pro LiDAR
• 1x Multi-Camera Control Cable (USB-C, 30 cm)
