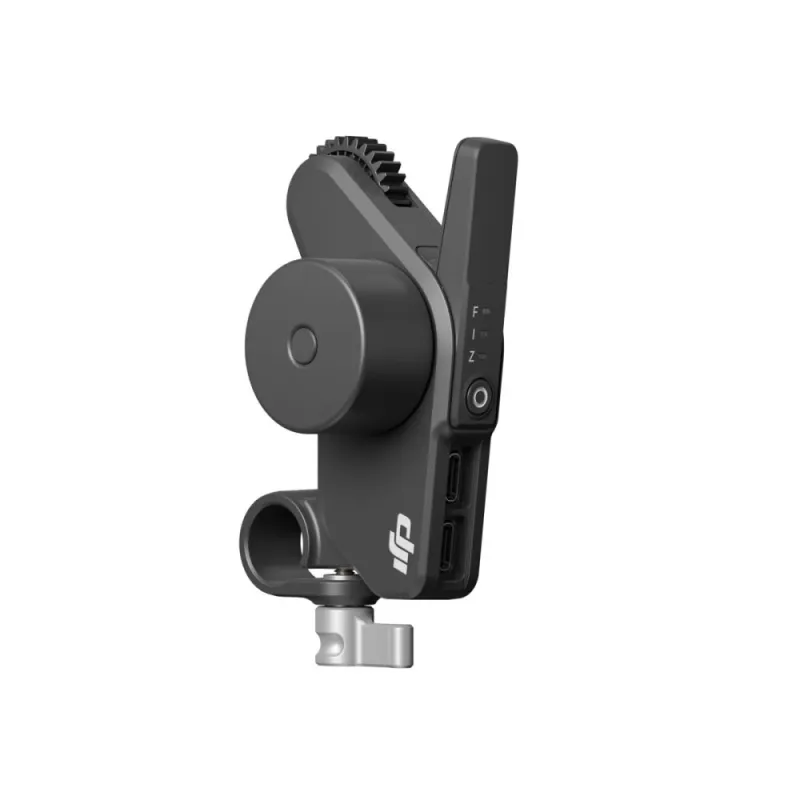

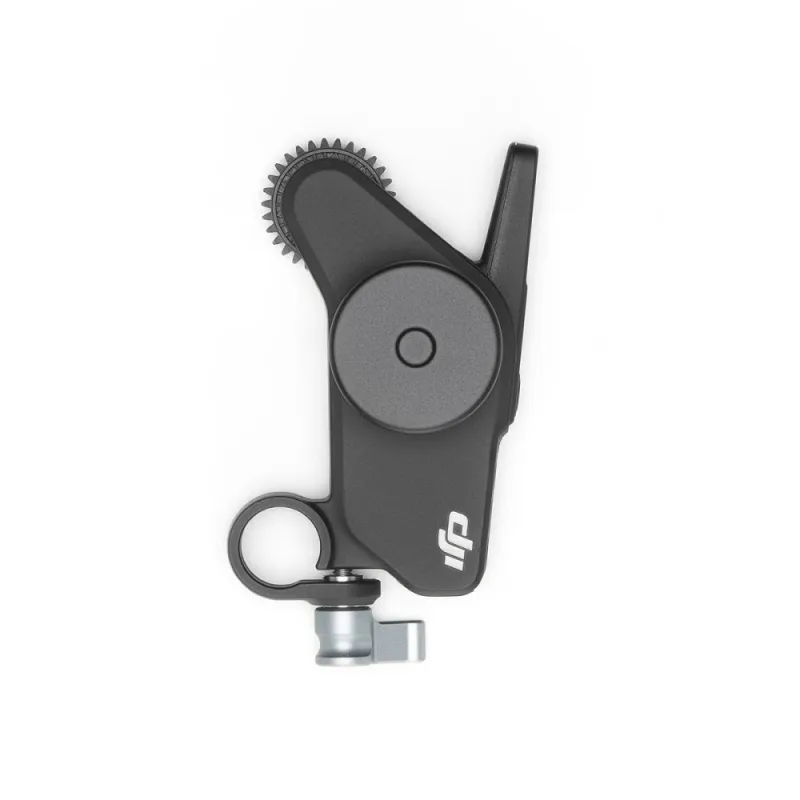

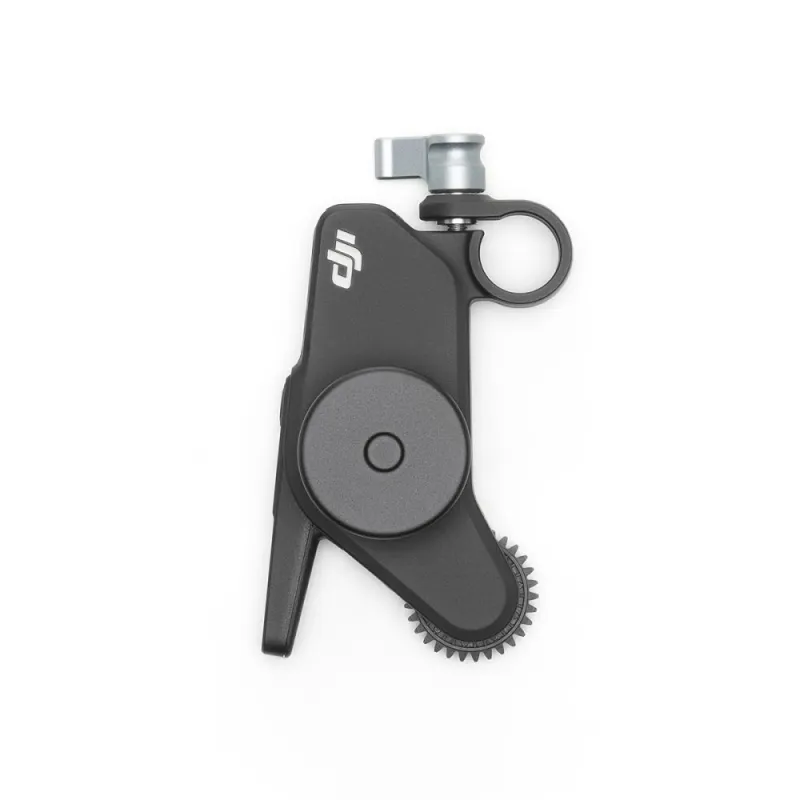

DJI Focus Pro Motor

DJI Focus Pro Motor

The motor speed has increased by 30 for more responsive control over focus, zoom, and aperture. The motor is compatible with 15mm universal rods. The latency is as low as 10 milliseconds, ensuring swift control response when paired with the DJI Focus Pro Hand Unit. The motor features a built-in RF antenna that allows for linking with the DJI Focus Pro Hand Unit. When paired with the DJI Focus Pro Grip, the grip can power the motor via the USB-C port.

Compatibility

• DJI RS 4 Pro
• DJI RS 4
• DJI RS 3 Pro
• DJI RS 3
• DJI Focus Pro-Grip
• DJI Focus Pro-Hand Unit
• DJI Ronin 4D Flex

The motor can be powered through third-party devices. Do not use an extra device to power the DJI Focus Pro Motor when it is already powered (e.g., by the DJI Focus Pro Grip), as this may cause device damage.

DJI RS 4 Pro can be used with up to two motors simultaneously, while DJI RS 4 only supports one motor.

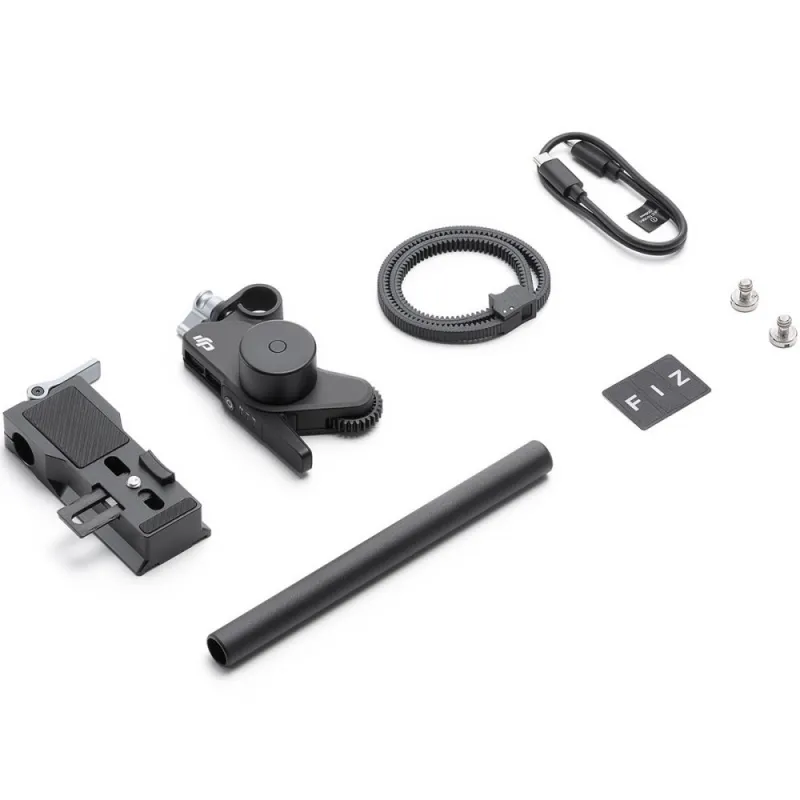

In the Box

• 1x Focus Pro Motor

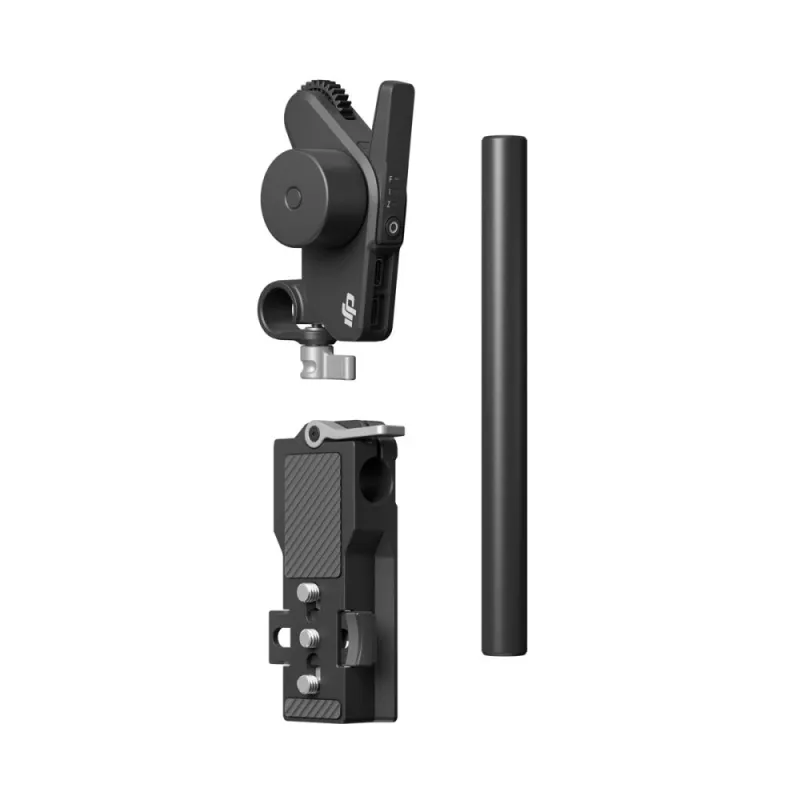

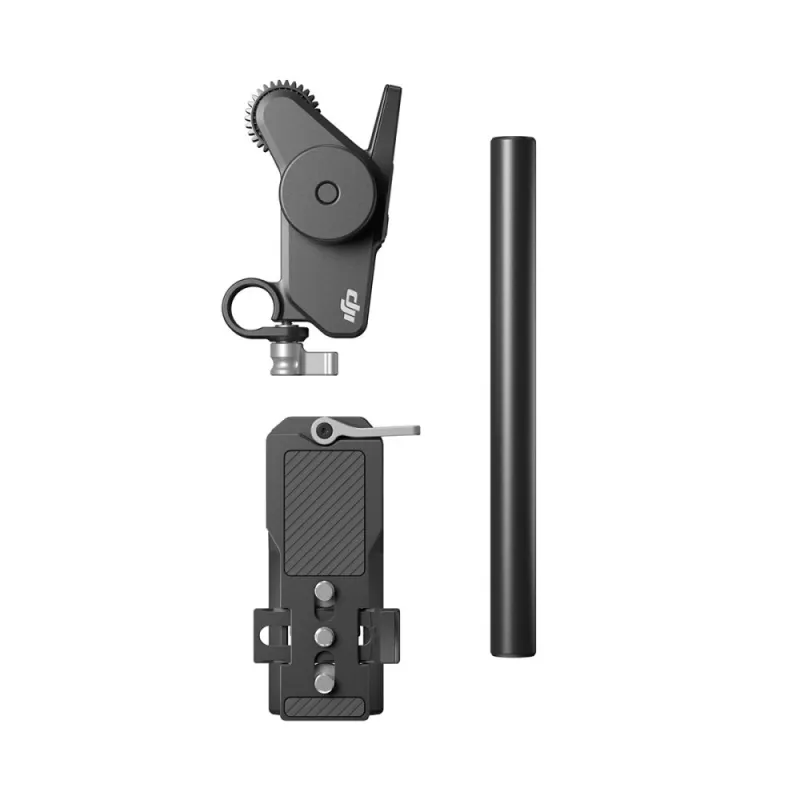

• 1x Motor Rod Mount Kit
• 1x Focus Gear Strip
• 1x Multi-Camera Control Cable (USB-C, 30 cm)
• 1x FIZ Sticker
• 1x 15mm Rod
• 2x 10mm 1/4-20 Screw

Specifications

2.4GHz Transmitter Power (EIRP)

< 20 dBm (CE/SRRC/MIC), < 26 dBm (FCC)

2.4GHz Transmission Distance

160 m*/ 100 m**
* Measured under FCC standard in an unobstructed environment free of interference.
** Measured under CE/SRRC/MIC standards in an unobstructed environment free of interference.

Dimensions (LxWxH)

100x61x34 mm

Weight

123 g

Rod Diameter

15 mm

Output Gear Teeth

30

Output Gear Module

0.8
