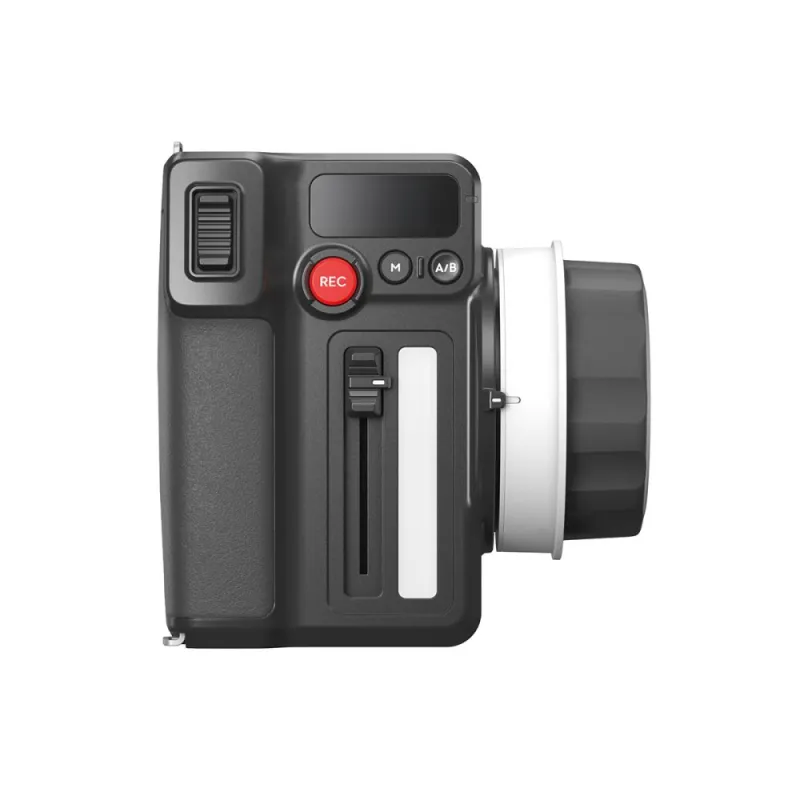

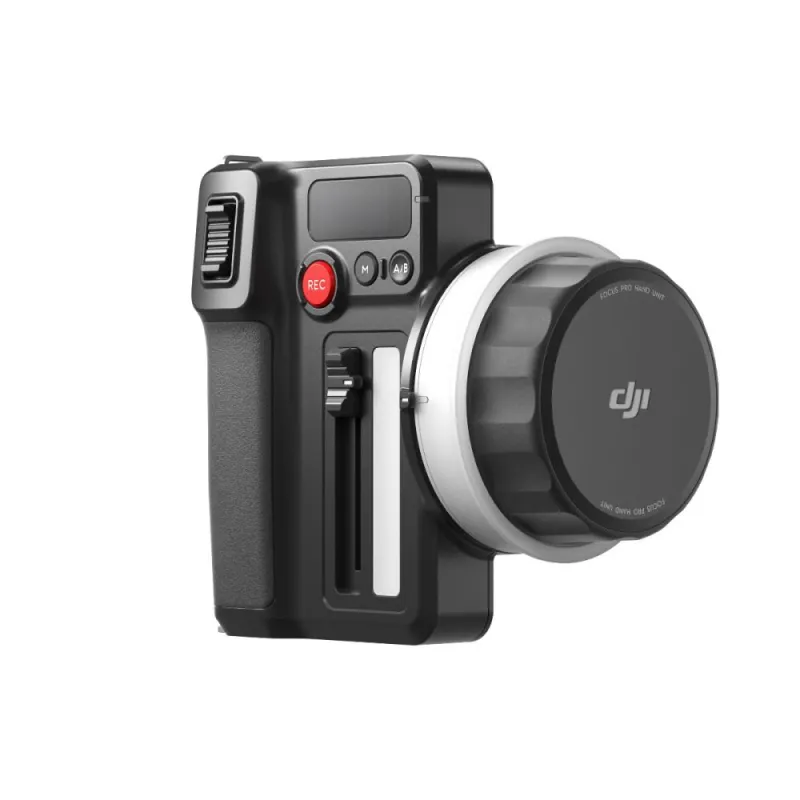

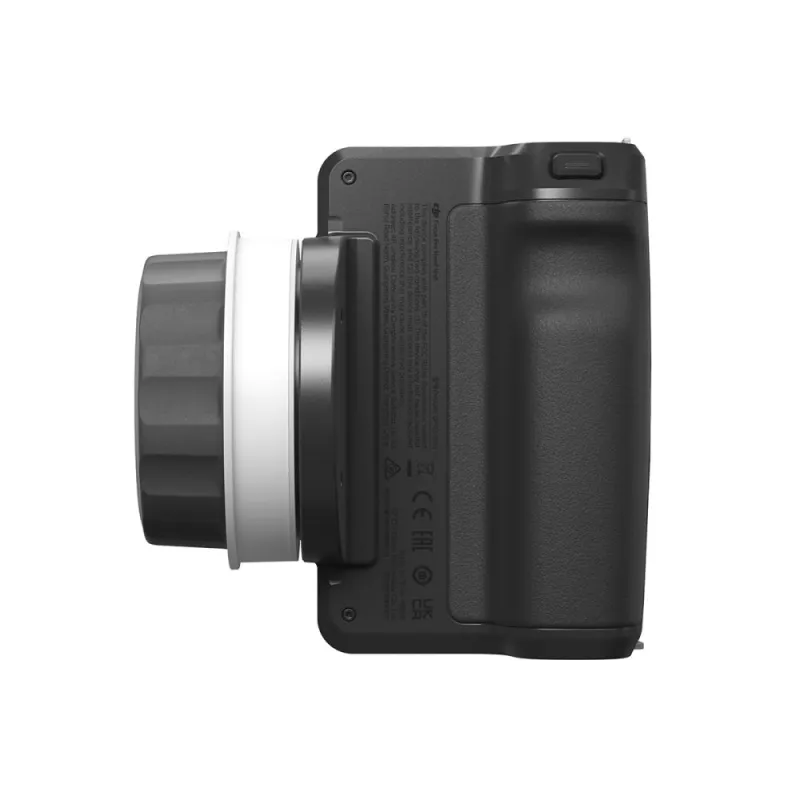

DJI Focus Pro Hand Unit

DJI Focus Pro Hand Unit

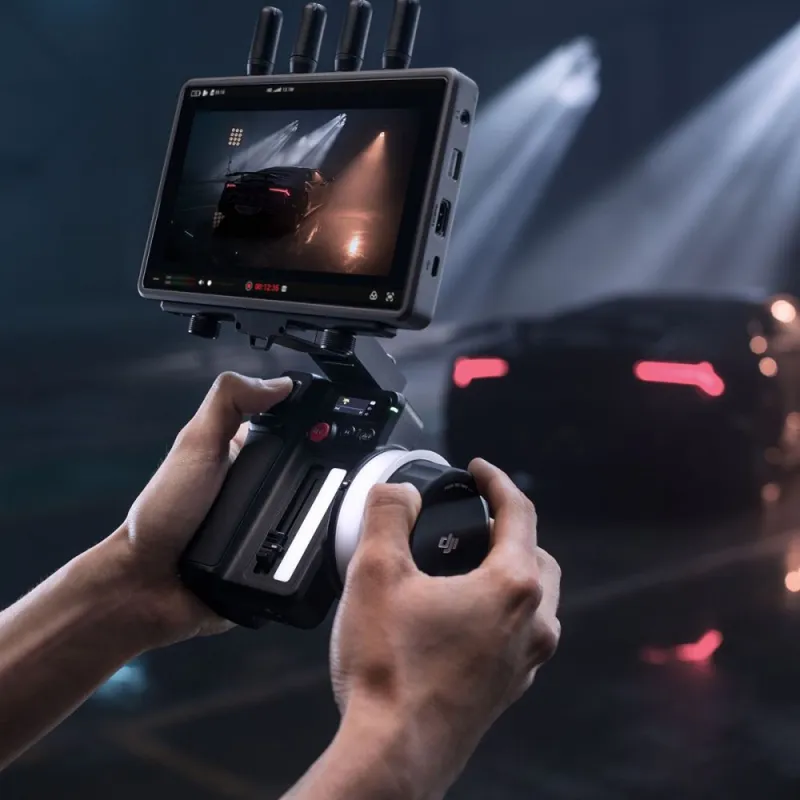

The hand unit supports wireless communication with the DJI Focus Pro Motor from up to 160 meters away for FIZ control and damping adjustments.

Compatibility

• DJI Focus Pro Motor
• DJI Ronin 4D*
• DJI Inspire 3* (*Requires the DJI Transmission High-Bright Remote Monitor)

The hand unit features a built-in RF module and supports wireless communication with the DJI Focus Pro Motor from up to 160 meters away. It supports FIZ control over the focus, aperture, and zoom, and features real-time, stepless damping adjustment to balance comfort and precision.

The hand unit utilizes the NP-F550 battery model commonly available on the market. The dimensions should be 71x38.6x21.1 mm (LxWxH). Make sure to purchase batteries according to these specified dimensions.

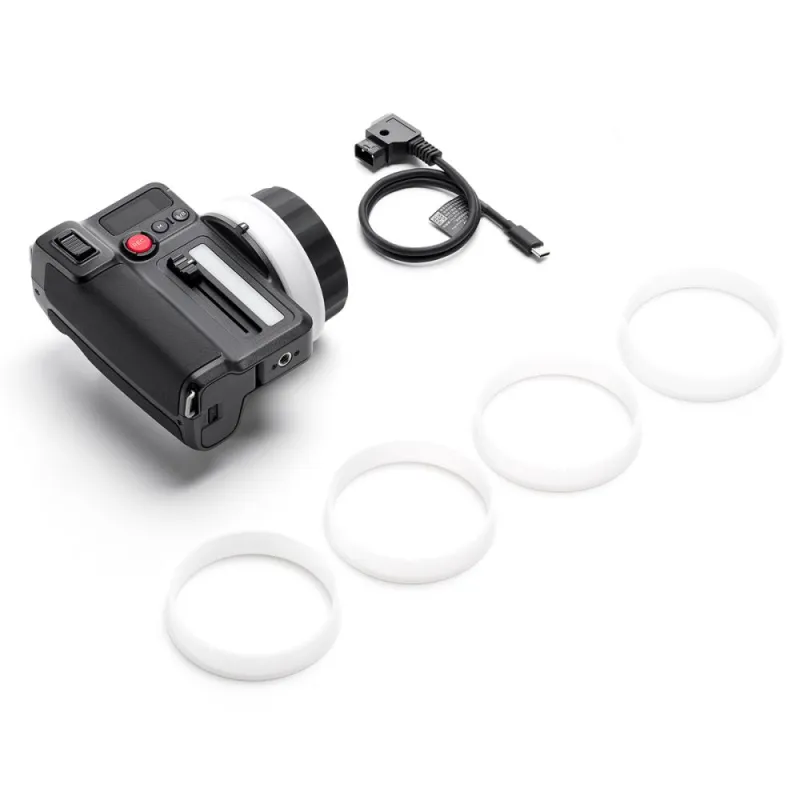

In the Box

• 1x Focus Pro Hand Unit
• 1x D-TAP to USB-C Power Cable (50 cm)
• 4x Replaceable Focus Marking Ring

Specifications

Transmitter Power

< 20 dBm (CE/SRRC/MIC), < 26 dBm (FCC)

Dimensions (LxWxH)

128x87x87 mm

Weight

555 g (without battery)

Static Power Consumption

0.83 W

Operating Temperature

-20 to 45 C (-4 to 113 F) (excluding battery temperature)
