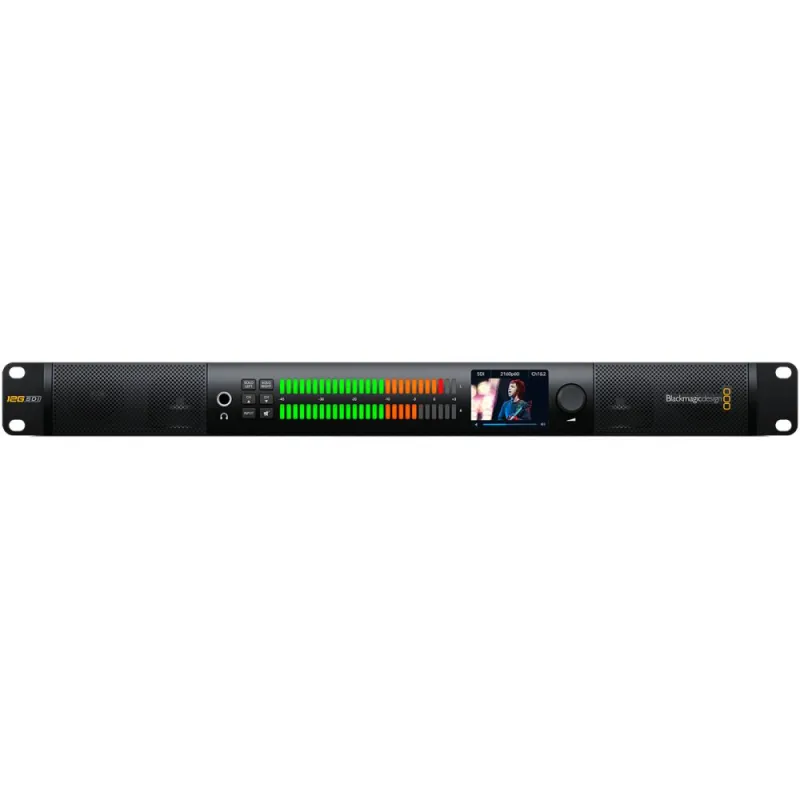

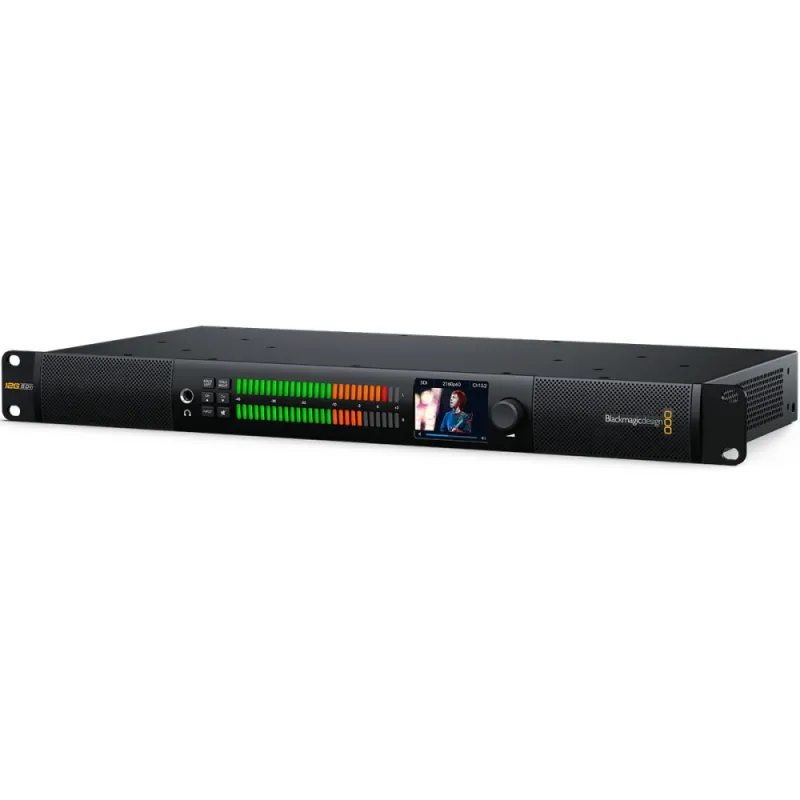

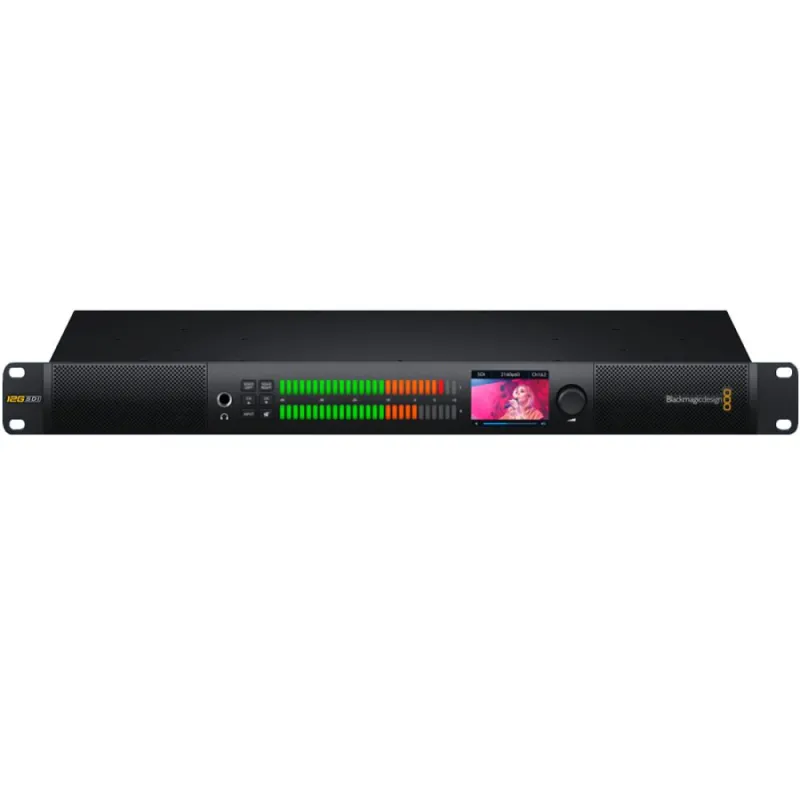

Blackmagic Design Blackmagic Audio Monitor 12G G3

Blackmagic Design Audio Monitor 12G G3

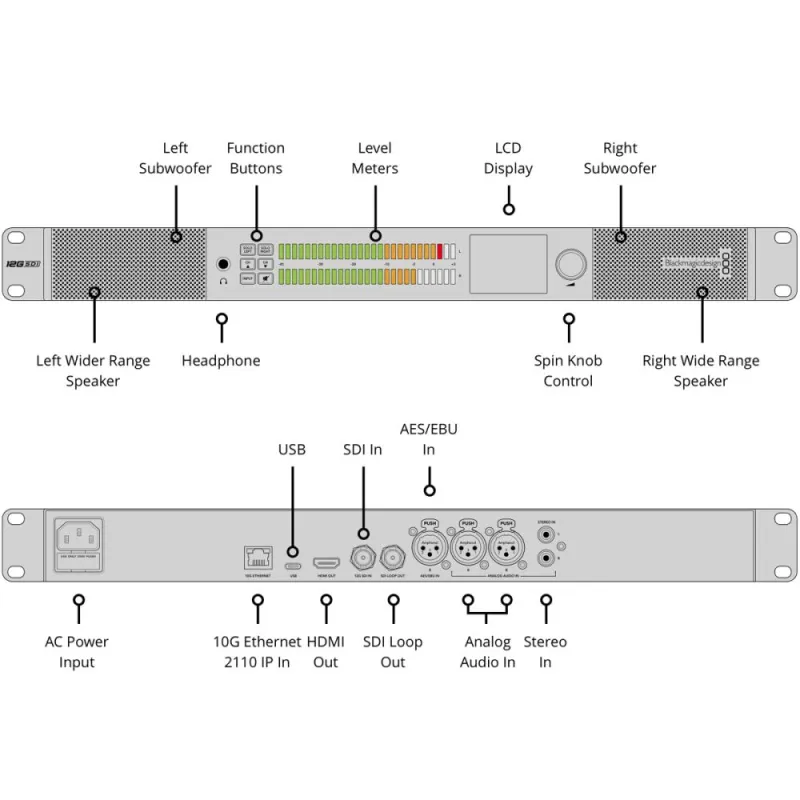

Blackmagic Audio Monitor 12G G3 is a compact rack mount audio monitoring solution with advanced features. It includes 10G Ethernet SMPTE-2110 IP input for monitoring IP broadcast systems without an external converter. The monitor also features a large audio meter, 12G-SDI input, balanced analog XLR, HiFi, AES/EBU inputs, and HDMI video output.

Small Size, Big Sound!

The Blackmagic Audio Monitor 12G delivers powerful sound in a compact 1 rack unit size. It includes a high-powered amp for clear audio monitoring in noisy environments. The dual subwoofer design provides rich deep bass sounds, and the digital processor ensures a smooth flat frequency response.

Supports All SD, HD, and Ultra HD Standards

Blackmagic Audio Monitor 12G de-embeds audio from all SD, HD, and Ultra HD video standards, making it ideal for connecting to both SDI and IP-based systems. It supports a wide range of video standards up to 2160p60, with instant and automatic switching between standards based on the video input.

Advanced 12G-SDI for Direct Video Monitoring

The monitor features advanced 12G-SDI connections for compatibility with current HD and future Ultra HD video formats. It supports high frame rate Ultra HD via a single BNC connection, making it compatible with SD, HD, 3G, 6G, and 12G-SDI equipment.

Connect Directly to SMPTE 2110 IP Networks

Blackmagic Audio Monitor 12G G3 connects directly to 2110 IP video systems, conforming to the SMPTE-2110 standard for IP video. It supports uncompressed video, the Blackmagic IP compressed codec, audio, and ancillary data over IP networks for broadcast.

In the Box

• 1 x Blackmagic Audio Monitor 12G G3
• 1 x PPM and Loudness Scale Stickers
• 1 x Welcome wallet with QR code for software download
