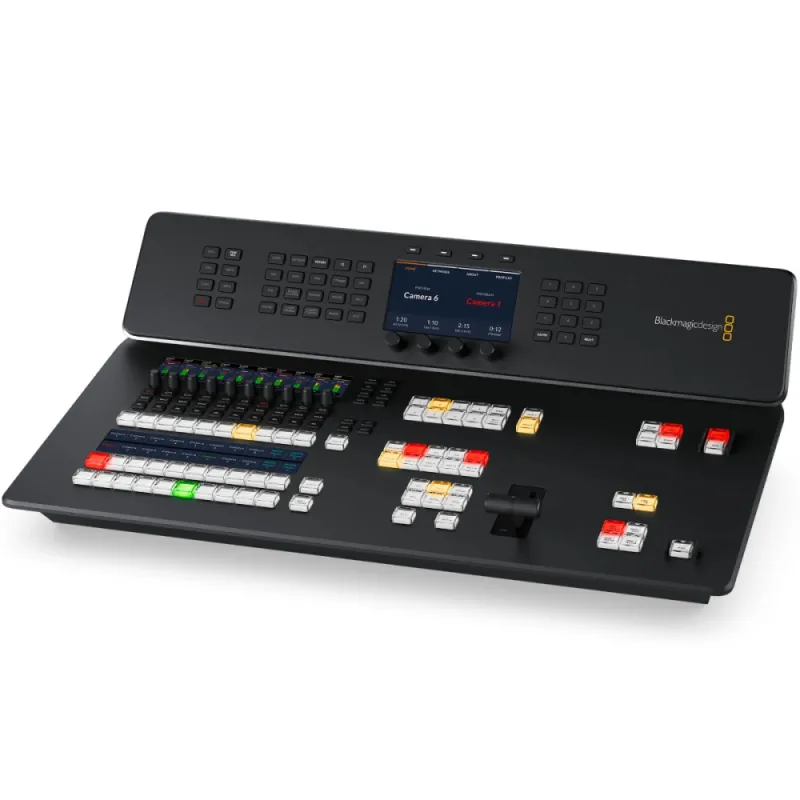

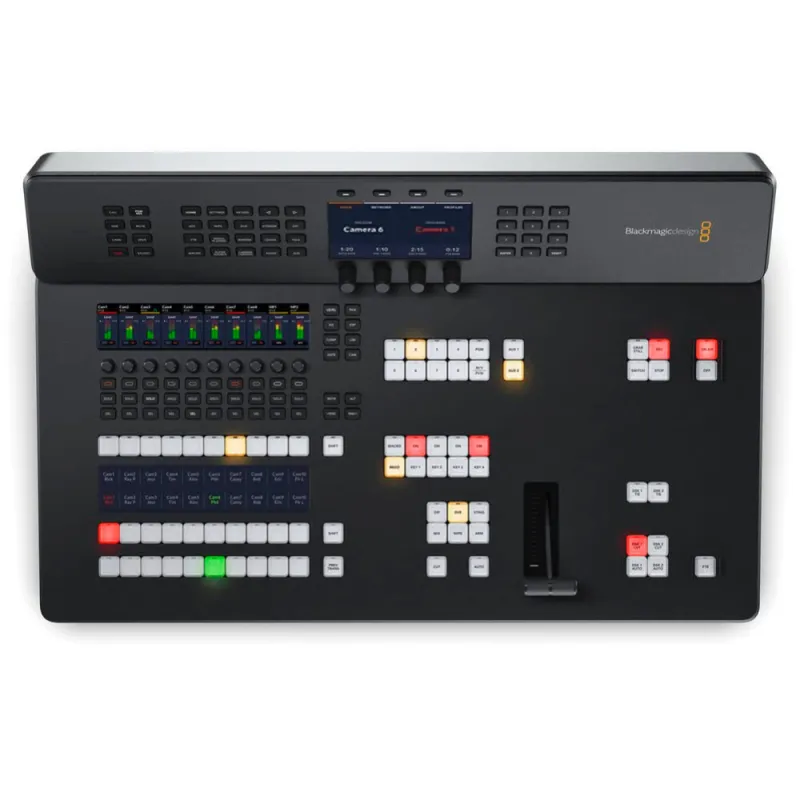

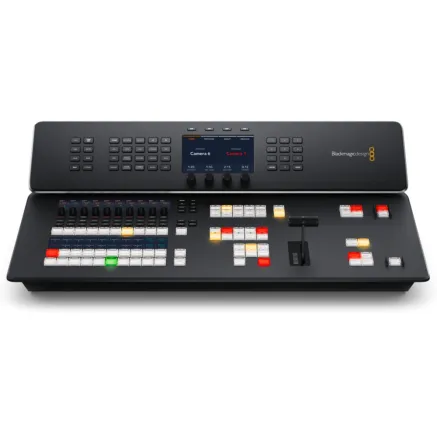

ATEM Television Studio HD8 is a compact live production switcher with a built-in broadcast control panel. It offers 8 standards converted 3G-SDI inputs, built-in streaming, master recorder, multiview, USB webcam support, DVE, 4 ATEM Advanced Chroma Keyers, media players, talkback, 4-way Ethernet switch, and optional internal cloud media storage.

Delivery Content

• ATEM Television Studio HD8
• Welcome wallet with QR code for software download

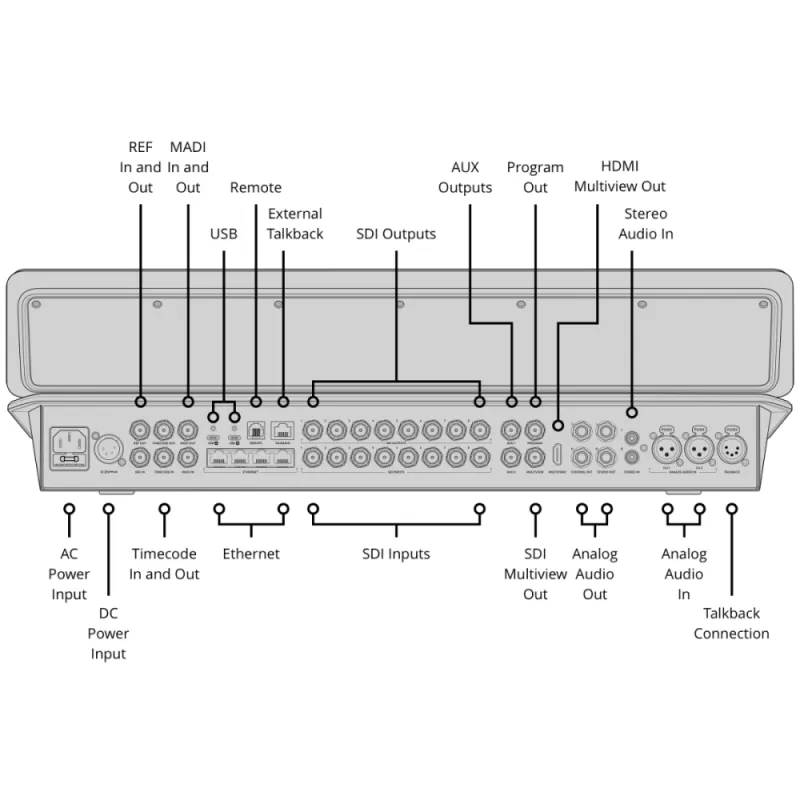

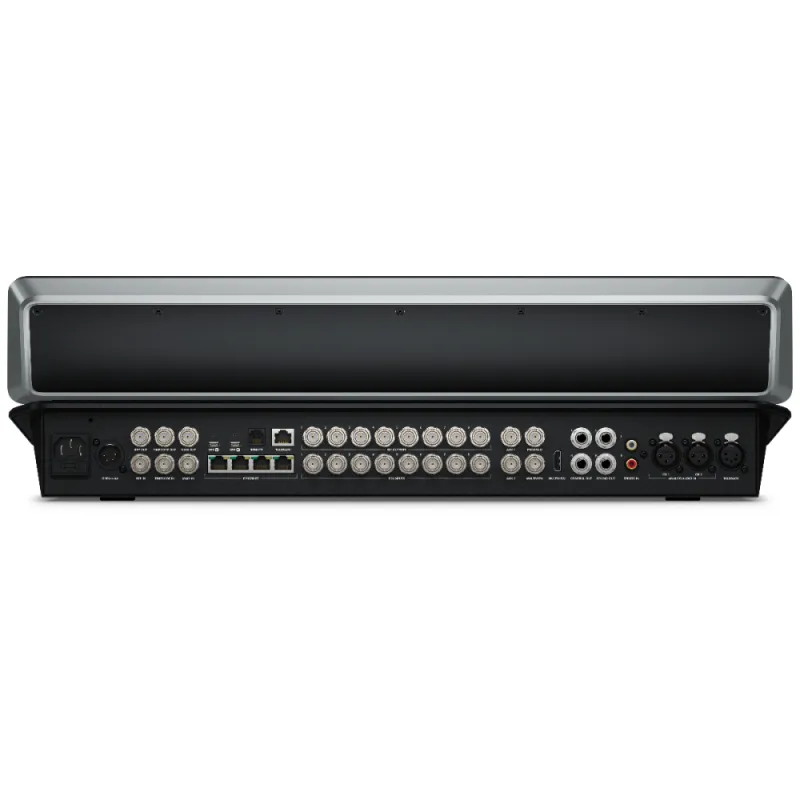

Connections

• SDI Video Inputs: 8
• SDI Video Outputs: 12
• SDI Rates: 1.5G, 3G
• HDMI Video Outputs: 1
• Total Audio Inputs: 2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5 pin XLR Talkback
• Total Audio Outputs: 4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5 pin XLR Talkback
• SDI Audio Inputs: 4 Ch embedded audio on all SDI inputs
• SDI Audio Outputs: 2 Ch embedded audio on all SDI outputs
• Timecode Connections: 1 x BNC In, 1 x BNC Out
• Reference Input: 1 x BNC In, 1 x BNC Out, Tri-Sync or Black Burst
• Video Input Re-Sync: On all 8 inputs
• Frame Rate and Format Converters: On all 8 inputs
• SDI Aux Outputs: 2
• SDI Program Outputs: 1
• Webcam Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate
• Total Multi Views: 1 x 3G-SDI, 1 x HDMI
• Remote: RJ12 supports RS-422
• Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network
• Internal Timecode Generator: Yes
• Talkback: RJ45 for 3rd party talkback systems
• Tally Output: Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product (Not included)
• Ethernet: 4 x RJ45 with internet network switch, Supports 10/100/1000 BASE-T
• Computer Interface: 2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates, and switcher connection
