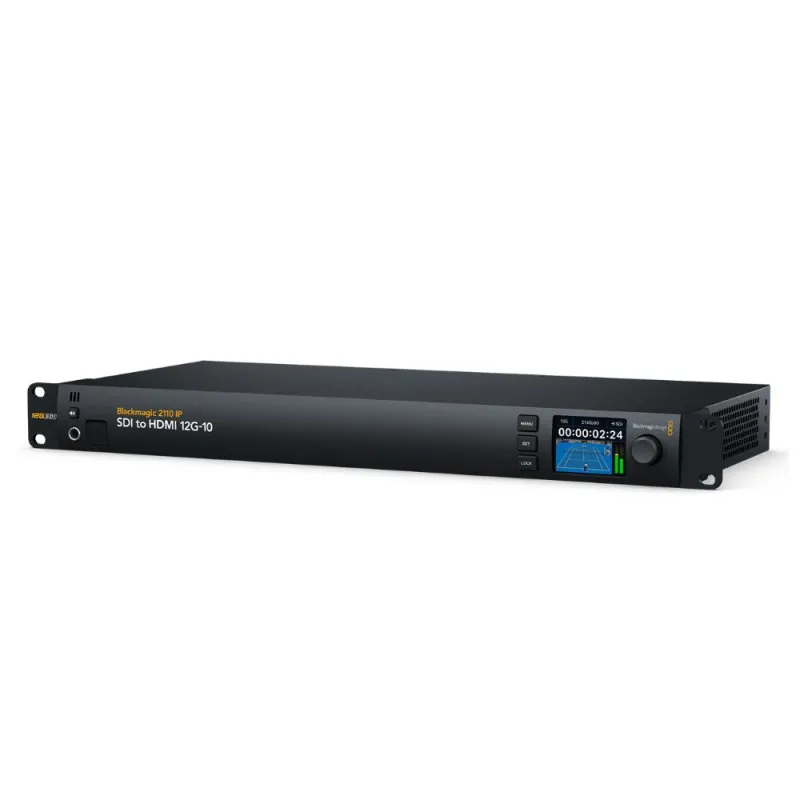

Blackmagic Design Blackmagic 2110 IP SDI to HDMI 12G-10 Converter CONVNVIPM/12G/HDMI10

Blackmagic 2110 IP SDI to HDMI 12G-10

The Blackmagic 2110 IP SDI to HDMI 12G-10 converts 12G-SDI or SMPTE-2110 video to HDMI, providing high-quality conversion for SD, HD, and Ultra HD standards. It supports 3D LUT for precise calibration of HDMI displays and is expected to be available in June 2025.

This device is perfect for color grading studios and projection rooms, offering color-accurate monitoring for OLED TVs and multi-channel surround sound with active speakers. It features ten channels of XLR analog audio output for surround sound monitoring, remote volume control, and adjustable delay for AV synchronization.

Designed for integrating SDI devices into SMPTE-2110 IP broadcast systems, it includes a front LCD display for video preview and audio levels. The device supports 12G-SDI video connectors, allowing connections to both traditional and modern broadcast equipment.

Connectivity

• 1 SDI input
• 1 SDI loop output
• SDI speeds: SD, 1.5G, 3G, 6G, 12G
• 1 HDMI 2.0 video output
• 1 SMPTE 2110 input/output: 10G Ethernet
• 16-channel embedded audio: ST-2110 IP video over 10G Ethernet
• 10 analog audio outputs: 3-pin XLR connectors
• 1 USB-C webcam output: up to 1080p60
• Ethernet: 10/100/1000/10G BASE-T for SMPTE 2110 IP video

Package Includes

• Blackmagic 2110 IP SDI to HDMI 12G-10
• Welcome pack with QR code for software download
