Infinitek 3G/HD-SDI on reel with cable holder 80m

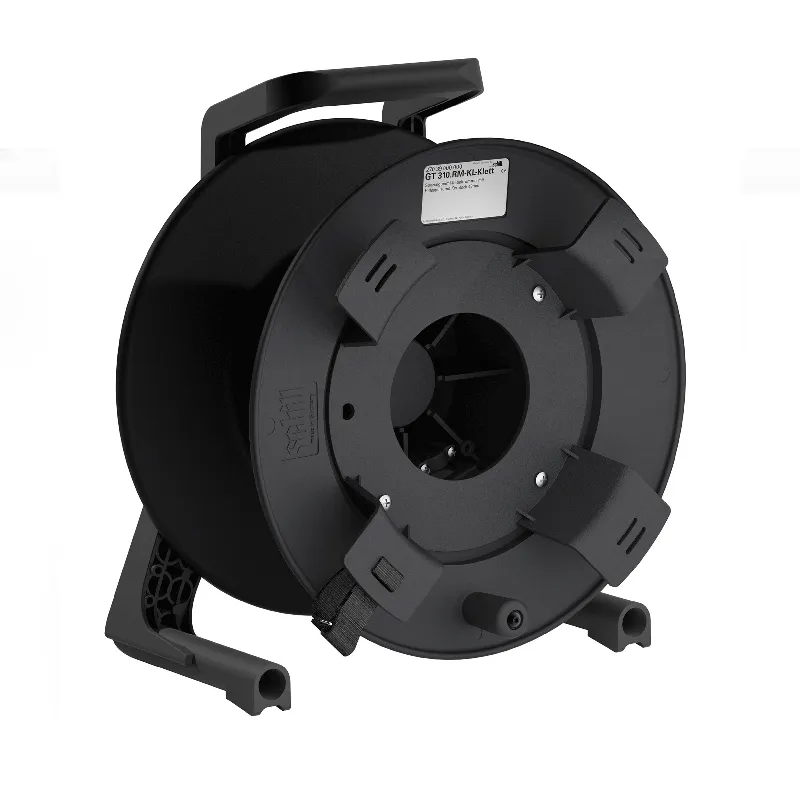

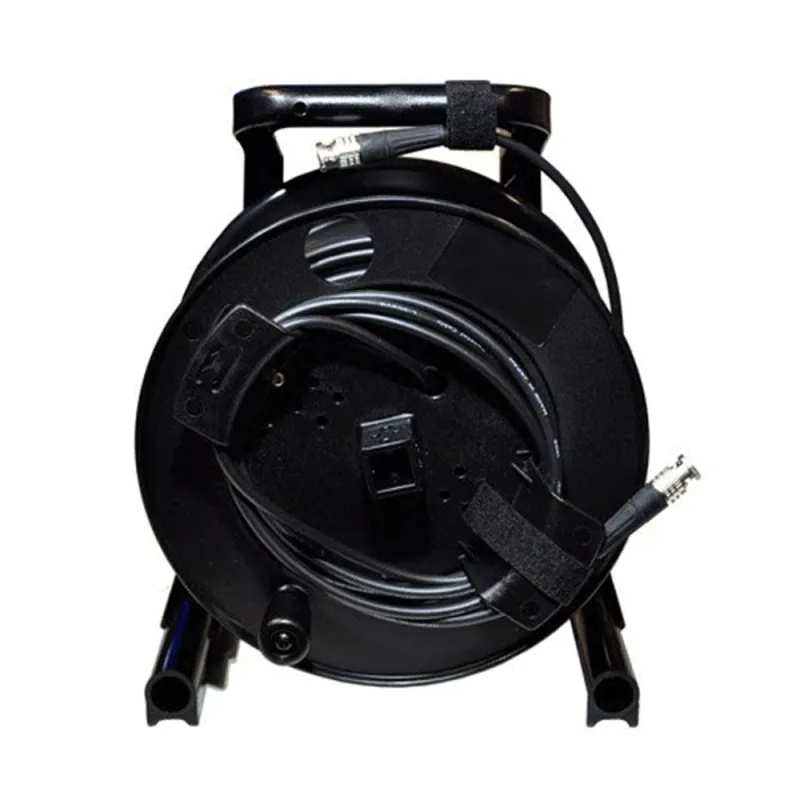

Canare L-4.5CHWS BNC (M-male) / BNC (M-male) is a "Low Loss" flexible and durable 75 ohm HD/SD-SDI coaxial cable, 7.2 mm outer diameter with BNC (M) terminations wound on a SCHILL drum. 30-40 m long cables are wound on a Schill GT 235.RM drum, 50-80 m long cables are wound on a larger Schill GT 310.RMdrum
Its great flexibility makes it ideal for mobile HD use with excellent resistance to repeated bending. The cable has a stranded central conductor and "High-density" double braided shielding with high density and thick foam insulation.
| Length in (m) | 405m | 322m | 280m | 225m | 87m | 90m |
| Transmission speed | 177 Mbps | 270 Mbps | 360 Mbps | 540 Mbps | 1.5 Gb/s | 3.0 Gb/s |
| Specifications | ITU-R BT.601 | SMPTE 259M | SMPTE 259M | SMPTE 344M | SMPTE ST-292 | SMPTE ST-424 |
| Use | PAL composite | 525/625 (4:3) | 525/625 (16:9) | 525/625 (4:3) p60 SDI | HD-SDI 1080i | HD-SDI 1080p |
Features of Canare L-4.5CHWS cable:
- compliant with SMPTE 424M & 292M specification
- HDTV
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Canare L-4.5CHWS cable parameters:
- Standard manufactured lengths: 100/200m
- Sheath diameter (overall diameter) in mm: 7.2
- Cable weight in kg/100m: 6.6
- Central conductor - number and diameter of cable cores in mm: 7/0.34
- Total diameter of central conductor in mm: 1.02
- Foam dielectric - diameter in mm: 4,57
- Resistance of central conductor in Ω/100m: 3.3
- Resistance of outer conductor in Ω/100m: 0,8
- Temperature range: -30°C ~ +60°C
- Static capacitance in pF/m: 53
- Attenuation in dB/100m at 750MHz: 22.8
BCP-B45HW connector features:
- True 75 ohm design with crimp pin and sleeve
- High performance 1.1 or less VSWR (Voltage standing Wave Ratio) up to 3GHz.
- Extended body for better handling
- Position mark on the body allows the connector to be easily inspected.
- Excellent cable grip
- Gold plated central pin
- Connector body is "die-cast" - achieving lower cost at high performance
- Easy assembly using the Canare crimp tool
BCP-B45HW connector parameters:
- Insulation resistance at 500V DC in Ω: >1000M
- Rated voltage for 1min: 1500V AC (rms)
- Central contact resistance: <6m ohm
- Resistance of outer contact: <3m ohm
- Impedance in Ω : 75
- Connector body - material/surface : Brass / Nickel
- Central contact - material/surface: Beryllium Copper / Gold
- Flange - material/surface: Die Cast AL / Nickel
- Dielectric - material: PTFE polytetrafluoroethylene
| Type of Product | Wires, cables for video |
| Connections | BNC to BNC |
| Lenght, m | 80 |
| Weight, gr | 6600 |
| Weight, gr | 6.6 |
Canare L-4.5CHWS BNC (M-male) / BNC (M-male) is a "Low Loss" flexible and durable 75 ohm HD/SD-SDI coaxial cable, 7.2 mm outer diameter with BNC (M) terminations wound on a SCHILL drum. 30-40 m long cables are wound on a Schill GT 235.RM drum, 50-80 m long cables are wound on a larger Schill GT 310.RMdrum
Its great flexibility makes it ideal for mobile HD use with excellent resistance to repeated bending. The cable has a stranded central conductor and "High-density" double braided shielding with high density and thick foam insulation.
| Length in (m) | 405m | 322m | 280m | 225m | 87m | 90m |
| Transmission speed | 177 Mbps | 270 Mbps | 360 Mbps | 540 Mbps | 1.5 Gb/s | 3.0 Gb/s |
| Specifications | ITU-R BT.601 | SMPTE 259M | SMPTE 259M | SMPTE 344M | SMPTE ST-292 | SMPTE ST-424 |
| Use | PAL composite | 525/625 (4:3) | 525/625 (16:9) | 525/625 (4:3) p60 SDI | HD-SDI 1080i | HD-SDI 1080p |
Features of Canare L-4.5CHWS cable:
- compliant with SMPTE 424M & 292M specification
- HDTV
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Canare L-4.5CHWS cable parameters:
- Standard manufactured lengths: 100/200m
- Sheath diameter (overall diameter) in mm: 7.2
- Cable weight in kg/100m: 6.6
- Central conductor - number and diameter of cable cores in mm: 7/0.34
- Total diameter of central conductor in mm: 1.02
- Foam dielectric - diameter in mm: 4,57
- Resistance of central conductor in Ω/100m: 3.3
- Resistance of outer conductor in Ω/100m: 0,8
- Temperature range: -30°C ~ +60°C
- Static capacitance in pF/m: 53
- Attenuation in dB/100m at 750MHz: 22.8
BCP-B45HW connector features:
- True 75 ohm design with crimp pin and sleeve
- High performance 1.1 or less VSWR (Voltage standing Wave Ratio) up to 3GHz.
- Extended body for better handling
- Position mark on the body allows the connector to be easily inspected.
- Excellent cable grip
- Gold plated central pin
- Connector body is "die-cast" - achieving lower cost at high performance
- Easy assembly using the Canare crimp tool
BCP-B45HW connector parameters:
- Insulation resistance at 500V DC in Ω: >1000M
- Rated voltage for 1min: 1500V AC (rms)
- Central contact resistance: <6m ohm
- Resistance of outer contact: <3m ohm
- Impedance in Ω : 75
- Connector body - material/surface : Brass / Nickel
- Central contact - material/surface: Beryllium Copper / Gold
- Flange - material/surface: Die Cast AL / Nickel
- Dielectric - material: PTFE polytetrafluoroethylene
