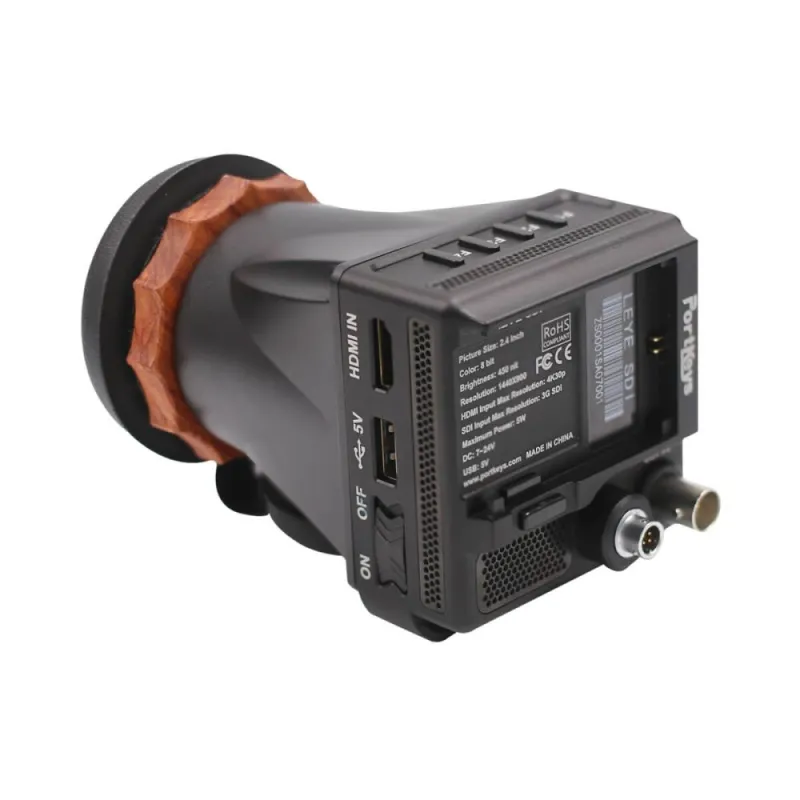

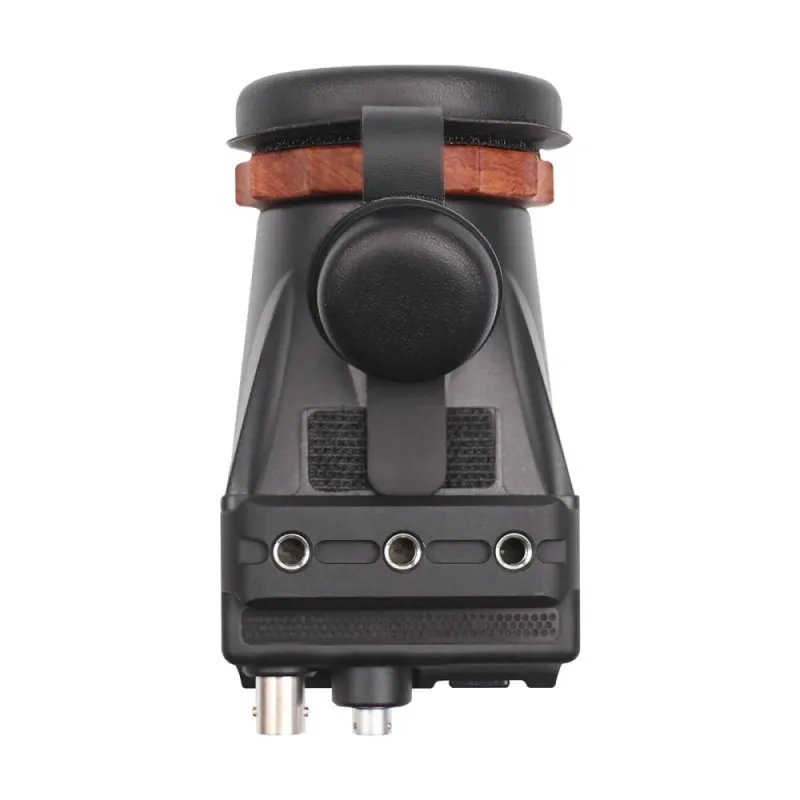

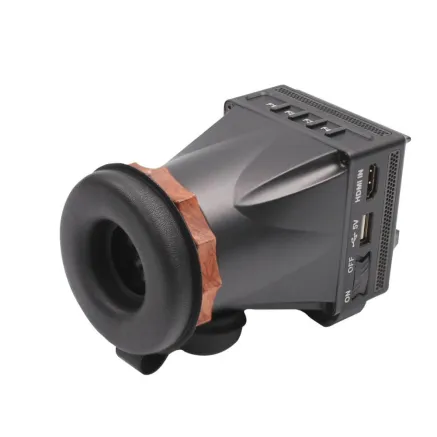

Portkeys LEYE SDI Electronic Viewfinder

Portkeys LEYE SDI Electronic Viewfinder

The Portkeys LEYE is a versatile Electronic Viewfinder that features both 4K HDMI and FullHD 1080p 3G-SDI video inputs, all in a compact and lightweight package that can be powered externally or via a single Canon LP-E6 battery. This EVF features a 2.4″ LCD screen with a 1440 x 900 resolution, making it the perfect EVF for mirrorless cameras, while its SDI input makes it a versatile tool so that you can use it on a wide variety of other cameras.

• Compact size: 125x70x78 mm (4.92x2.75x3.07 in)
• Lightweight and rugged housing: only 265g (9.34 oz.)
• 2.4-inch, 8-bit panel with a 1440x900 resolution and 1100:1 contrast ratio.
• Maximum brightness of 450nits.
• 1x 4K HDMI input & 1x 3G-SDI input.
• Adjustable Red Oak diopter ring with a -3 to +8 diopter range.
• Professional monitoring tools: Waveform, 3D LUT, Histogram, Vectorscope, Peaking, False Color and more.
• Monitoring tools optional detect data before or after loading 3D LUT.
• Built-in Canon LP-E6 battery plate.
• 4-pin 7.4V-24V power input for external power (D-Tap cable included)
• Low power draw: only 5W.
• Multiple 1/4″-20 mounting points with locating pins and built-in NATO rail.

The Portkeys LEYE SDI is a lightweight, rugged, cost-effective, and future-proof electronic viewfinder that offers all the outstanding features you can expect from a professional EVF. With a weight of only 265g (9.34oz), this versatile EVF only adds little poundage to your camera rig. In the meantime, the bright 450nits 2.4″ display features a 1440x900 resolution, which allows you to immerse in your footage and frame your shots in a crisp and clear way, no matter the outside shooting conditions. The Portkeys LEYE SDI features one 4K HDMI input, perfect when you’re working with mirrorless/DSLR/cinema cameras that don’t have an SDI output. Furthermore, the 3G-SDI input ensures you can use the Portkeys LEYE SDI on an extensive range of cinema cameras with a rock-solid locking video connector.

In the Box
1x LEYE SDI
1x U Disk
1x D-TAP to 4-pin Aviation Power Cable
1x Warm Prompt Card
1x Round Eye Cushion
1x After-sales Service Card
1x HDMI Adaptor
