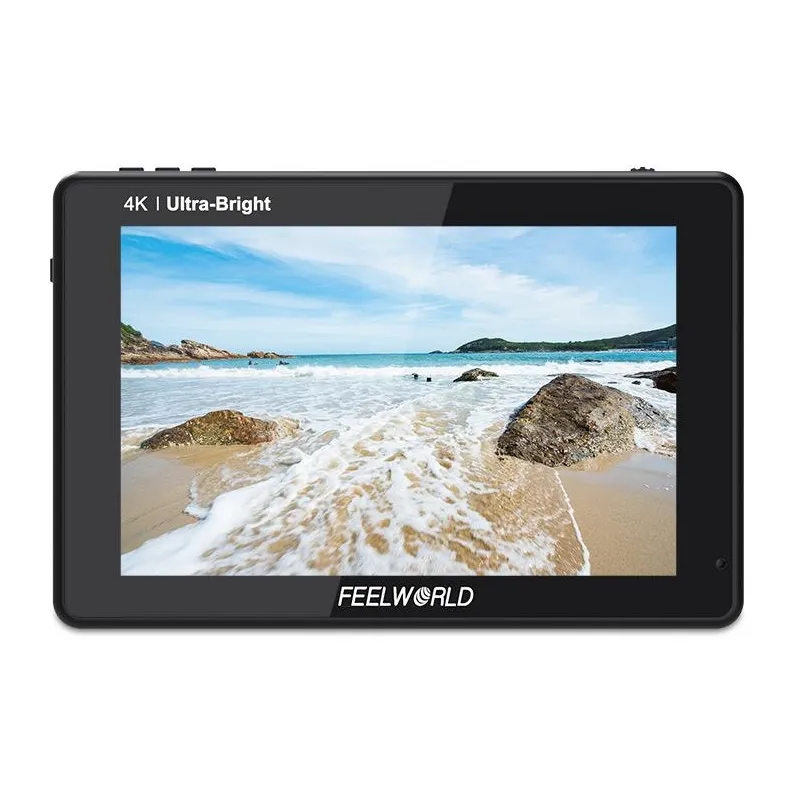

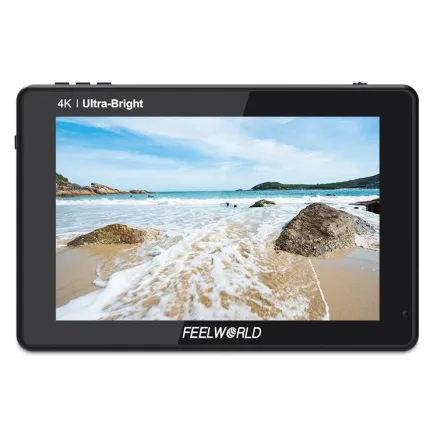

Feelworld LUT7S 7-inch 4K HDMI/SDI Monitor with Touchscreen
Produkto numeris: 53055
- 7" 1920 x 1200 IPS LCD Monitor
- HDMI and SDI Input/Output
- 2200 cd/m² Brightness, Touchscreen
- Inputs SD, HD, and DCI 4K Video
- Dual L-Series/NP-F Battery Plate
- 1200:1 Contrast Ratio, 3D LUT Support
- 160° Viewing Angle
| Type of Product | LCD Monitor |
Featuring a 323 PPI (pixels-per-inch) IPS LCD panel, the LUT7S 7" 4K HDMI and SDI Monitor from Feelworld displays SD, HD, UHD, and DCI 4K video. The LCD panel boasts a 1920 x 1200 resolution, 16:10 aspect ratio, 1200:1 contrast ratio, and a 2200 cd/m² measured brightness for easy viewing outdoors as well as indoors. The touchscreen allows you to quickly access your settings, and the IPS LCD provides good off-axis viewing, allowing you to see the image without being directly in front of the monitor and not experiencing distorted colors or contrast. The monitor's chassis is both thin and light at about an inch thick and weighing only 1 lb.
On one side of the monitor, you'll find HDMI and SDI input and output connectors, and on the other side a 3.5mm headphone output, a 12 VDC 2.1mm barrel power input (with optional power adapter), and an 8.4 VDC 2.1mm barrel power output to power an optional accessory or your camera using a separately available cable or dummy battery. Along the bottom edge is the 1/4"-20 mounting thread, and the control buttons reside along the top edge of the monitor. The back of the monitor features a dual L-series/NP-F battery plate to provide ample power.
The LUT7S supports custom 3D LUTs to accurately view the camera color on screen, and it supports professional Rec.709 color calibration technology. A variety of image-evaluating tools are built into the monitor including a histogram, false color, and zebras for checking exposure, peaking and magnification for checking focus, and markers for ensuring correct framing.
Key Features
- High-resolution 1920 x 1200
- High-contrast of 1200:1
- Ultrabright 2200 cd/m²
- 160° wide-view-angle IPS Panel
- Histogram
- Peaking focus assist (red, green, or blue highlight over parts of the image in focus)
- False color
- Zebra exposure
- Nine-grid
- Embedded audio
- Scan mode (underscan, overscan)
- Zoom (4x, 9x, 16x)
- Anamorphic mode (1.3x, 2x, 2x mag)
- Pixel-to-pixel
- Center marker
- Safe area (80, 85, 90, 93, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red, green, blue, mono)
- Image flip (H, V, H/V)
- Image freeze
- Color temperature adjustment
- Dual rear battery mount is compatible with Sony L-series/NP batteries: F-970, F-960, F-950, F-930, F-770, F-750, F-730, F-570, F-550, F-530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, F-M71, F-M70 series.
- Alternate power options include a 12 VDC 2.1mm barrel input (with a separately available adapter) and an 8.4 VDC 2.1mm barrel output to power your camera or accessories using an optional cable or dummy battery
- FEELWORLD uses the professional Rec.709 HD color standard and is calibrated at the factory. It can achieve monitor calibration efficiently and get accurate color reproductions easily, showing the image when you shoot without distorting the color.
- The menu controls are intuitive and easy to use with their touchscreen design. Two different feature buttons are programmable to the various features that you use the most.
- The compact design includes 4K HDMI and SDI input/output so you can connect them to 4K cameras and DSLRs. The HDMI connection is compatible up to 4K24p.
- Load custom 3D LUTs using the integrated SD card slot.
- Histogram is a quantitative tool to check the picture brightness.
- The audio level meters provide numerical indicators and headroom levels.
- The peaking filter displays a colored highlight on the screen where sharp edges appear.
- Built-in selection of no-squeeze, 1.3x, or 2x allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze.
