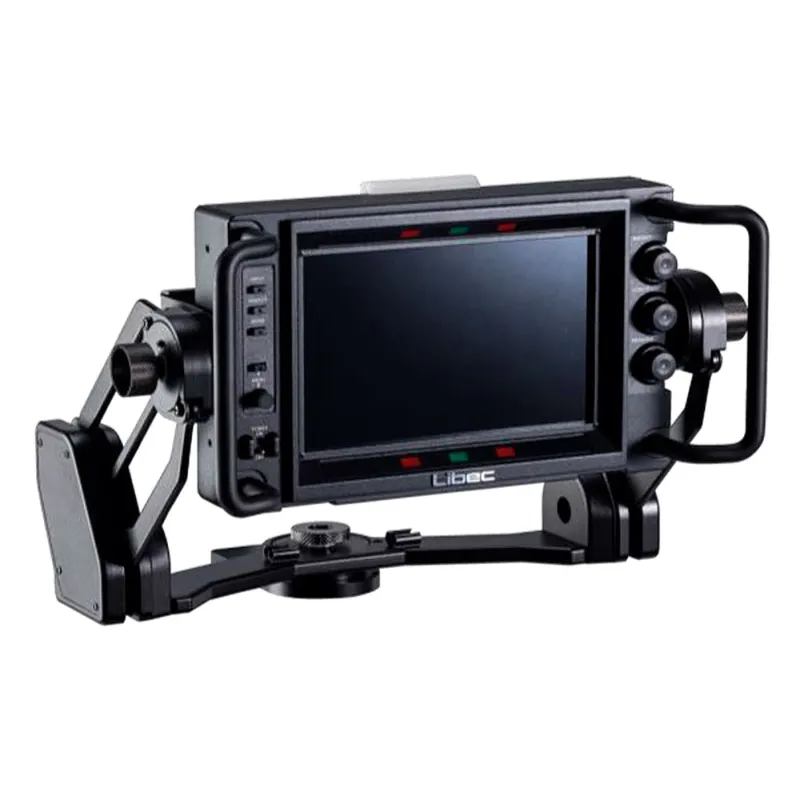

Libec SVF-7 Pro 7 FHD Studio Viewfinder SVF-7PRO

Full HD 7" viewfinder for studio cameras with 3G-SDI, HDMI, and analog HD terminals, and a lightweight as well as robust magnesium alloy body. (Connection cable and shoe attachment for cameras not included, please be sure to purchase either the CA-7S, the CA-7I, or the CA-7H).

SVF-7Pro is a high-quality viewfinder with a 1920 x 1080 Full HD TFT LCD panel that enables users to clearly view footage detail with a high brightness & contrast ratio, achieving vivid and excellent color gradation, plus a 170 degree wide view angle for clear images without a color and contrast shift.

Libec viewfinder provides multi-connectivity with 3G-SDI, HDMI, analog HD component and a lot more terminals as well as format compatibility. In addition, it allows return input and through output. The monitor further features large left and right grip handles to make positioning and adjusting its angle a piece of cake, even while cameras are on air, plus a a variety of optional shoe attachments for securely mounting Sony, Ikegami or Hitachi cameras. The Viewfinder comes with three tally indicators, two sets for the Front Tally (Green and Red), and one for the Rear Tally (Red). The brightness is adjustable. A waveform monitor, vector scope and other scopes can be easily displayed to monitor footage. The professional scopes allow to precisely adjust overexposure/underexposure, white balance and more on site. The center marker, the aspect marker, the safety zone marker and flexible area markers are all available. The markers help users frame the perfect video shot.

• 7-inch color TFT transmissive LCD
• Picture resolution: 1920 x 1080
• Brightness: 350 cd/㎡
• Viewing angle: 170°(H) / 170°(V)
• Color reproduction: 16.7M colors
• Display area: 151(H) x 85(V)mm
• 1x SDI input BNC
• 1x SDI output BNC
• 1x SDI return input BNC
• 1x HDMI input HDMI
• 1x HDMI output HDMI
• 1x Camera input 20-pin
• Analog HD component (YPbPr or RGB)
• 1x Tally1, BNC, Green (2V- 4V) / Red (4.1V- 5V) / OFF (0V- 2V)
• 1x Tally2, BNC, Red (ON / Short to GND) / OFF (Open)
• 2x Front tally, Green / Red Brightness adjustable in MENU
• 1x Rear tally, Red Brightness adjustable in MENU
• Weight: 1.2kg (without accessories)
• Size: 232 x 146 x 47mm (excluding protrusions)
• Power consumption: 12W
• Operating temperature: 0°C to +40°C
• Operating humidity: 30% to 85%
• Storage temperature: -10°C to +45°C
• Storage humidity: 0% to 90%
• Standards: 1080p (59.94 / 50 / 29.97 / 25 / 24 / 23.98), 1080i (59.94 / 50), 1080PsF (29.97 / 25 / 24 / 23.98), 720p (59.94 / 50)
