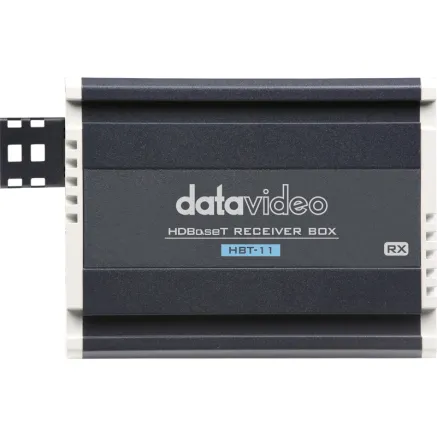

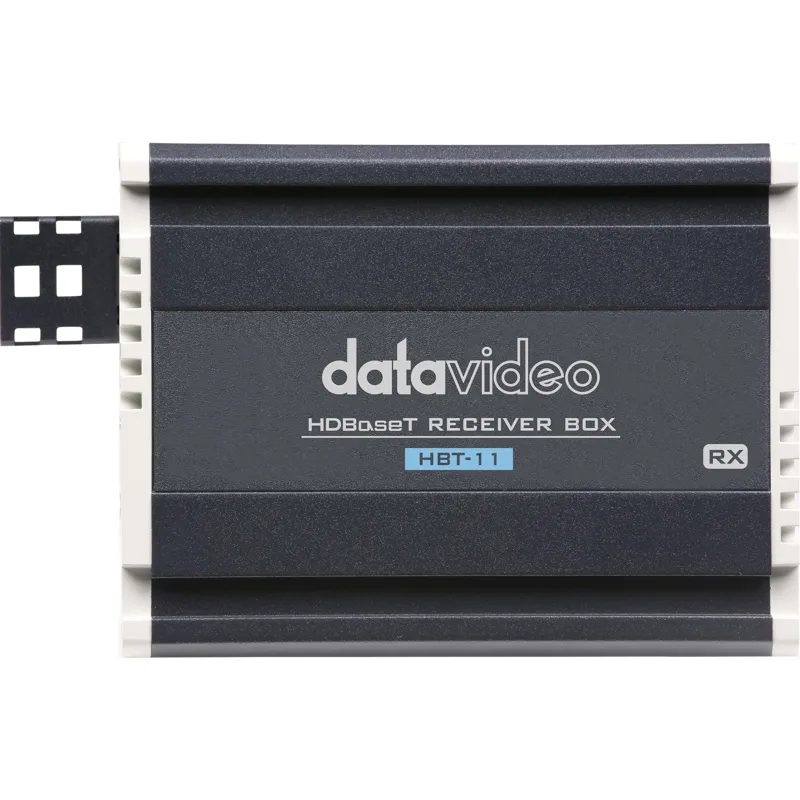

HBT-11 supports HDMI as signal output to transmit HDMI video, DVIP control signals and Power over Ethernet (PoE) between the transmitter and the receiver.
Single cable transmission by HDBaseT technology, up to 100m
Transmit video, audio, DVIP Ethernet control, RS-422/232 and POE from a single Cat.5e/6/6a/7 cable. The HBT-11 provides a maximum video transmission distance of 100 meters in Full HD Mode.
4K Transmission
Transmit up to 4K video from HBT-10 Transmitter to HBT-11 Receiver.
Supports DVIP/RS-422/232 Control Protocol
The HBT-11 supports protocol enabling to be controlled via RS-422/232 or DVIP interface.
Specifications

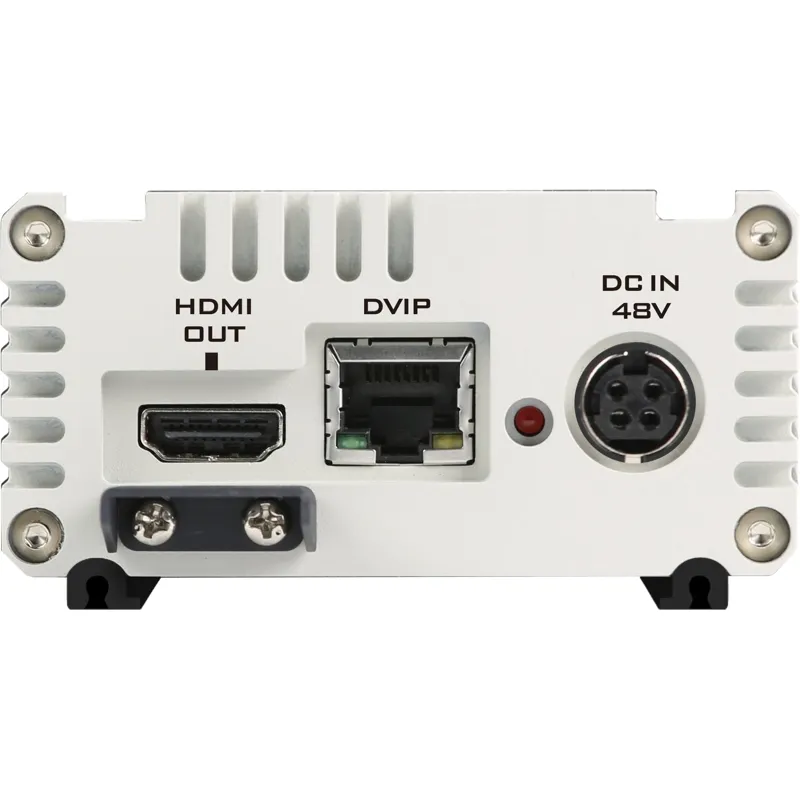

- Video/Audio Input: HDBaseT RJ-45 x1
- Video/Audio Output: HDMI x1
- DVIP: RJ-45 x1 (input)
- RS-422/ RS-232: Phoenix terminal. Pitch 3.50mm
- Power: DC IN: DC 48V
- HDBaseT Distance: Up to 100m by Cat.6 cable
- Operating Temp. Range: 0~40 °C
**In the Box **
- HBT-11 main unit
- AC cord
- DC 48V power adaptor
- Phoenix connector to RJ-45
