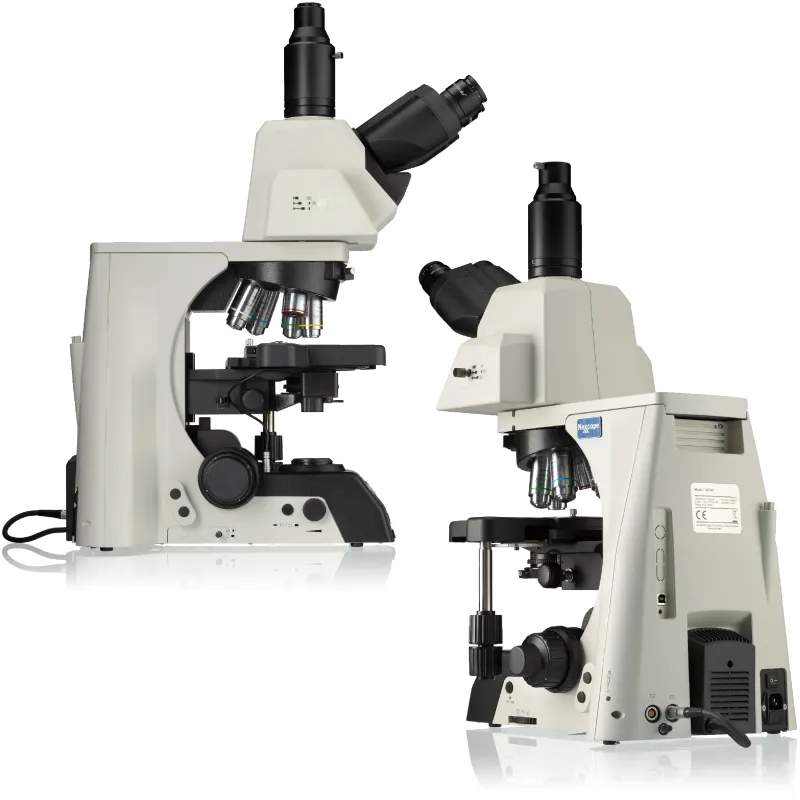

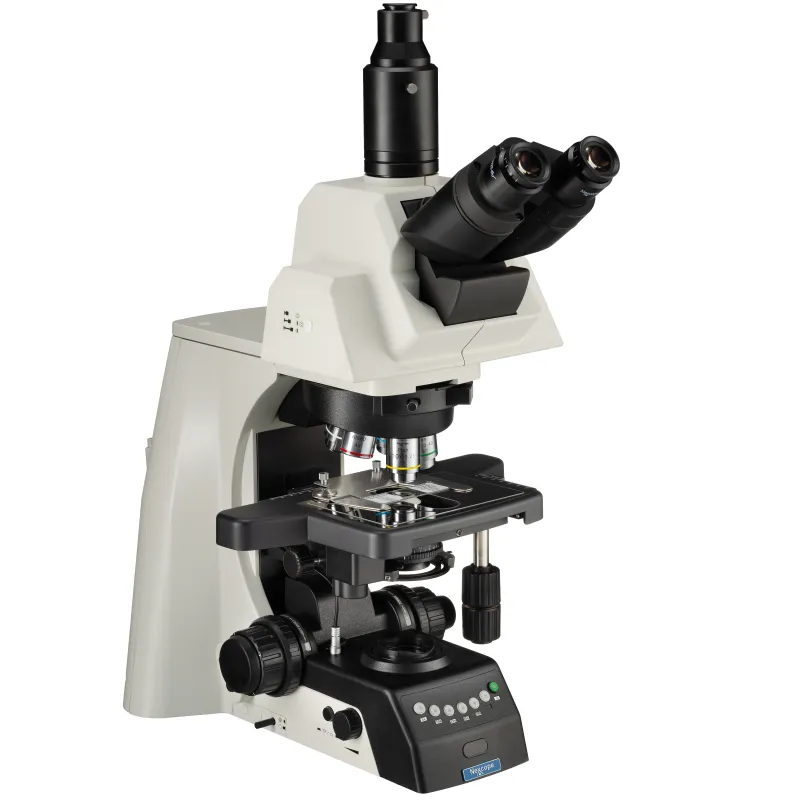

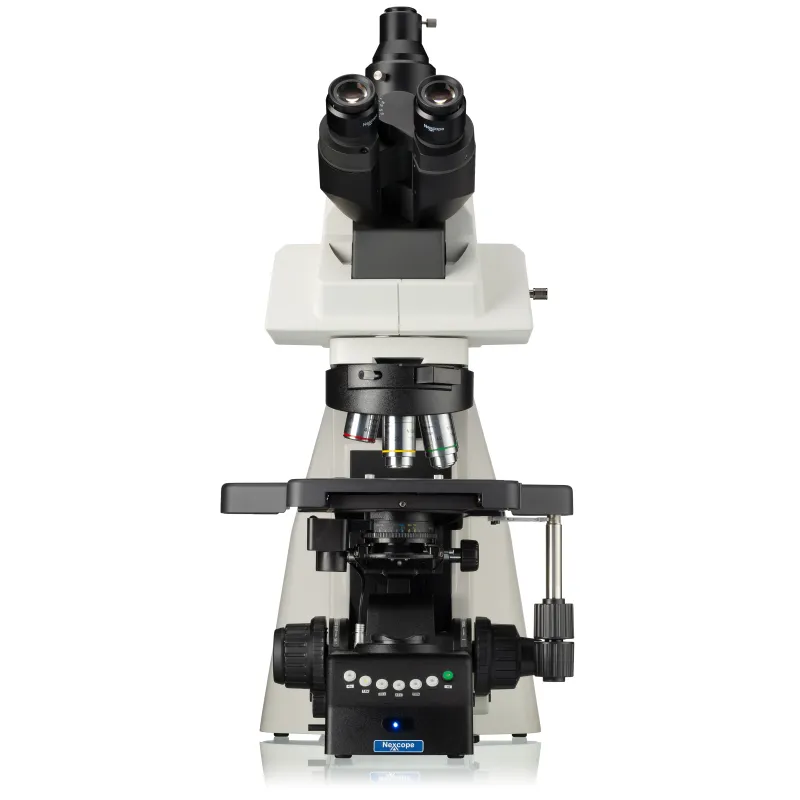

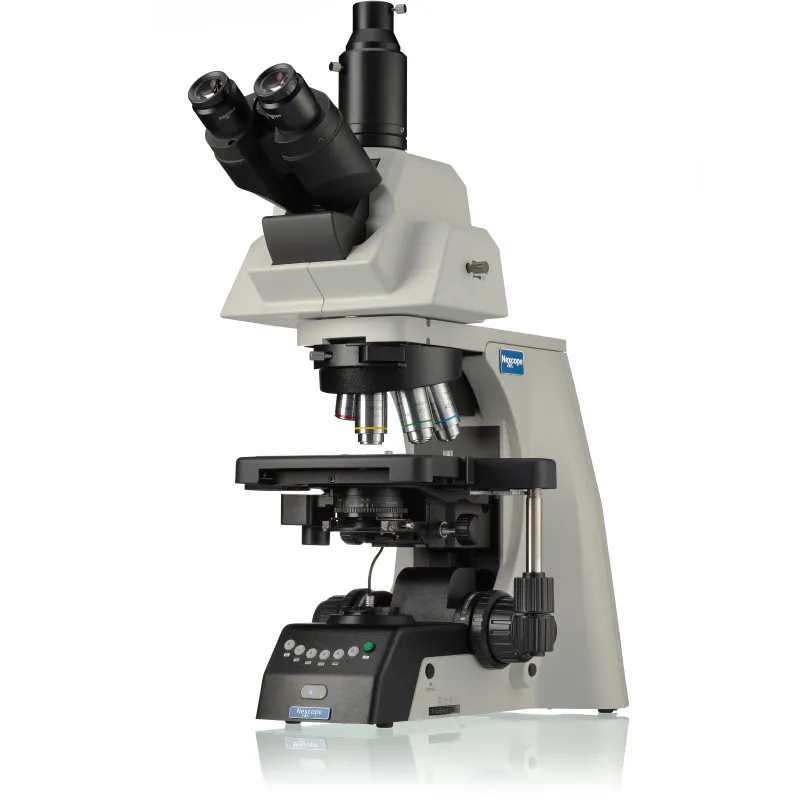

Bresser Nexcope NE930 Upright Microscope
Produkto numeris: 48147
Pagal išankstinį užsakymą, pristatymo terminas nežinomas
- Professional, automated laboratory microscope
- Eyepieces with very large field of view (25 mm)
- Ergonomic tiltable eyepiece head (0° - 35°)
- Motorised lens revolver and condensor
- Planachromatic lenses (4x, 10x, 20x, 40x, 100x oil)
LENSES
The panchromatic lenses ensure a flat field of view.
The backwards-tilted, motorized 6x nosepiece is equipped with high-quality infinity lenses (4x, 10x, 20x, 40x, 100x oil). These feature an M25 thread and a parfocal length of 60 mm. The 40x and 100x lens has a spring-loaded protection mechanism.
EYEPIECES

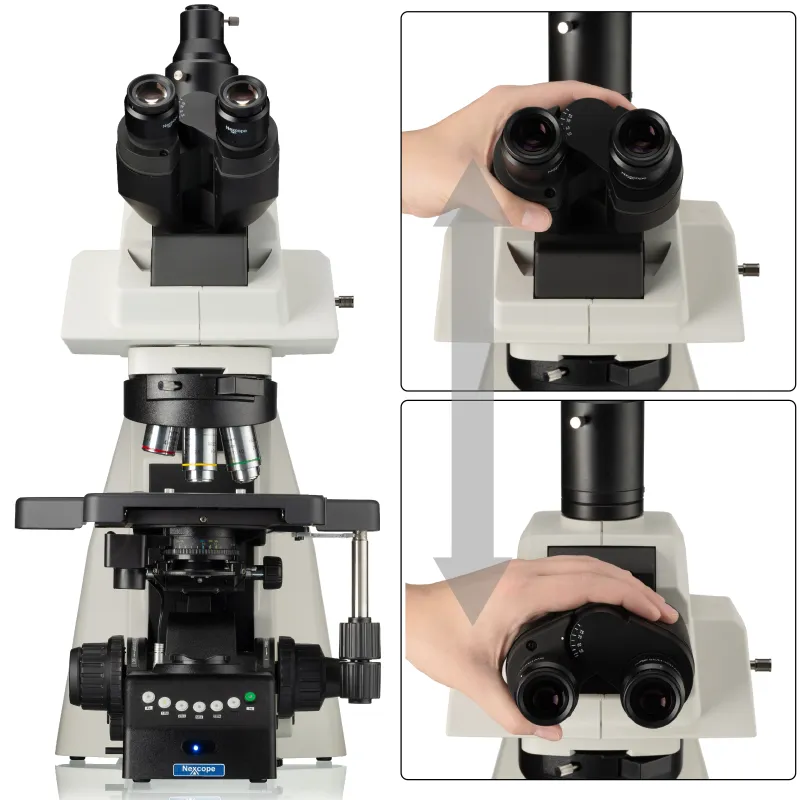

The ergonomic eyepiece head can be tilted between 0° and 35°. This allows the microscope to be adjusted to the user’s seating position. The eyepieces’ large 25 mm field of view allows you to view a very wide area. The high eyepiece head is ideal for spectacle wearers. A rubber edge provides protection upon eye contact. A dioptre compensation of -5 to +5 can be set individually for each eyepiece. The interpupillary distance can be adjusted between 47 mm and 78 mm.
ILLUMINATION
The powerful 3 W LED has an adjustable brightness and provides optimal illumination. The brightness can be adjusted individually and saved for each lens. The swing-top condensor is automatically adjusted to the selected lens.
MECHANICS + AUTOMATION
The large XY stage features a robust, chemical-resistant insert made from Gorilla Glass and is moved via a combination of a toothed rack drive and a wire rope hoist. This enables exact positioning for high magnifications. The height of the control knobs can be adjusted to ensure an ergonomic setup. The tension can also be adjusted. Specimens can be conveniently changed with one hand .
In addition to the coarse focus, the fine focus helps to render a very sharp image of the object. A full turn of the fine focus moves the table by 0.2 mm. The fine focus can be adjusted with one finger on the right-hand side. The table height limit helps to protect the specimens. The friction of the coarse focus can also be adjusted.
The fine focus knobs are held in place magnetically and can be replaced as needed.
The lenses are switched via a motor at the touch of a button. The next lens can be moved via a selection switch, or a specific lens can be selected on the front panel. The illumination and the position of the condensor is automatically adjusted to the selected lens. These features ensure ergonomic, fatigue-free and efficient performance. The exact reproducibility of the settings also offers advantages for photomicrography, as the images do not need to be recalibrated / flats do not need to be reproduced each time the lens is changed.
CAMERA CONNECTION
The NEXCOPE NE930 is specially designed for use with C-mount cameras . You can choose from two different adapters, depending on the sensor size and desired field of view:
- 0.5x c-mount adapter for sensor sizes up to 2/3’’
- 1x c-mount adapter for sensor sizes of 1’’
As the adapter can be adjusted, the camera image can always be exactly matched parfocally to the eyepieces.
ACCESSORIES (optional)
- Dark field condenser (dry or oil)
- Phase contrast
- Differential interference contrast (DIC)
- Fluorescence
- Polarisation
FEATURES
- Professional, motorised transmitted light microscope
- Lens type: Planachromatic (60 mm parfocal length)
- Precise mechanics
- Outstanding expandability
- Bright LED illumination
WHAT’S INCLUDED
- Microscope stand with five planachromatic lenses (4x, 10x, 20x, 40x, 100x oil)
- One pair of 10x eyepieces (field of view: 25 mm, Plug-in diameter: 30 mm), diopter adjustment
- Dust protection cover
- Mains cable
