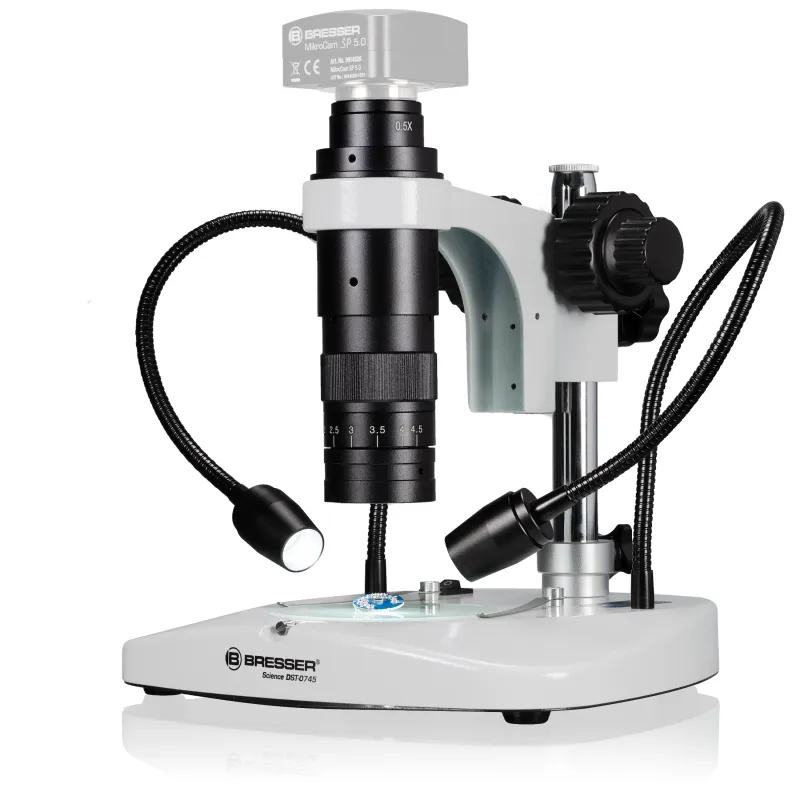

BRESSER DST-0745 Digital Microscope with C-Mount Camera Adapter
Produkto numeris: 47096
Pagal išankstinį užsakymą, pristatymo terminas nežinomas
- Professional workshop microscope with adaptable C-mount camera
- Continuous zoom: 0.7x - 4.5x
- Suitable for measurements and quality tests
- Coarse and fine focusing, 2 LED gooseneck lamps
- Incident- and transmitted light illumination
This allows direct viewing on a screen. Due to the vertically installed optics, there is no shifting of the image when focusing. This is especially useful for "focus stacking" shots.
The zoom is continuously adjustable from 0.7x - 4.5x. A coarse and fine focus adjustment facilitates focusing, especially at high magnifications.
The convenient and user-friendly operation makes the digital microscope particularly suitable for daily use in the workshop. Measurements, quality control of surfaces or inspection of components and raw materials are easy with the workshop microscope. Insects, plants and rocks are also impressively displayed.
The DST-0745 workshop microscope is not suitable for visual observation. It can only be used in combination with a MikroCam c-mount microscope camera.
It is designed for camera sensors of about 1/2" . Smaller sensors can be used without problems. With larger sensors there is vignetting, which becomes somewhat less at higher magnifications.
Due to the two flexible incident light lamps , the light can be optimally positioned.
The transmitted light illumination helps when observing transparent objects. The brightness of both illuminators can be adjusted in five steps.
The magnification of a USB camera differs from the magnification of the lens. It depends, among other things, on the sensor size and the display on a monitor. It can be compared to macro lenses with macro factor 0.7:1 up to 4.5:1.
Compatible MikroCam cameras:
- 5914131 MikroCam SP 1.3 MP
- 5914320 MikroCam SP 3.1 MP
- 5914520 MikroCam SP 5.0 MP
- 5914004 MicroCamII
- 5914020 MicroCamII
- 5914310 MicroCamII
- 5914912 MicroCamII
- 5914180 MikroCam PRO HDMI
- 5914190 MikroCam PRO HDMI 5MP
- 5914195 MikroCam Pro HDMI Autofocus
FEATURES:
- Designed for C-mount microscope cameras
- Up to 1/2" sea sensor size
- Continuous zoom (0.7x - 4.5x)
- Two flexible incident light LED lamps
- LED transmitted light illumination
- Adjustable brightness

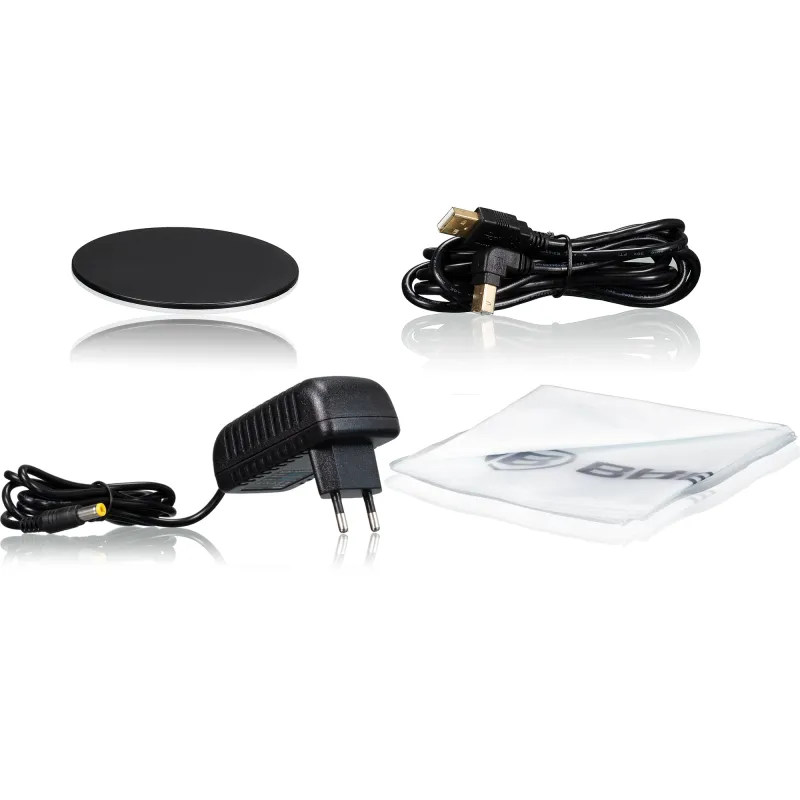

SCOPE OF DELIVERY:
- Zoom lens head 0.7x - 4.5x
- Stand with incident and transmitted light illumination
- Object plate glass (one side frosted)
- Object plate plastic (one side white, one side black)
- Power supply unit, operating instructions, dust cover
