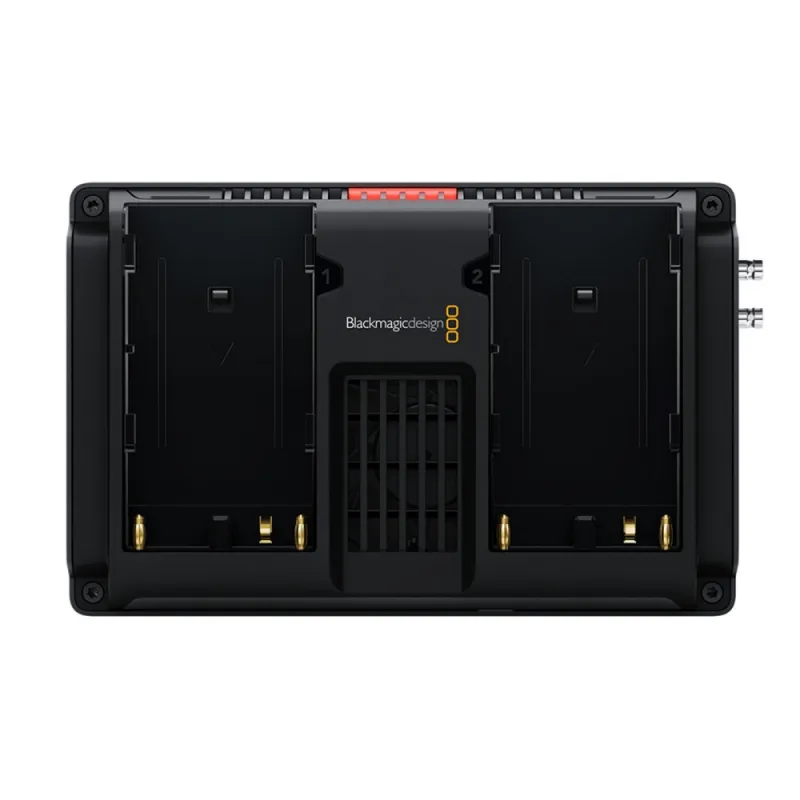

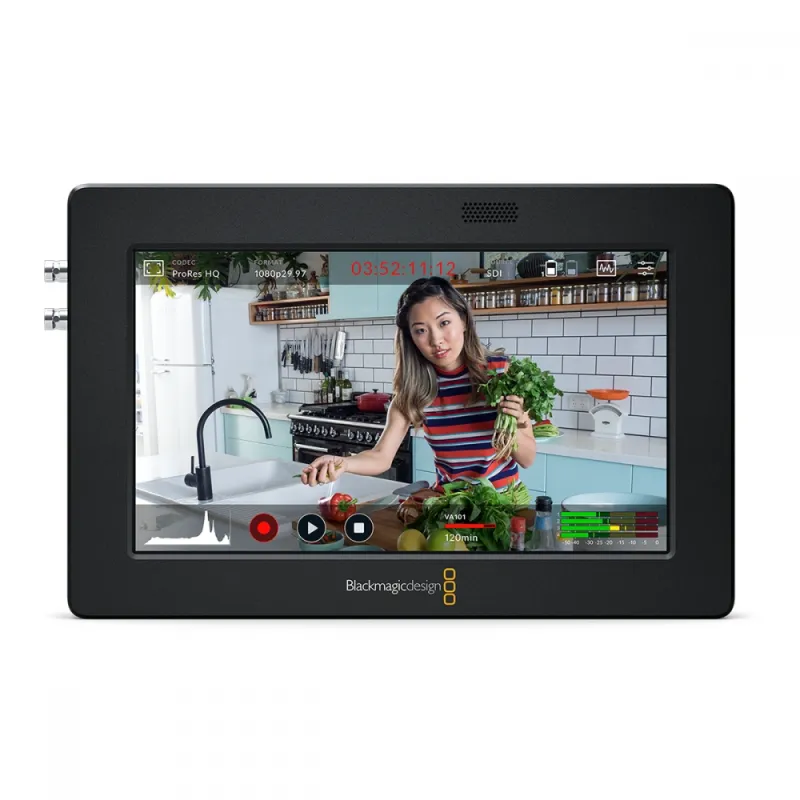

Blackmagic Design Blackmagic Video Assist 5" 3G
Pagal išankstinį užsakymą, pristatymo terminas nežinomas
| Type of Product | LCD Monitor |
| LCD monitors | monitor mount |
| Connector | HDMI |
| Connector | SDI |

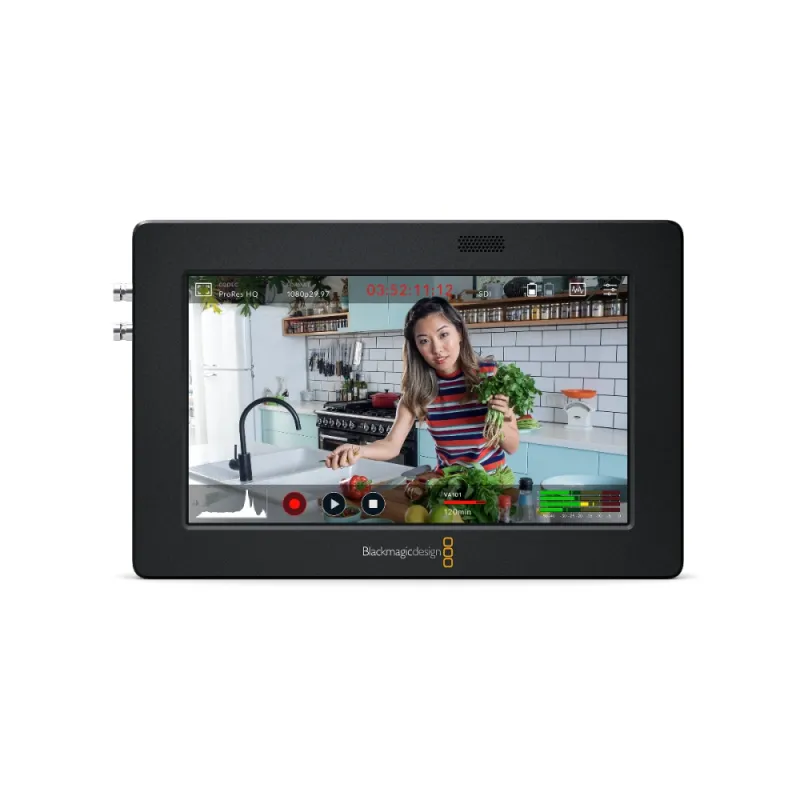

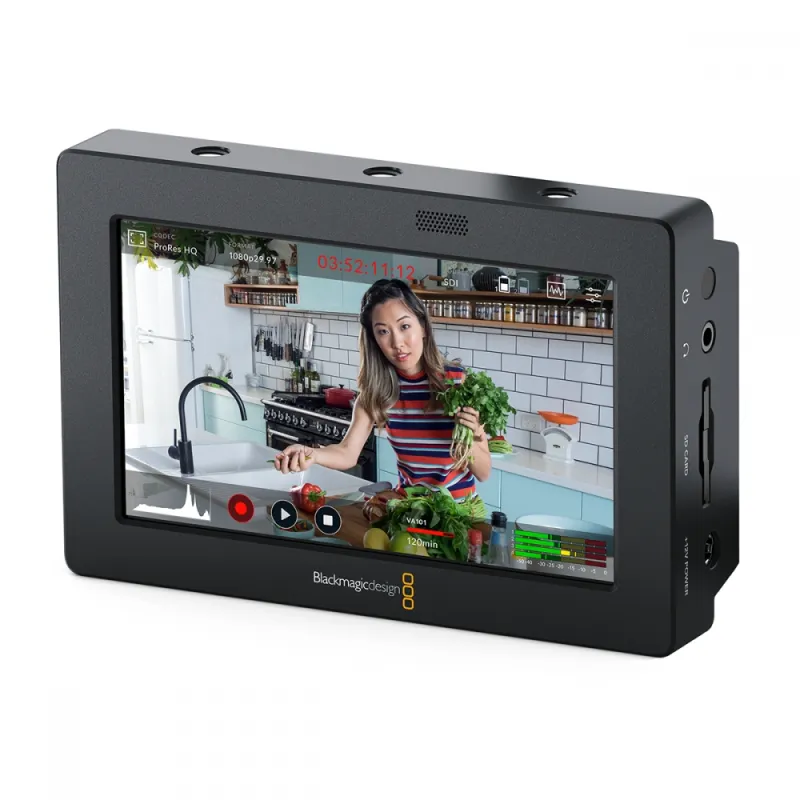

Blackmagic Video Assist 5" 3G (BM-HYPERD/AVIDA03/5)

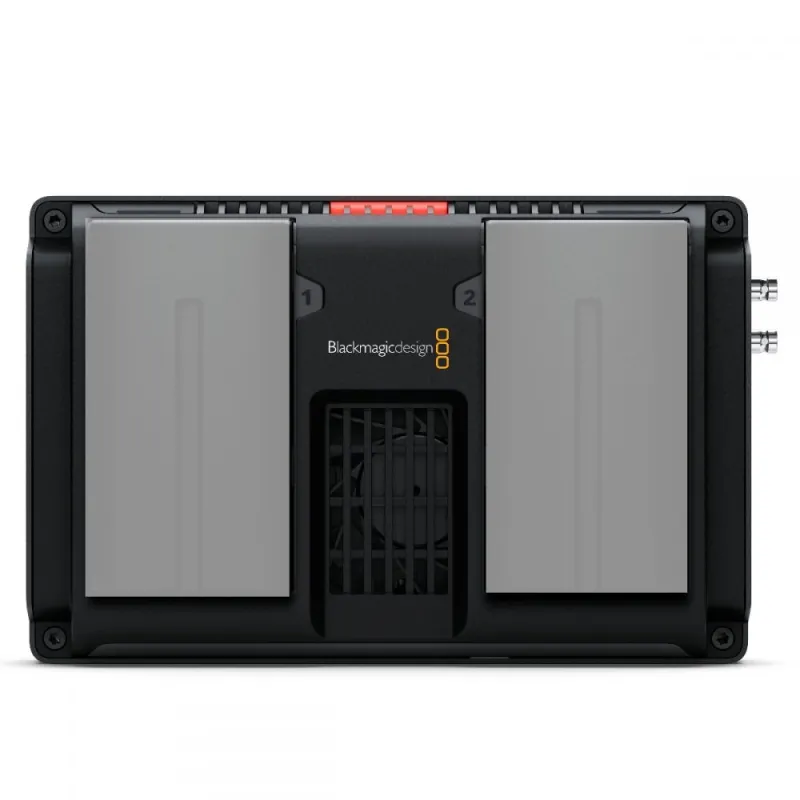

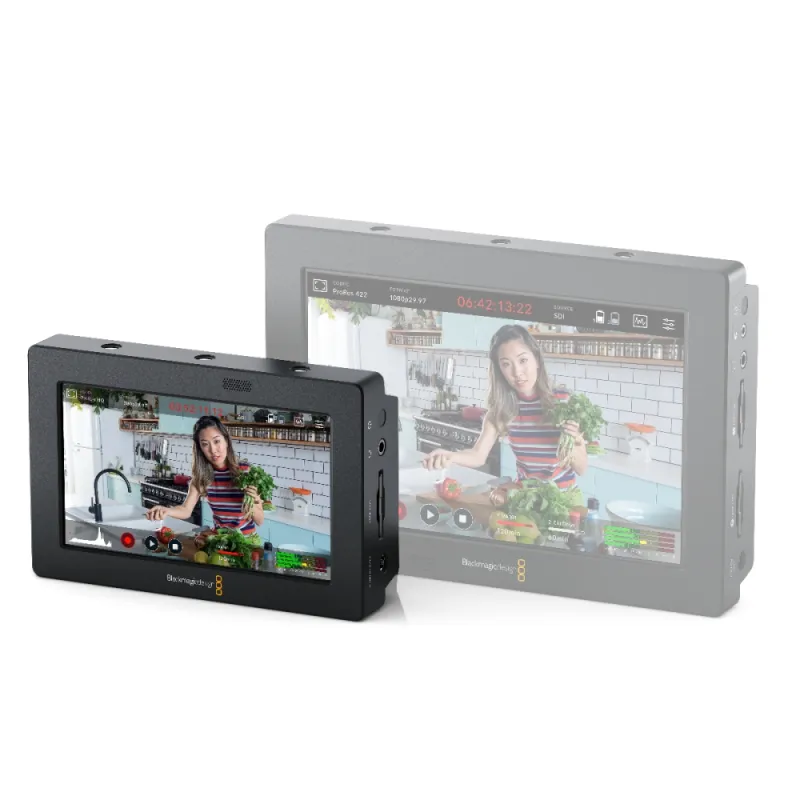

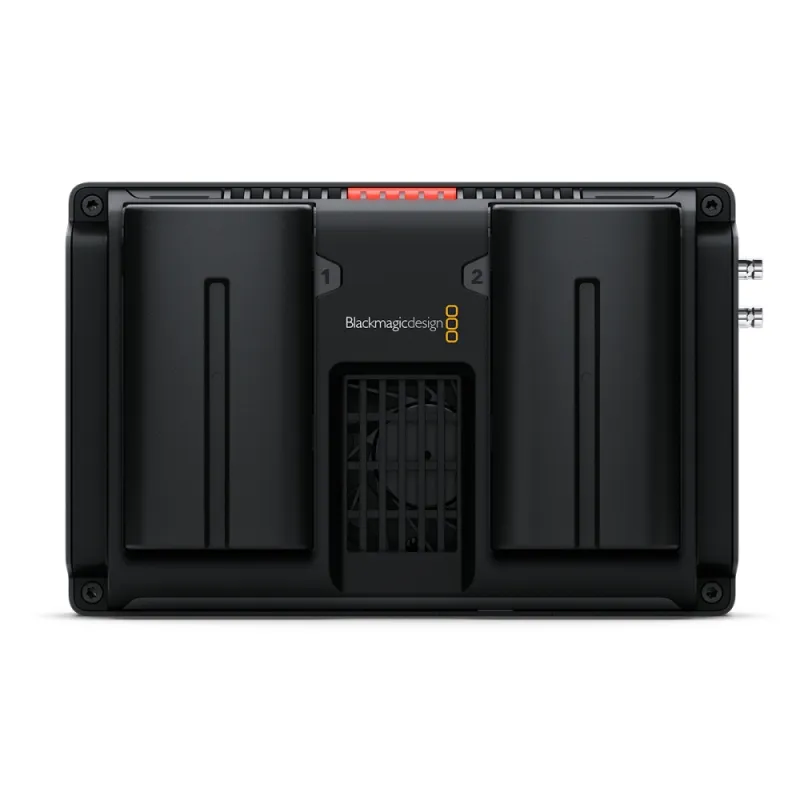

Blackmagic Video Assist 5”3G is a portable monitor, aprofessional recorder,aportable scope and afantastic camera viewfinder solution! Youcan also addbetter quality record codecs and alarger monitor to any SDI or HDMI camera!Thenew design has innovations such as 4 built in scopes, enhanced focus assistfeatures, atally indicator and built in 3D LUTs. The Video Assist 5”3G supportformats up to 1080p60 and the new design also has L-Series batteries for longerlife. Blackmagic Video Assist 5”3G really is 4 products inone!
Delivery Content
• Blackmagic Video Assist 5” 3G
• Universal power supply with internationaladapters
Specifications
- SDI SD Video Standards
- 525i59.94 NTSC, 625i50 PAL
- SDI HD Video Standards
- 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25,1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- SDI Compliance
- SMPTE259M, SMPTE292M,SMPTE296M, SMPTE425M
- SDI Metadata Support
- HD RP188
- Audio Sampling
- Television standard sample rate of48kHz and 24-bit.
- Video Sampling
- 4:2:2 YUVColor Precision10-bit
- Color Space
- REC601, REC709
- Multiple Rate Support
- SDI and HDMI switches between 270Mb/s, 1.5Gb/sand 3 Gb/s.
- HDMI SD Video Standards
- 525i59.94NTSC, 625i50PAL
- HDMI HD Video Standards
- 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25,1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- HDMI Color Precision
- 10-bit
- Copy Protection
- HDMI input is unable to capture fromcopy protected HDMI sources. Alwaysconfirm copyright ownership beforecapture or distribution of content.
- Media
- 1 x UHS-I SD for HD recording (SDXC UHS-I and SDHC UHS-I SD cards)
- Supported codecs
- ProRes 422 HQ,ProRes 422,ProRes422 LT,ProRes 422 Proxy,DNxHD220x,DNxHD, 145,DNxHD 45,DNxHD220x MXF,DNxHD 145 MXF,DNxHD45 MXF.

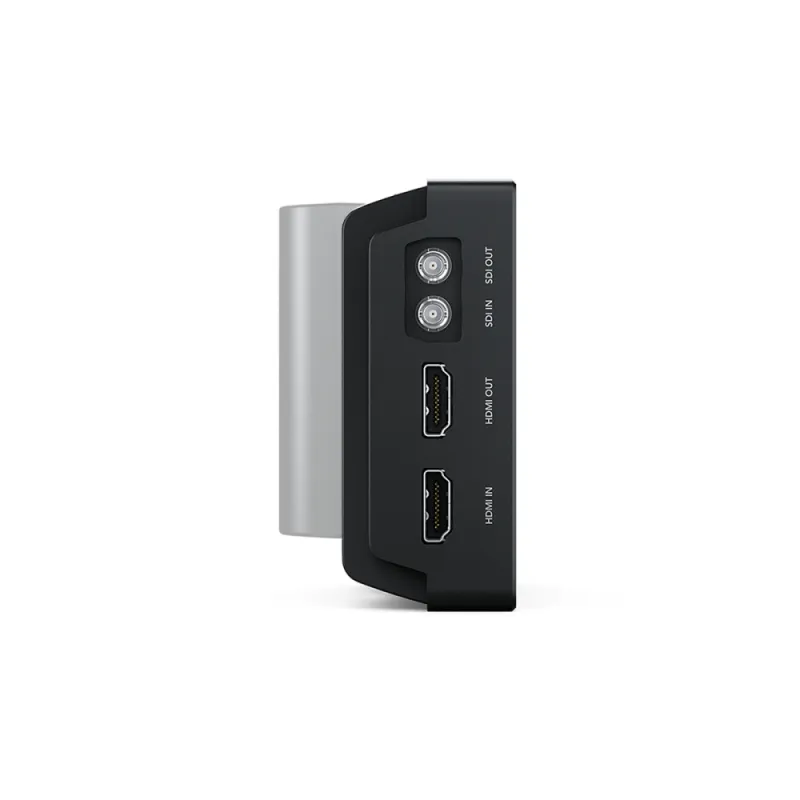

- SDI Video Inputs
- 1 x Micro BNC
- SDI Video Outputs
- 1 x Micro BNC
- SDI Rates
- 270Mb, 1.5G,3G
- HDMI Video Inputs
- 1
- HDMI Video Outputs
- 1
- Analog Audio Inputs
- None, embedded audioonly.
- Analog Audio Outputs
- 1 x 3.5mm headphonejack.
- Built in Speaker
- Mono
- Screen Dimensions
- 5inch1920 x 1080.
- Screen Brightness
- 300nits
- SDI Audio Inputs
- 16 channels embedded via SDI
- SDI Audio Outputs
- 16 channels embedded via SDI
- HDMI Audio Inputs
- 8 channels embedded via HDMI
- HDMI Audio Outputs
- 8 channels embedded via HDMI
- Remote Control
- None

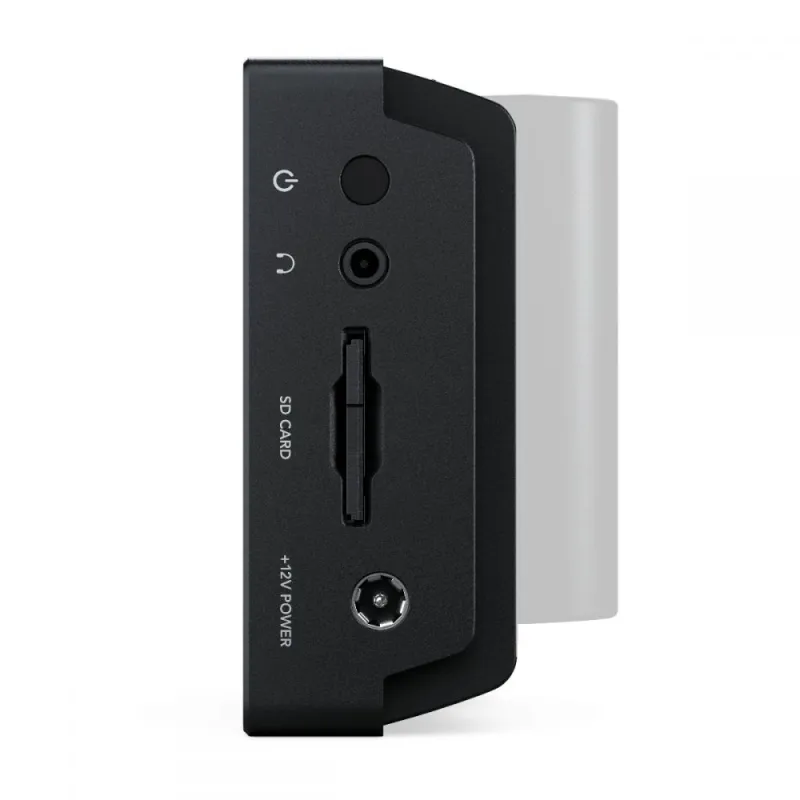

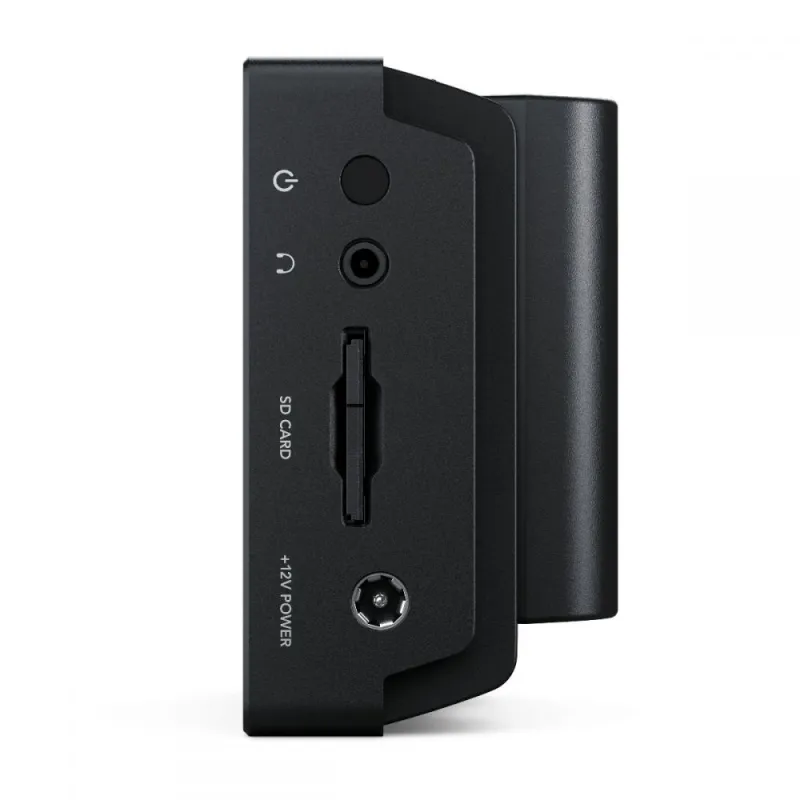

- SD Interface
- 1 x UHS-I SDslot.
- Storage Type
- SDXC UHS-I and SDHC UHS-ISDcards.Supports DS, HS, SDR12, SDR25,DDR50, SDR50 and SDR104 SDcards
- Computer Interface
- 1x USB Type‑C for initial setup, software updates and Video AssistUtility software control
- Recorder Control
- Integrated capacitive touchscreen LCD with Blackmagi cOS onscreen controls for settings and navigating menus.
- External Control
- SDI and HDMI start/stop,timecoderun
- Operating Temperature
- 0° to 40°C (32° to 104°F)
- Storage Temperature
- -20° to 45°C (-4° to 113°F)
- Relative Humidity
- 0% to 90% non-condensing
