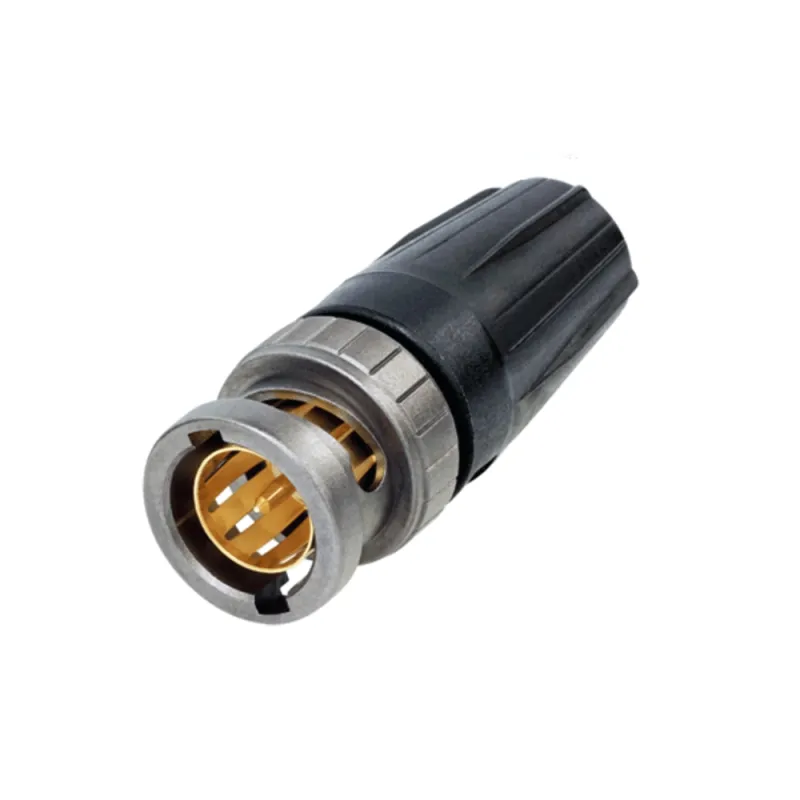

Neutrik NBNC75BFG7X rearTWIST UHD 12G-SDI BNC connector NBNC75BFG7X
Produkto numeris: 49074
Galima įsigyti iš tiekėjo: 20 prekės
| Type of Product | Cables |
| Connections | BNC to BNC |
| Color | Black |
Neutrik NBNC75BFG7X "rearTWIST" UHD 12G-SDI 4K 8K BNC connector
Suitable cable:
Canare L-2.5CHWS
The rearTWIST HD BNC cable connector offers a true 75Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cable:
Canare L-2.5CHWS
Crimp size:
Pin: 1.07 mm (square)
Shield: 5.00 mm (hex)
Features & Benefits
- “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 ? design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
Technical Information:
Product
- Title: NBNC75BFG7X
- Connection Type: BNC 75 Ω
- Gender: male
- Contact resistance: ≤ 3 mΩ
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 1,5 kVdc
- Impedance: 75 Ω
- Insulation resistance: > 5 GΩ
- Rated voltage: <50 V
- VSWR:
≤1.06 / >30 dB up to 6 GHz
≤1.13 / >24 dB up to 12 GHz
≤1.22 / >20 dB up to 18 Ghz
Mechanical
- Cable O.D.: 4.7 mm
- Cable retention: > 30 N (Center)
- Crimp size: 5,00 Hex crimp (shield)
- Crimp size (pin): 1,07 crimp
- Insertion force: < 25 N
- Lifetime: > 1000 mating cycles
- Locking device: Bayonett
- Cable anchoring: Jacket crimping
Material
- Contacts: Brass: (CuZn35Pb2), 0.2 µm AuCo (Center contact)
- Insert: PP
- Shell: Brass (CuZn39Pb3)
- Shell plating: Antraloy
Environmental
- Temperature range: -30 °C to +85 °C
- Contact crimpability: Complies with IEC 60803 and IEC 60352-2
