Canare BCP-A4F 75 Ohm BNC Male Crimp Connector CNRBCPA4F

Canare BCP-A4F

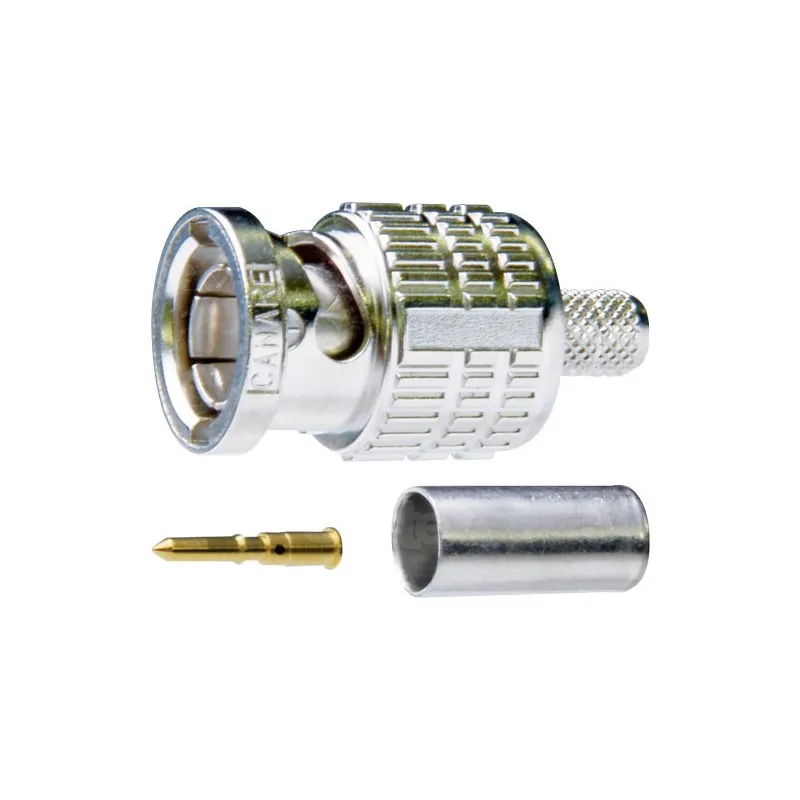

Canare BCP-A4F is a 75 ohm BNC (M) crimp connector (straight type) designed with an extended body for better handling.

Compatibility

Suitable for Canare installation cables:

• L-4CFB
• L-4CHD
• V*-4CFB

Also compatible with other manufacturers cables:

• 1505A
• 1505ANH
• 8212
• 8241F
• 9167
• 9259
• 9659
• VPM2000
• HD PRO 0.8/3.7 AF

Usage

• Compliant with SMPTE 424M & 292M specifications
• HDTV
• HD/SD-SDI video
• PAL & NTSC analog video
• Satellite applications
• TELCO
• Test equipment

Features

• True 75 ohm design with crimp pin and sleeve
• High power 1.1 or less VSWR (Voltage Standing Wave Ratio) up to 3GHz
• Extended body for better handling
• Position mark on the body allows for easy inspection of the connector
• Excellent cable grip
• Gold plated central pin
• Connector body is die-cast, achieving lower cost at high performance
• Easy assembly using the Canare crimp tool
