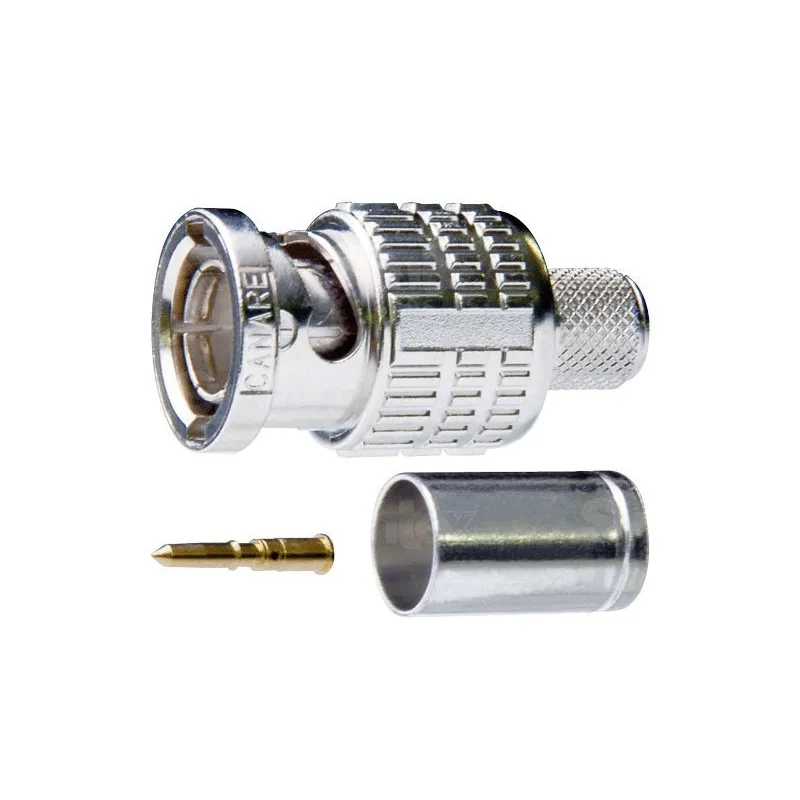

Canare BCP-B25HW True 75 Ohm BNC Connector Kit
Pristatymas per 5 - 7 dienas
75 ohm BNC Crimp Plugs (Straight Type).
| Type of Product | Cables |
| Connections | BNC to BNC |
Suitable for cable Canare L-2.5CHWS
- ● SMPTE 424M & 292M Compliant.
- ● Serial Digital Video.
- ● HDTV Upgrades.
- ● NTSC Analog.
- ● Test Equipment.
- ● Satellite Headends.
- ● TELCOM.
- ● True 75 ohm construction Crimp Pin & Sleeve.
- ● High performance of 1.1 or less VSWR up to 3GHz.
- ● Elongated Body for better finger grip.
- ● Position mark on body allows the connector fit to be checked easily.
- ● Superior cable pull strength.
- ● Gold plated center pins 'snap' into place.
- ● Connector Body has been die-cast, achieving a lower price with higher performance.
- ● Easy Assembly using Canare Strip & Crimp Tools.
