Canare BCP-B4F 75 Ohm BNC Crimp Connector - Extended
Pristatymas per 5 - 7 dienas
Canare BCP-B4F is a 75 ohm BNC (M) crimp connector (straight type).
| Type of Product | Cables |
| Type of Product | Wires, cables for video |
| Connections | BNC to BNC |

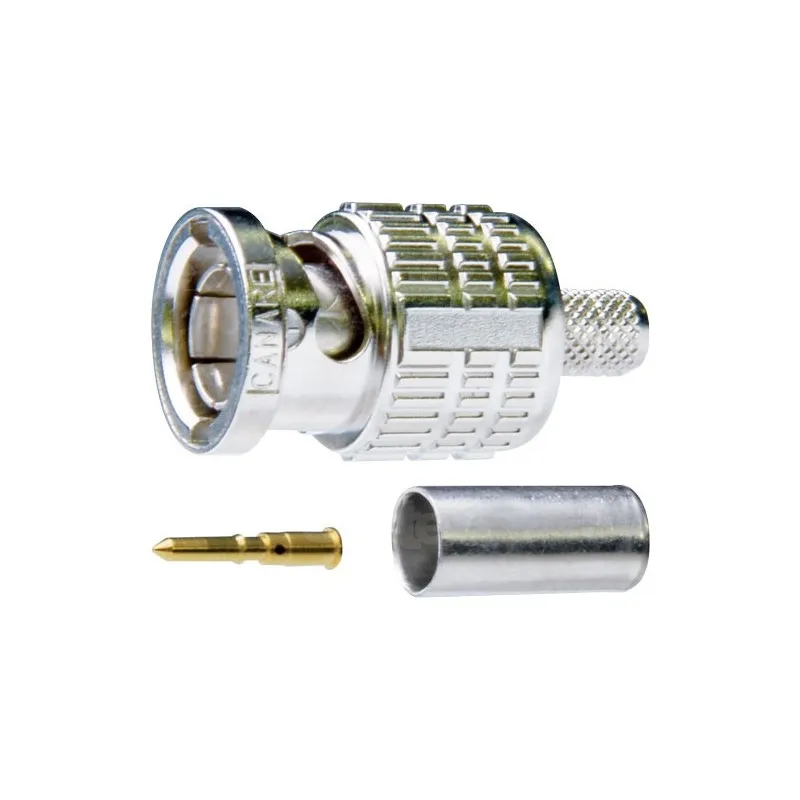

TheCanare BCP-B4F is a 75 ohm BNC (M) crimp connector (straight type) with an extended body for better handling.
Suitable for Canare installation cables : L-4CFB, L-4CHD, V*-4CFB
Suitable for other manufacturers' cables: 1505A, 1505ANH, VPM2000, HD PRO 0.8/3.7 AF
Usage:
- compliant with SMPTE 424M & 292M specification
- HDTV
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Features:
- True 75 ohm design with crimp pin and sleeve
- High power 1.1 or less VSWR (Voltage standing Wave Ratio) up to 3GHz.
- Extended body for better handling
- Position mark on the body allows the connector to be easily inspected.
- Excellent cable grip
- Gold plated central pin
- Connector body is "die-cast" - achieving lower cost at high performance
- Easy assembly using the Canare crimp tool
