Nauticam Underwater Housing for Canon EOS R5

Nauticam Underwater Housing for Canon EOS R5

The Canon EOS R5 is the latest in Canons full-frame mirrorless camera lineup, featuring a 45MP CMOS sensor, in-body image stabilization, and 8K video recording capabilities.

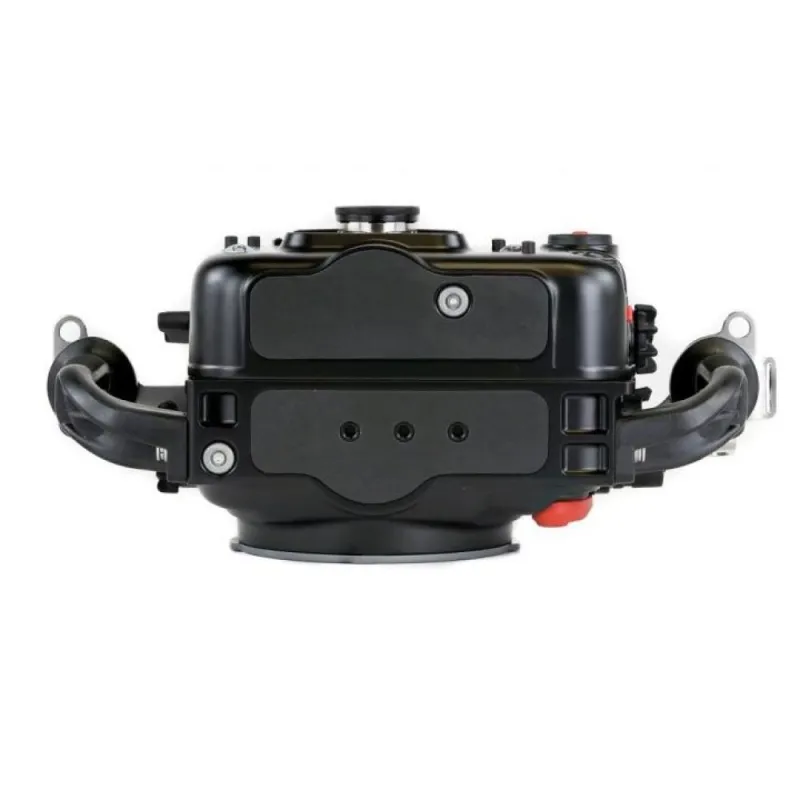

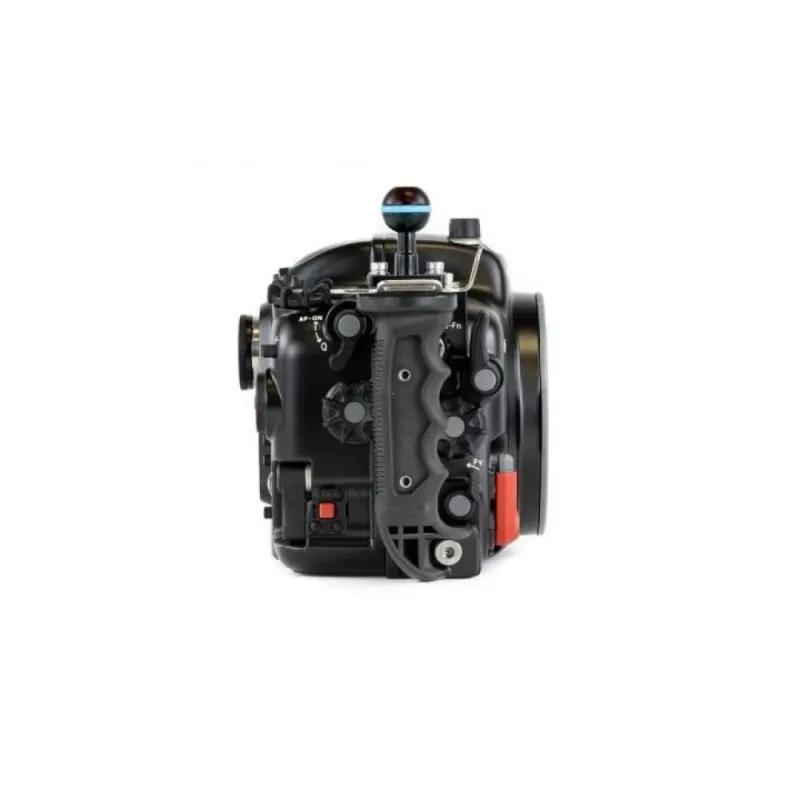

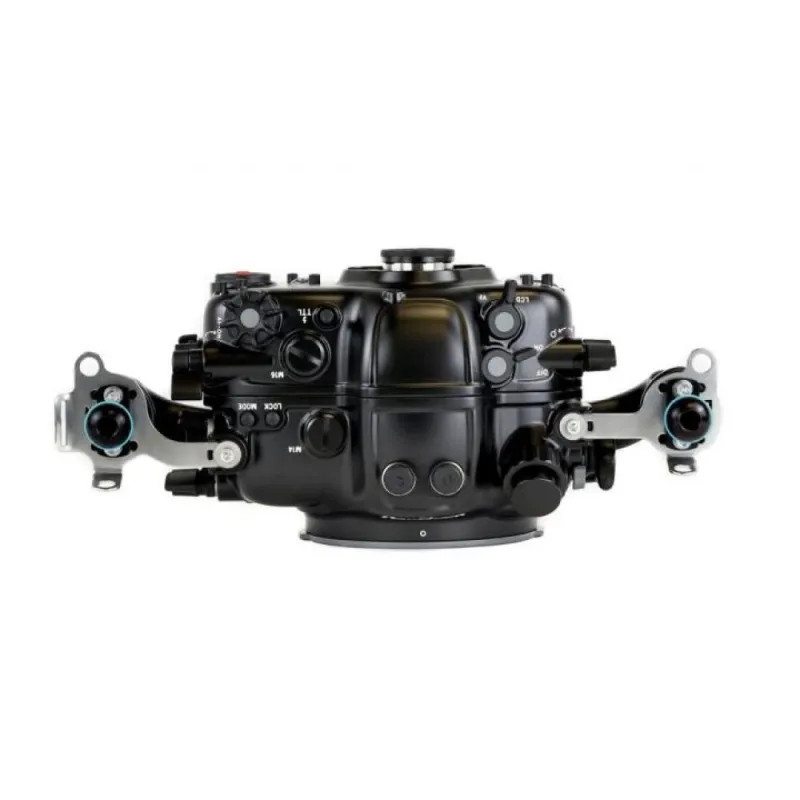

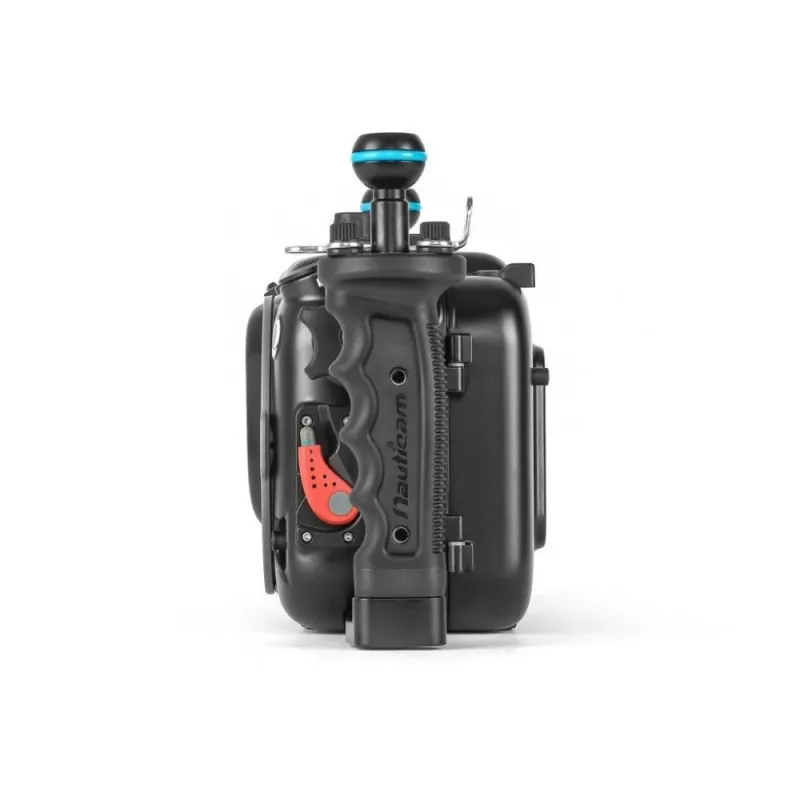

Nauticam NA-R5 Underwater Housing

The NA-R5 housing by Nauticam supports both EF and RF lenses, integrating into the N120 port system. It provides easy access to essential controls with ergonomic handles and features dedicated buttons for various functions.

Mission Control

The housing includes dual thumb levers, control dials, and a two-stage trigger for smooth focus and firing activation. It also has a control wheel for the EF to EOS R Mount Adapter with Control Ring.

Flash Triggering

Flash triggering options include manual LED trigger or TTL Flash Trigger using fiber-optic cables. Legacy hot-shoe flash control bulkheads are available for strobes that do not support fiber optic triggering.

Integrated Vacuum Check and Leak Detection System

The housing comes with a vacuum check and leak detection system, providing constant updates on its water-tight status. It is temperature compensated to prevent false alarms.

Technical Specifications

• Dimensions: 357mm x 200mm x 161mm (W x H x D)
• Depth Rating: 100m
• Weight in air: 3.5kg
• Weight in water: -0.05kg (includes camera and battery)
• Port Opening: N120

Delivery Content

• Canon EOS R5 Underwater Housing by Nauticam
• Spare main o-ring, lubricant, and removal tool
• 2x Optical bulkhead caps
• 2x Handles with mounting balls
• Set of allen keys
• CR2032 battery for leak detector
• Padded housing bag and shoulder strap

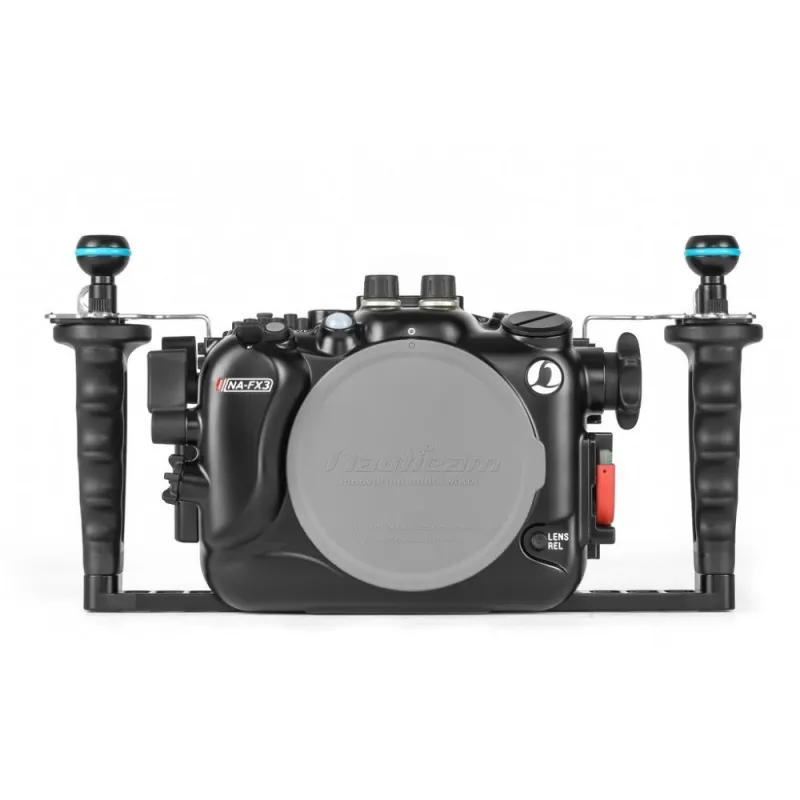

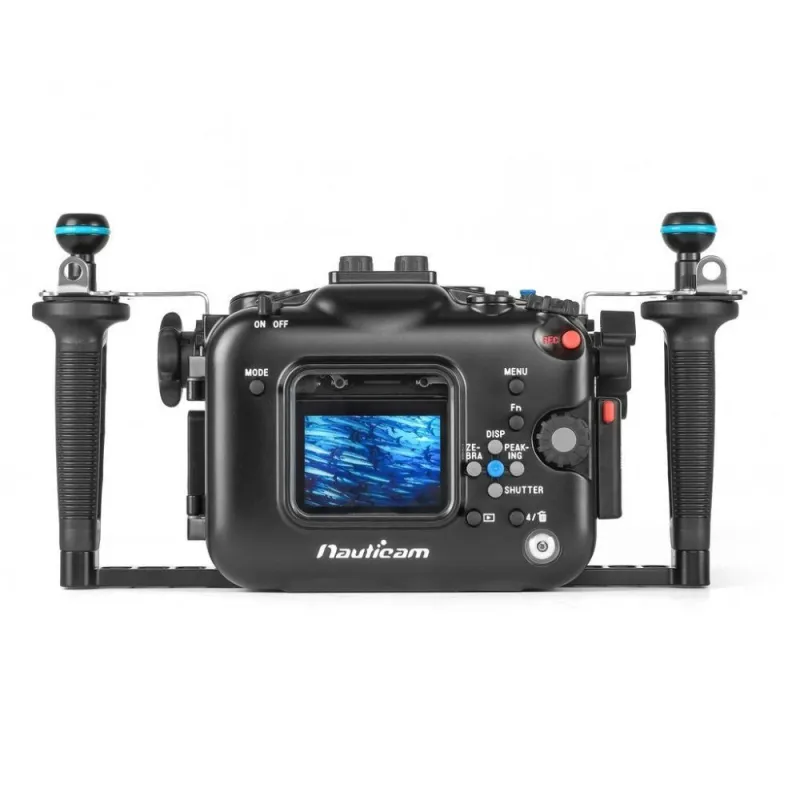

Accessories shown in images are for demonstration purposes only. The purchase of the housing does not include a camera, port, or external viewfinder. Contact us for any system configuration inquiries.
