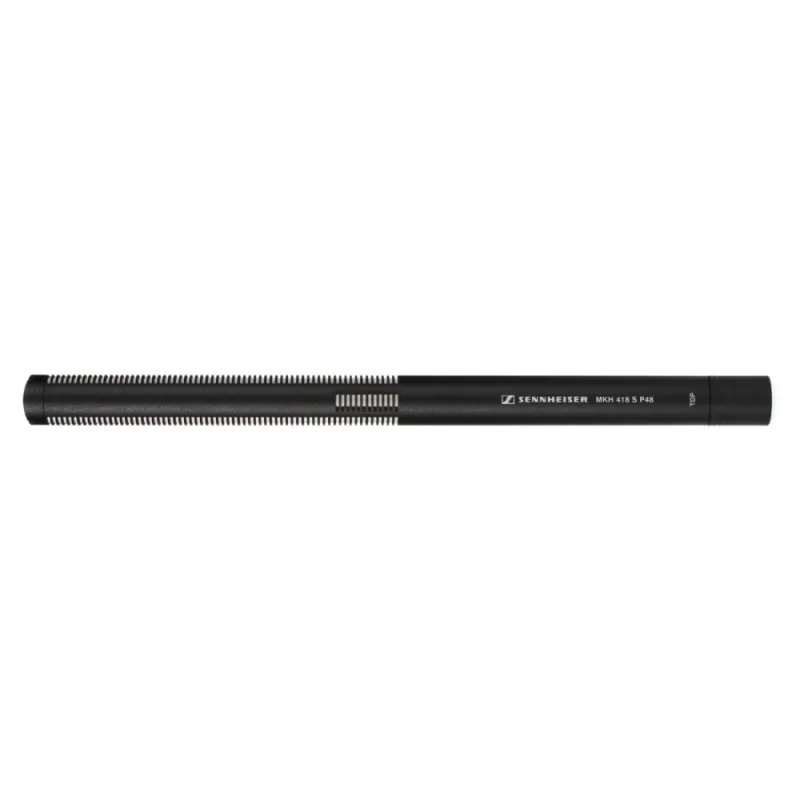

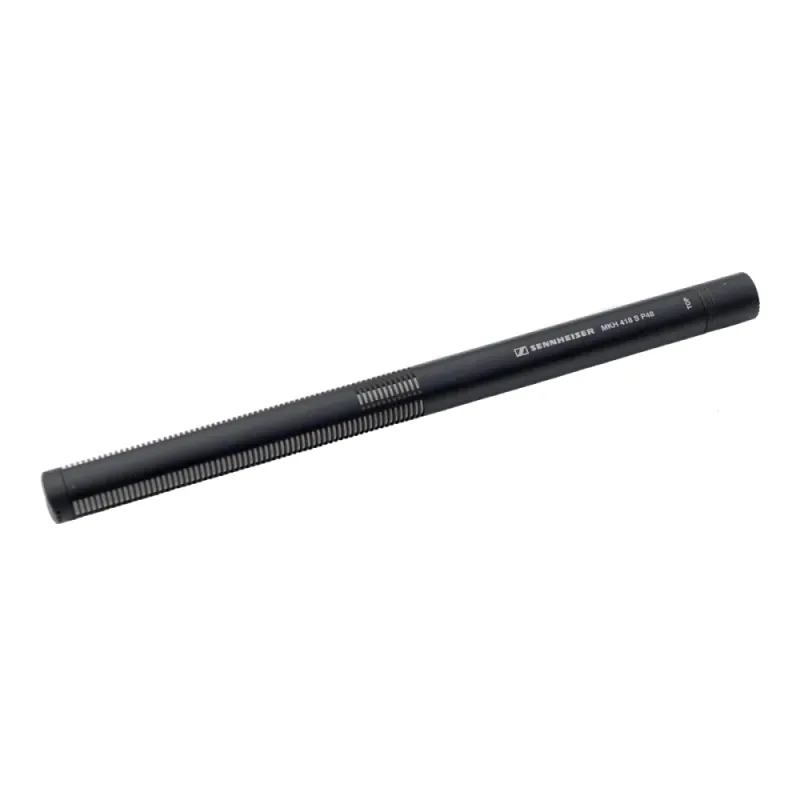

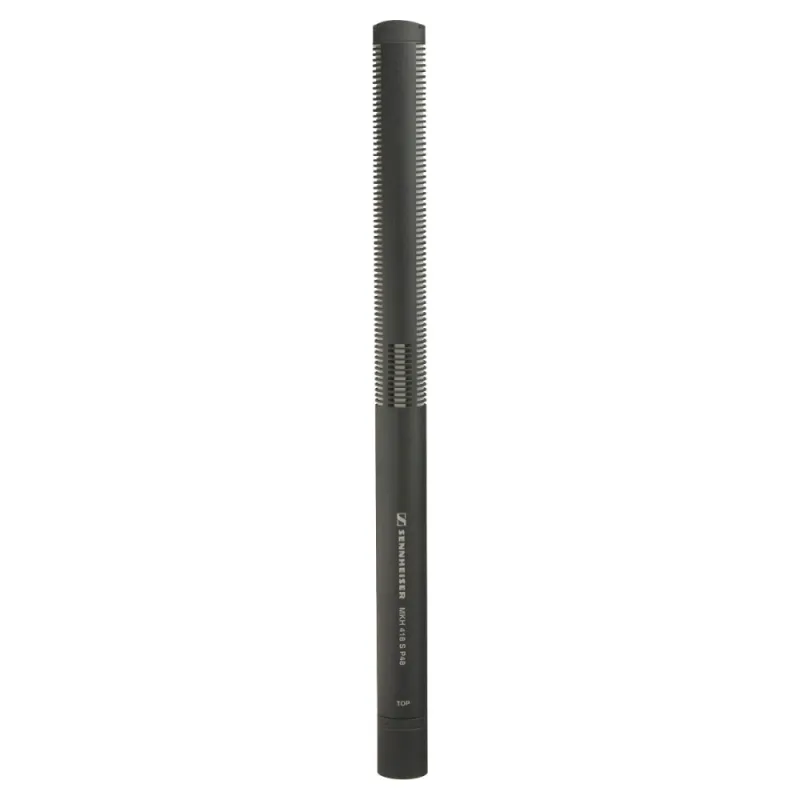

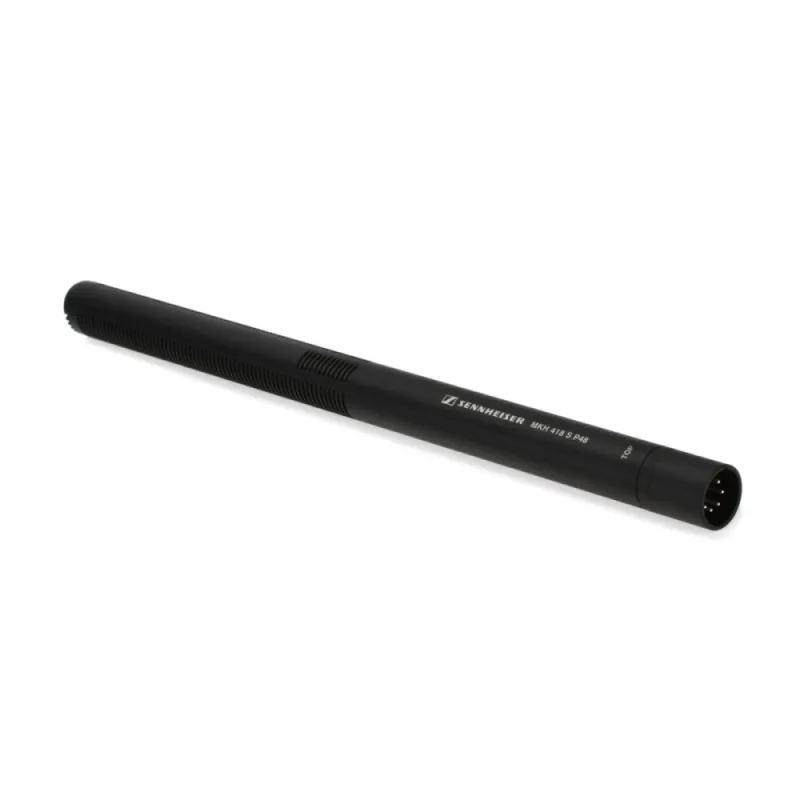

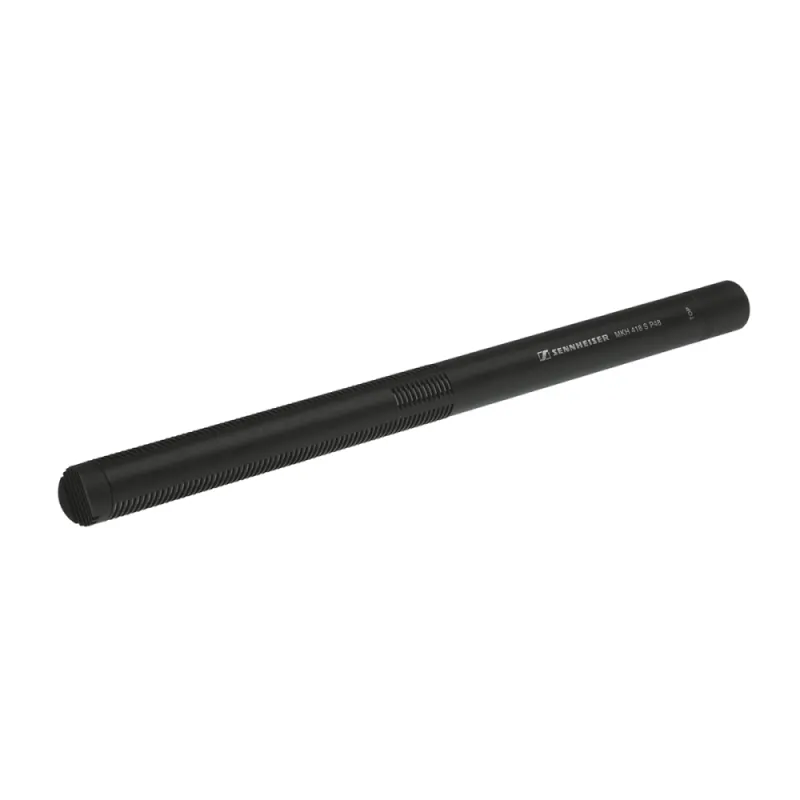

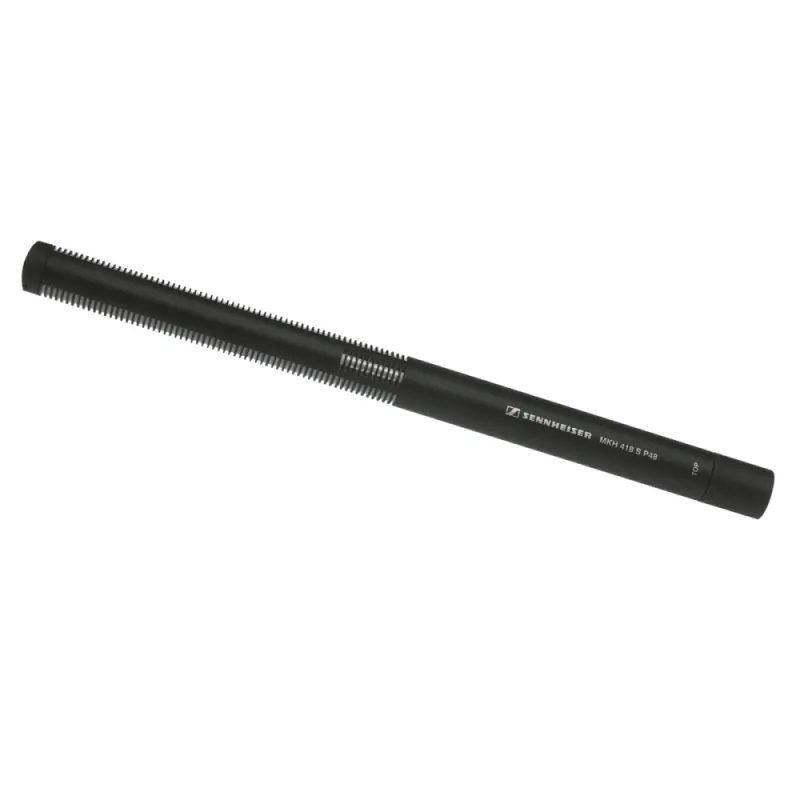

Sennheiser MKH 418 S Microphone

Sennheiser MKH 418 S Microphone

The MKH 418 S is an M-S stereo shotgun microphone. Its M-S format, compact dimensions, very good consonant clarity and good spatial representation make it ideally suited for every type of application in film, radio, television and reporting, both indoors and outdoors.

Features
- Increased directivity due to interference system (M)
- Very low noise
- High sensitivity
- Symmetrically ungrounded output without repeater
- Convincing spatial representation
- Universal application due to M-S format
- Sturdy and very weather-resistant
- Full metal casing, matt black

Delivery Includes
(1) MKH 418 S

Technical Data

Transducer principle (Microphone)

RF condenser microphone

M-S stereo

M-S stereo shotgun microphone

Pick-up pattern

M: super-cardioid/lobar (S: Figure-of-eight)

Frequency response (microphone)

40.....20000 Hz

Maximum sound pressure level (passiv)

130 dB (63Pa)

Output voltage

1,5 Volt

Equivalent noise level weighted as per CCIR 468-3

M:14 dB-A/26dB-CCIR S:24dB-A/34 dB-CCIR

Output impedance

< 25 Ohm

Impedance

1000 Ohm

Phantom powering

P48: 48+/- 4 V / 2x2,3 mA

Connector

XLR-5M

Operating temperature

-20.....+60 °C

Dimensions

19 × 280 mm

Weight

220 g
