Blackmagic Design DeckLink Duo 2 Mini Capture Card
SKU: 19685
Model: BDLKDUO2LP
Ean: 9338716006193
Būklė: Naujas produktas
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 442.52 su mokesčiais

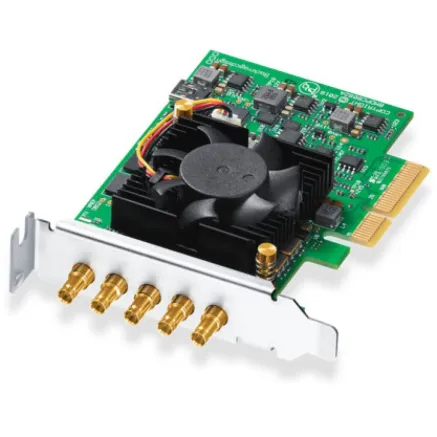

Blackmagic DeckLink Duo 2 Mini

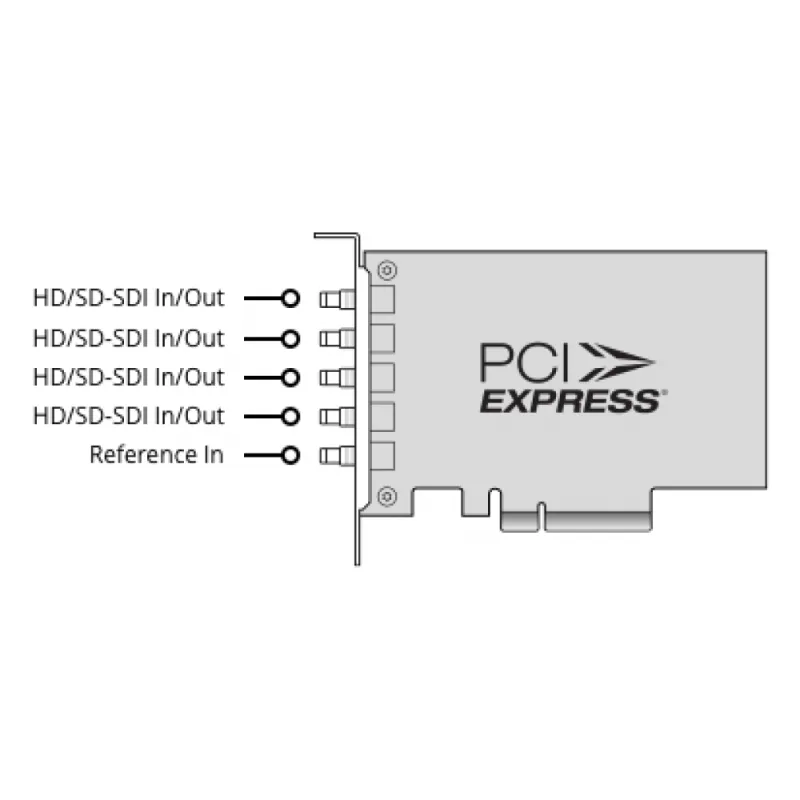

Featuring 4 independent mini 3G-SDI connections, DeckLink Duo 2 Mini is a compact, multi channel PCI Express capture and playback card that supports all SD and HD formats up to 1080p60. You get the flexibility of 4 separate capture or playback cards in one. Plus, it’s completely customizable so it’s perfect for media play-out systems, multi screen digital signage servers, real time multi channel capture systems and more.
Delivery Contents:
• Blackmagic DeckLink Duo 2 Mini
Specifications
| SDI Video Inputs | 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. |
| SDI Video Outputs | 4 x bidirectional 12-bit SD/HD independently configurable as either Input or Output. |
| SDI Audio Inputs | 16 channels embedded in SD and HD. |
| SDI Audio Outputs | 16 channels embedded in SD and HD. |
| Sync Input | Tri-Sync or Black Burst. |
| Computer Interface | PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots. |
| Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10‑bit 4:4:4 |
| Software Included | Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux. |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60 | |
| 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 | |
| 1080i50, 1080i59.94, 1080i60 | |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601. |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback. |
| SDI Video Sampling | 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. 12-bit RGB 4:4:4 only supported in playback. |
