9.Solutions C Pan Arm V2.0 9.CPA2C

All Possible Directions

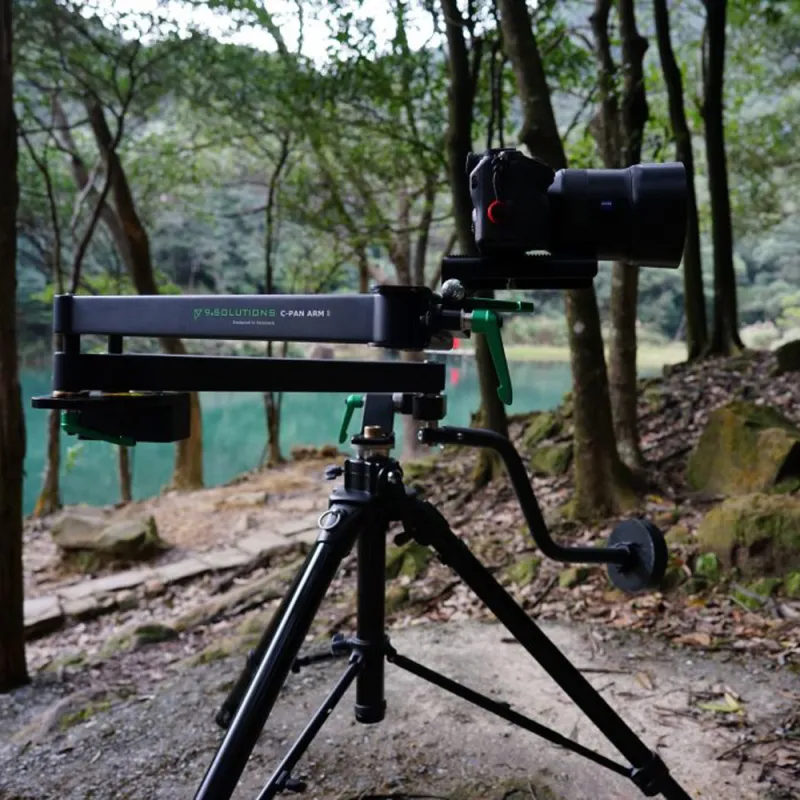

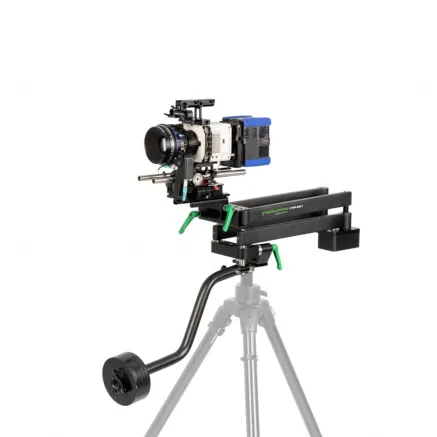

The C Pan Arm II is a very unique camera guide that can mechanically move a camera in different directions: straight, curved outwards, curved inwards, horizontally, vertically, or at an oblique angle, and even forwards or backwards. The camera is always set to move with whatever movement the arm makes. If the arm moves on an outward curve, the camera stays focused on the center of the curve, and if the arms are set for a curve with a smaller radius, the camera adjusts accordingly to stay focused on the center.

Highlights

• Bends to virtually any curve
• Has a swivel range of 140 cm
• Has a horizontal load capacity of 8 kg

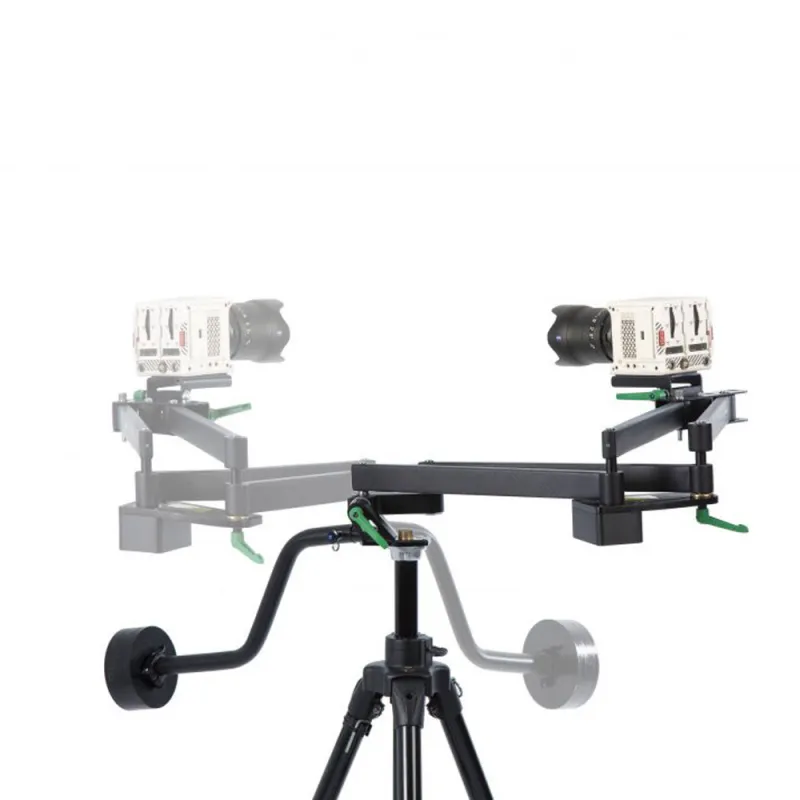

By placing the arms at different angles to each other, the C Pan Arm II can be adjusted to move around an almost infinite number of bends. When panning straight, the arm works like a traditional dolly slider, but without the tracks, allowing the arm to pan in a range of 3 1/2 times its folded length (which is about 55 cm). The C Pan Arm II comes with dumbbells that can be used to counter vertical movements and/or make horizontal movements more fluid and stable.

Specifications

• Horizontal load: 8 kg
• Vertical load: 6 kg
• Weight (body): 3.5 kg
• Weight (dumbbells): 4 kg
• Pan range (vertical and horizontal): 140 cm
• Bending radius (outward): 1.5 m
• Tripod mount: 3/8 16 female
• Camera plate mount: 1/4 20 and 3/8 16
• 2 year warranty
