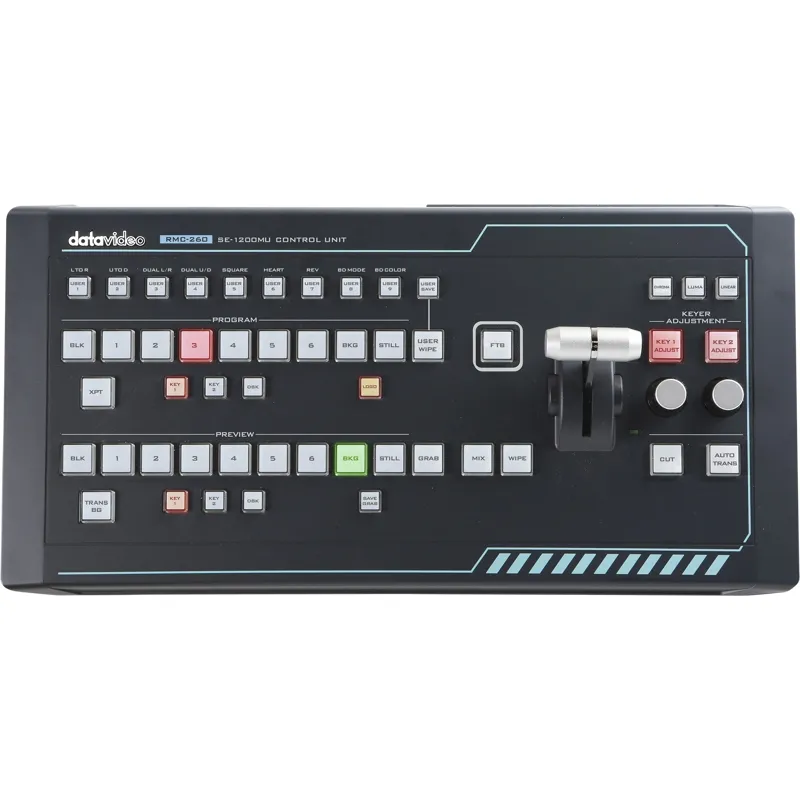

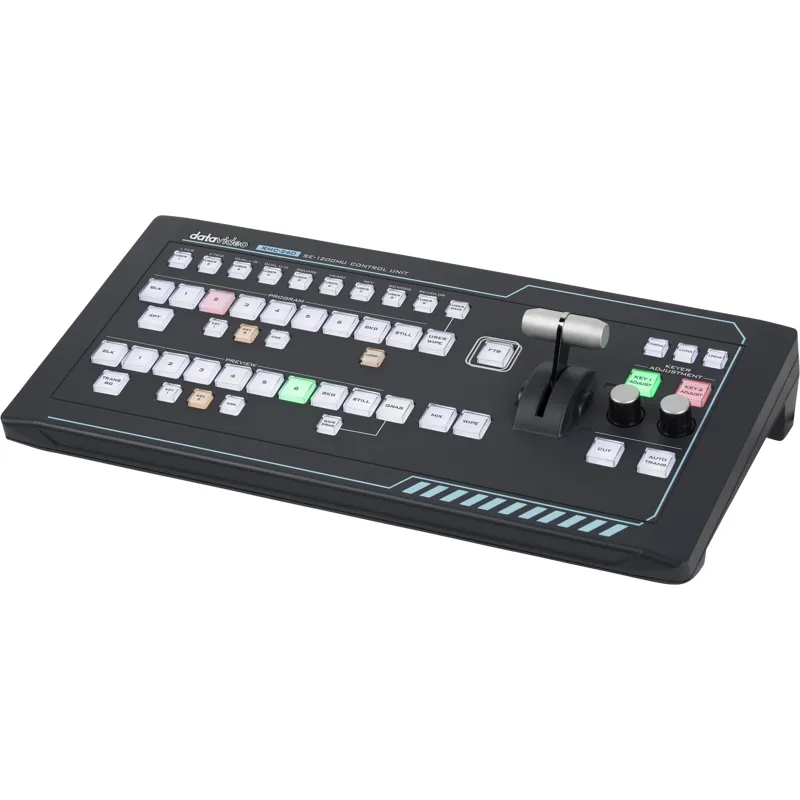

DATAVIDEO RMC-260 CONTROL PANEL FOR SE-1200MU RMC-260

SE-1200MU Digital Video Switcher remote controller

Switcher style controller
Allows user to control SE-1200MU by keys for quick and easy operation.

Supports user memory
Save user behavior to user memory keys for easy conversion of custom settings.

Easy connection
RS-232 interface for communication between RMC-260 and SE-1200MU.

Specifications

• Communication Interface: RS-232
• Baud Rate: 38400 ODD
• Update: USB
• Power Supply: Input AC 100 ~ 240V Switching Adaptor, Output DC 12V
• Power Consumption: 5W
• Operating Temperature: 0~40 °C
• Humidity: 10% to 90% (non condensing)
• Dimension (LxWxH): 430 x 261 x 70mm
• Net Weight: 1.3 kg
• Power: DC 12V, 0.5A

**In the Box **

• 1 x RMC-260 product
• 1 x AD Switch DC 12V
• 1 x DB9P TO DB9P Cable
