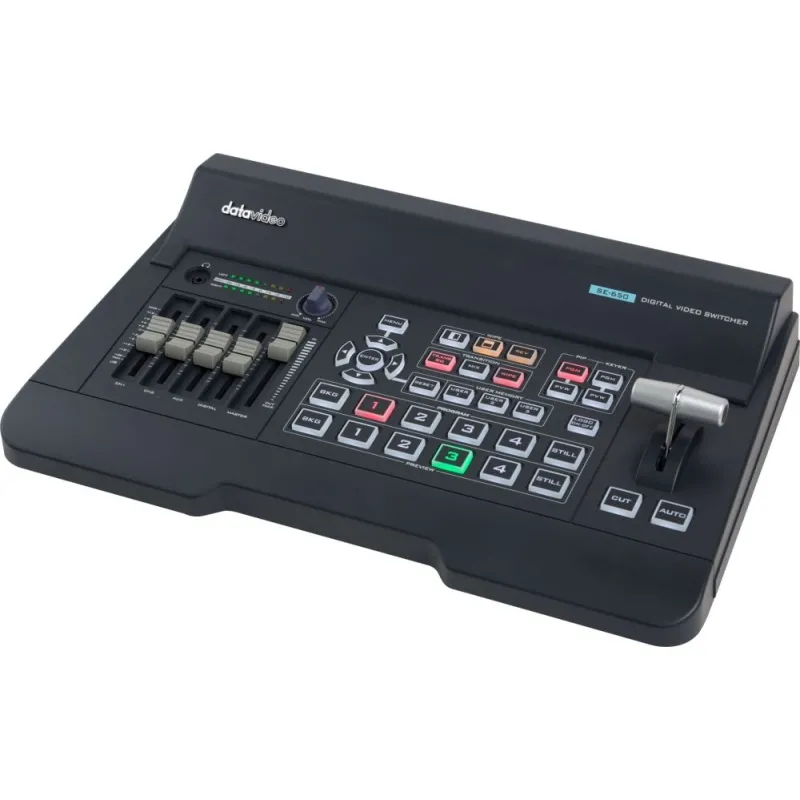

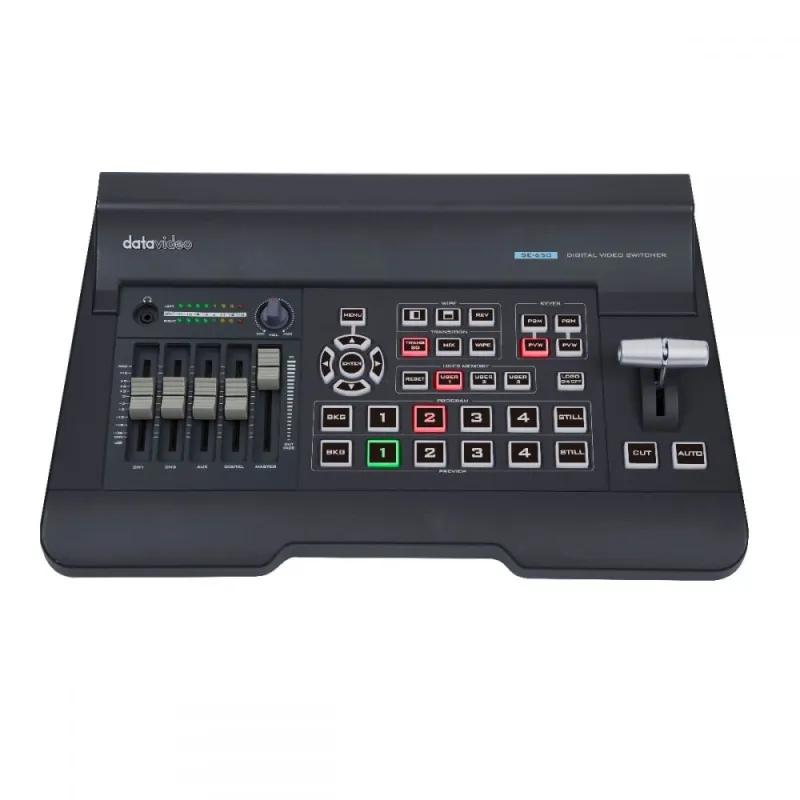

Datavideo SE-650 4 Input HD Digital Video Switcher
The Datavideo SE-650 is a small, costeffective, professional HD digital video switcher. It offers two HD-SDI and two HDMI inputs that support video formats up-to 1080i. It features two HDMI outputs and a user assignable HD-SDI output. The SE-650 is the perfect device for small scale video production using professional cameras and HDMI equipment. The SE-650 also features an audio mixer with microphone and unbalanced RCA audio inputs. Advanced tools include Chromakey, Luma key, PiP, wipe generator, still store and tally.

Features:
4 Input HD digital video switcher

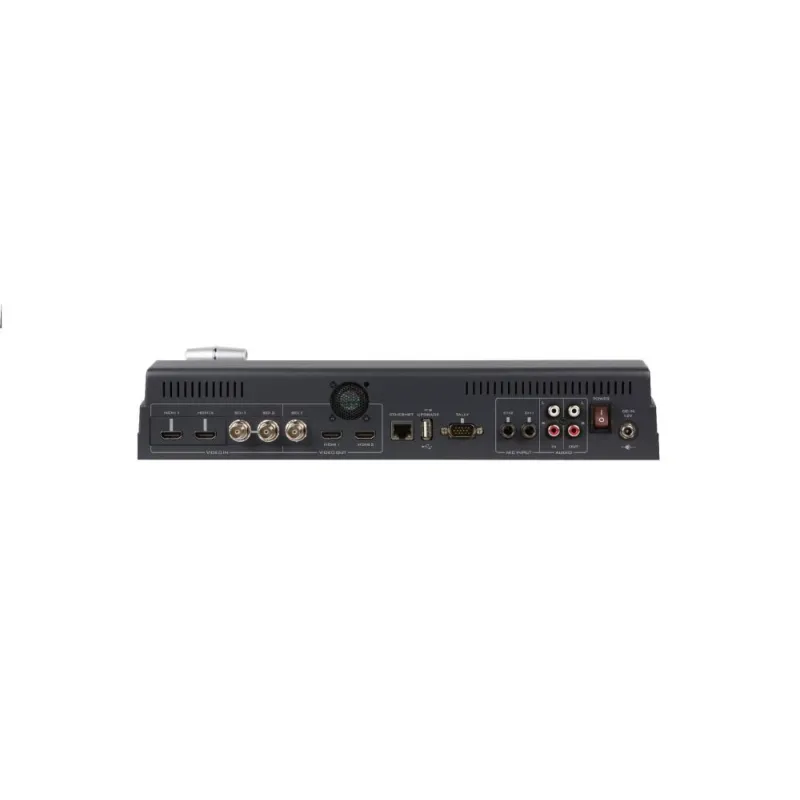

Inputs: 2 x HD-SDI, 2 x HDMI
Outputs: 1 x HD-SDI, 2 x HDMI
Any Input can be used as a Frame store (Stills Store)
Assignable Outputs: Program (w/ LOGO), Clean Program (w/o LOGO), Clean Preview (w/o LOGO), Multiview
Frame Sync on each input
Flexible Mix/Effects Processor with 1 Upstream Keyer, supporting Chromakey & Linear/ Luma Key
1 Upstream PIP, supporting Chromakey & Luma Key
Wipe Generator: 32 Wipe Patterns, including Circle & Heart - Borders & Softness Control
Full M/E Preview function
Logo insertion
XPT (Cross Point Assignment)
Tally Output
6 Channel Audio Mixer
Audio inputs: 2 x RCA Analogue (L/R), 2 x Microphone
Audio outputs: 2 x RCA Analogue (L/R), 1 x Stereo headphone mini Jack
Audio em-bedded function
Multi-language support

Delivery:
1x SE-650 product
1x AD Switch DC 12V with AC Cord
1x Thank You Card
