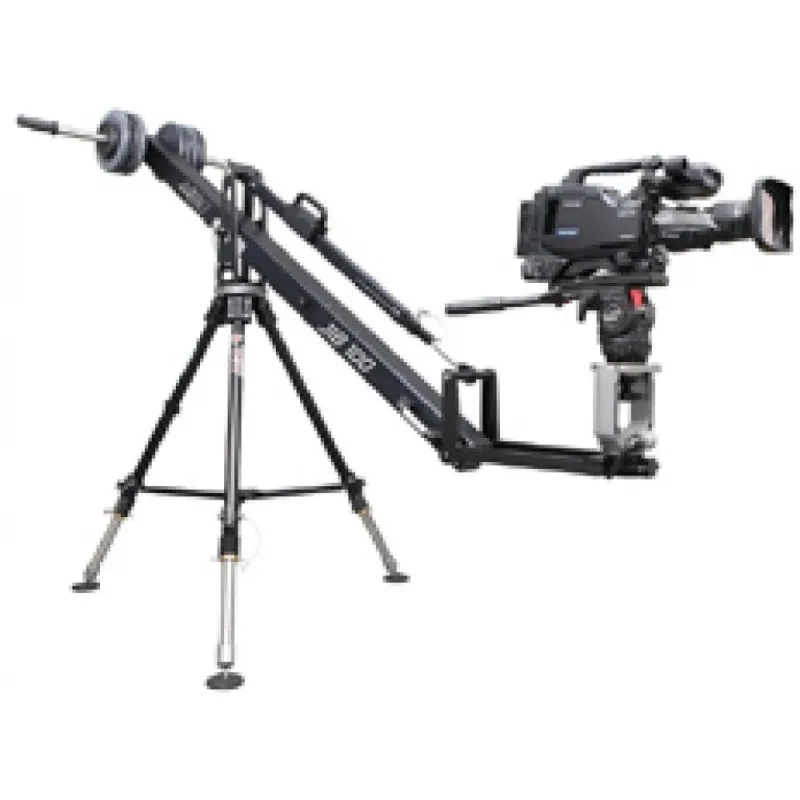

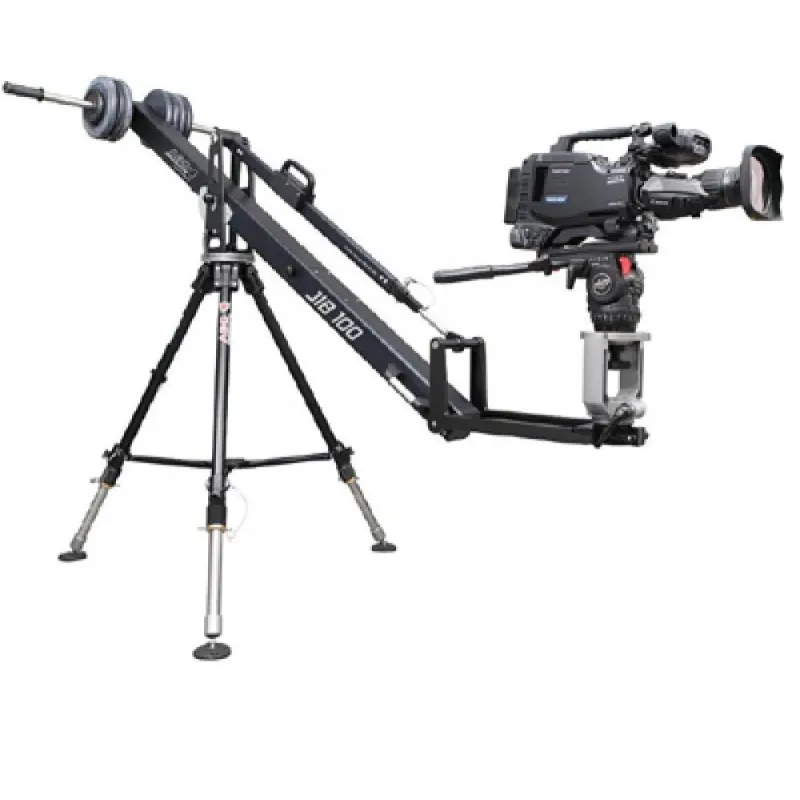

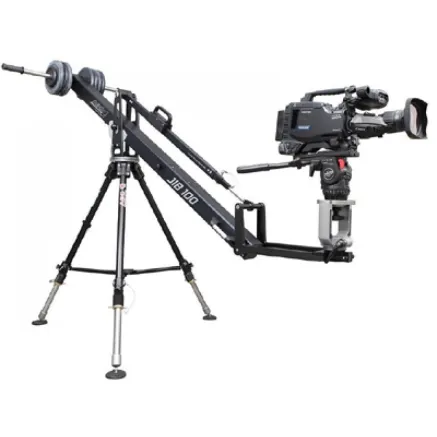

ABC Jib 100
The jib arm is a very versatile piece of equipment that can be used for small camcorders as well as for bigger high tech cameras. Like any ABC Products equipment, the Jib 100 can be reduced to very small packing dimensions and assembled within minutes which makes it the perfect equipment for mobile use. Thanks to an integrated fine trimmer, the Jib may be leveled continuously and precisely. The jib head has a euro mount adapter that permits to mount offset ball adapters, remote heads and many more accessories. The Jib 100 can be set on every tripod with ball adapters with 100 or 150mm diameter.

Features
- payload up to 20 kg
- Weight only 19kg
- for small camcorders as well as for bigger high tech cameras
- integrated fine trimmer for continuous and precise leveling
- ready in seconds, very small packing dimensions

Delivery contents:
- jib arm incl. head and ¼" camera screw and boom with integrated horizontal and vertical brake
- adaptor for 75/100mm bowl tripods
- softcase
- manual

Specifications

Weight

19 kg

Transport dimension

150x35x24 cm

Boom-lenght

162 cm

Total crane lenght

240 cm

Lift (when tripod is 1.114m)

215 cm

Max. payload

20 kg

Max. counterweight

40 kg
