DATAVIDEO CB-23H MULTI CABLE W 4&5P-XLR, 2X BNC (50M) CB-23H
SKU: 8401
Model: CB-23H
Ean: 0000000115152
Būklė: Naujas produktas
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 505,45 su mokesčiais
| Type of Product | Wires, cables for video |
| Connections | XLR to XLR |
| Connections | BNC to BNC |

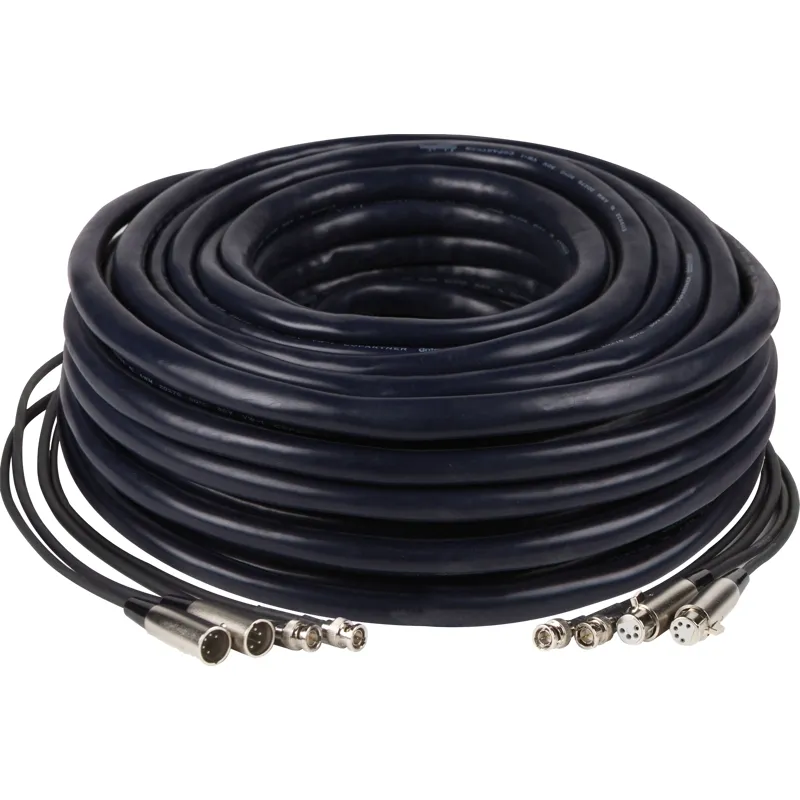

HD/SD 50m 4-in-1 Cable (HD-SDI/ITC/CV/DC Power)
- 50M All In One for Mobile Studio / Mixer - Switchers
- 1 x 4-pin XLR power cable
- 1 x 5-pin XLR transmission cable for intercom
- 1 x 1.5C-2V 75Ω for video
- 1 x 1.5C-2V 75Ω for return video
Connections for
- Intercom & Tally
- Phantom Power
- Video (including HD-SDI)
- Return video for Look Back monitor
Specifications
- Interface: 1 x 4-pin XLR power cable (pin1+/pin2-), 1 x 5-pin XLR ITC/Tally cable, 1 x 75Ω BNC for HD/SD-SDI video, 1 x 75Ω BNC for CV return video
- Length: 50m
- Repeater: VP-605H
Applications
- Intercom & Tally
- DC Power 12~48V
- Up to 1080i video transmission (HD/SD-SDI)
- Return video for Look Back monitor
- Datavideo OBV or Mobile Studio
