Canare L-2.5CHD 75 Ohm Coaxial Cable for 3G-SDI/HDMI
Pristatymas per 5 - 7 dienas
| Type of Product | Wires, cables for video |
| LCD monitors | HDMI adapter |
| Connections | HDMI to HDMI |

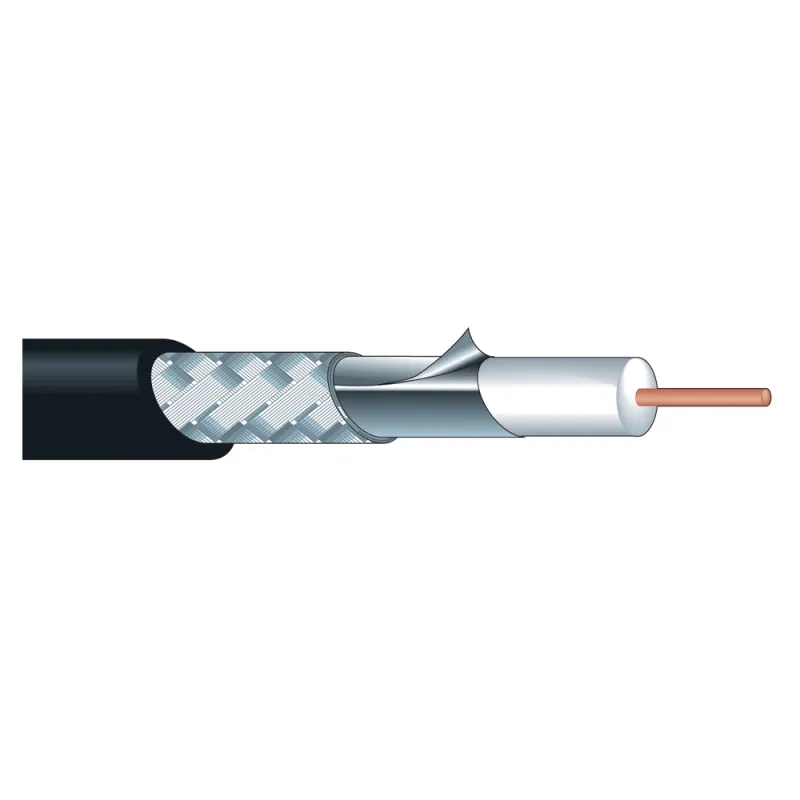

Canare L-2.5CHD -75 ohm Digital Video Coaxial Cable Super Low Loss Coax (Highly-Foamed PE Insulation)
Canare L-2.5CHD - Canare's variety of 75 ohm coaxial cables support full-range of video formats. Our cutting-edge Supper Low Loss Coax and Low Loss Coax are ideal for 3G-SDI / HD-SDI distribution.
Applications:
- HD-Serial Digital Video
- Satellite Head Ends
- HDTV Upgrades
- Broadband Facilities
- SMPTE 259M, 292M,424M
Features
- Best suited to 3G-SDI / HD-SDI transmission.
- Highly-foamed PE insulation allows further improvement in the attenuation characteristics.
- Multi-layer insulation in which to each layer is given a different foaming ratio is used to increase strength.
- Tinned copper braid with aluminum foil brings excellent shielding.
- L-2.5CHD is ideal for internal rack wiring.
- Flame resistance UL 1666 Riser (L-2.5CHD, L-4CHD, L-4.5CHD, and L-5CHD)
| MECHANICAL SPECIFICATIONS | ||||||
| Model | Std. Lng. ft. (m) | Nom. O.D. in. (mm) | Wt Std. Lng. lbs (kgs)/100m | Inner Cond Conductor Comp. (AWG) Q'ty/mm | Inner Cond O.D. in. (mm | Insulation O.D. in. (mm) |
| L-2.5CHD | 328 (100) 656 (200) | 0.17 (4.2) | 3.97 (1.8) | (23) 1/0.59A | 0.02 (0.59) | 0.10 (2.59) |
| (contd.) MECHANICAL SPECIFICATIONS | ||||||
| Model | Outer Conductors Shield Coverage & Comp. | Inner Cond. Resistance (ohm/km) | Outer Cond. Resistance (ohm/km) | Static Capacity (pF/m) | Characteristic Impendence ohm | Attenuation dB/100m(328ft) 750MHz) |
| L-2.5CHD | 0.14TCCA/6/16 (95% or more) | (66.9) | (21.5) | 53 | 75 | 30.2 |
