Canare BCP-B51F crimp BNC connector CNRBCPB51F
Pristatymas per 5 - 7 dienas

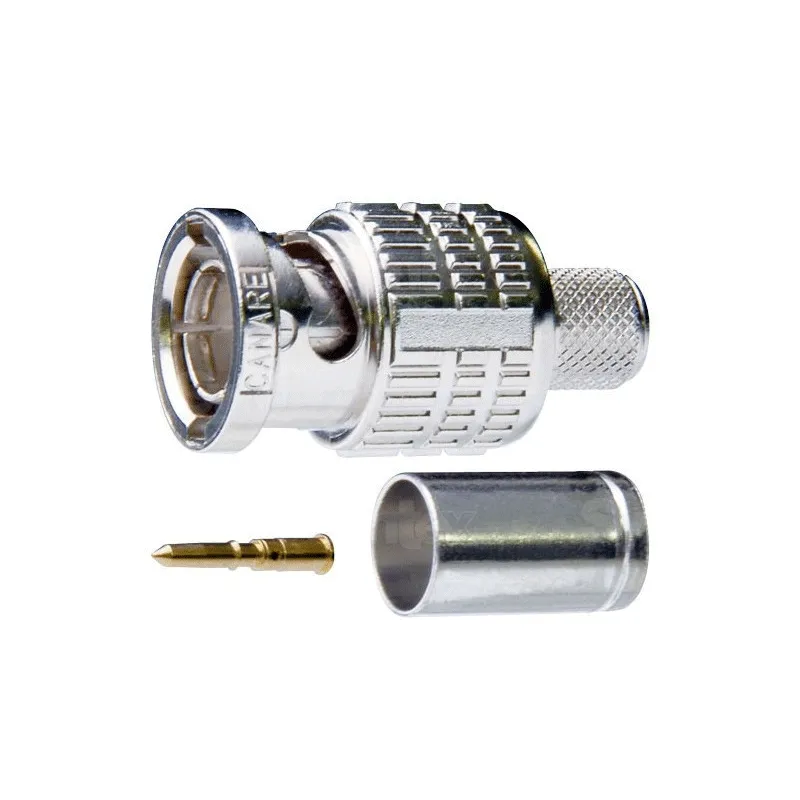

The Canare BCP-B51F is a 75 ohm BNC (M) crimp connector (straight type) with an extended body for better handling.
| Type of Product | Cables |
| Type of Product | Wires, cables for video |
| Connections | BNC to BNC |
Suitable cables Canare: L-5CFW
Usage:
in accordance with SMPTE 424M & 292M specification
- HDTV
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Features:
- Genuine 75 ohm design with crimp pin and socket
- High performance 1.1 or less VSWR (Voltage standing Wave Ratio) up to 3GHz.
- Elongated body for better handling
- A positional mark on the body allows the connector to be easily checked.
- Excellent cable retention
- Gold-plated central pin
- The body of the connector is "die-cast" - achieving a lower price with high performance
- Easy assembly with the Canare crimping tool
