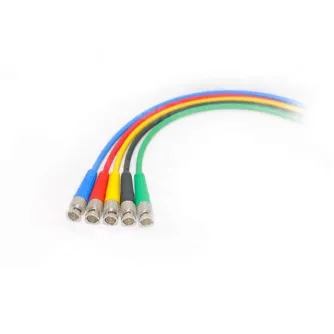

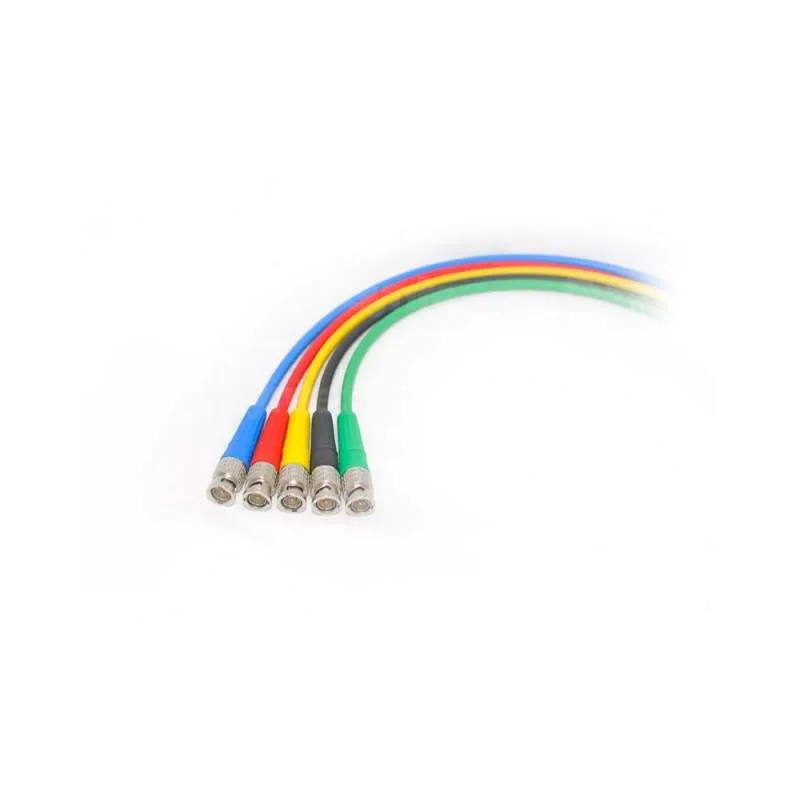

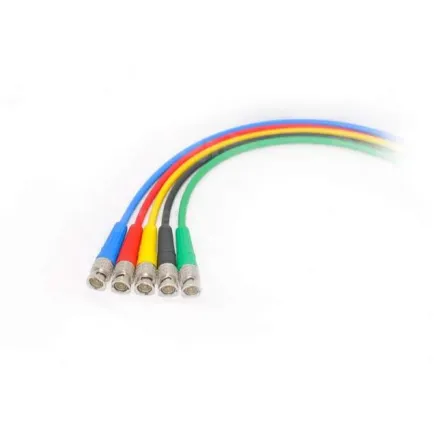

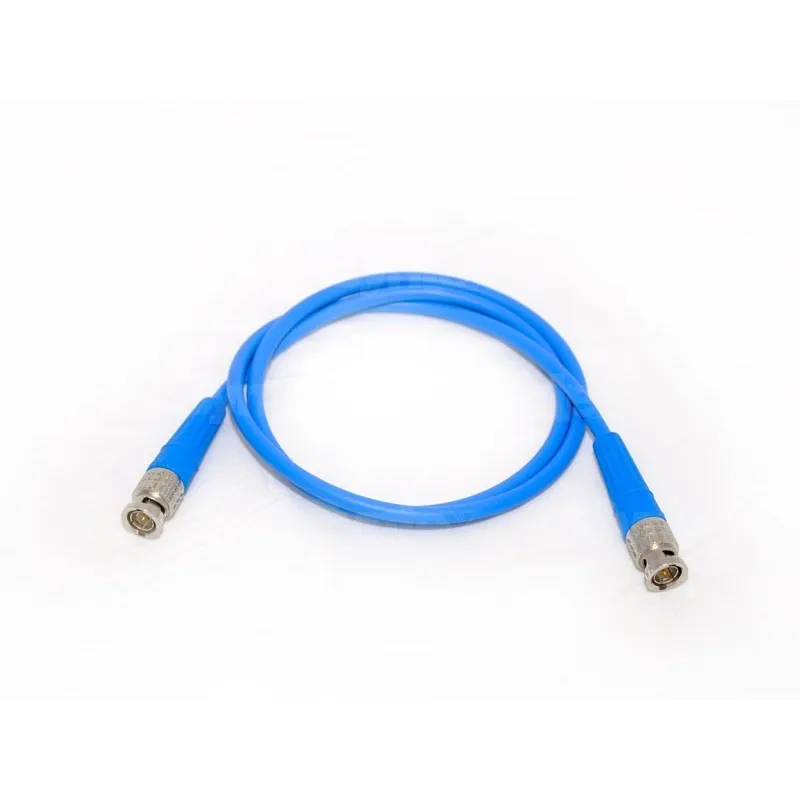

Canare L-3C2VS BLU BNC 15m CV-3-M/M-BLU-15

Cable Specifications

• Sheath diameter (overall diameter) in mm: 5.5
• Cable weight in kg/100m: 4.5
• Central conductor - number and diameter of strands in mm: 7/0.18
• Total diameter of central conductor in mm: 0.54
• Foam dielectric - diameter in mm: 3.1
• Resistance of the central conductor in Ω/100m: 10.5
• Outer conductor clearance in Ω/100m: 1.9
• Static capacitance in pF/m: 67
• Attenuation in dB/100m: 4.5
• Impedance: 75

Connector Specifications

• Cable pull in kg: >24.9
• Insulation resistance at 500V DC in: >1000M
• Rated voltage for 1min: 1500V AC (rms)
• Resistance of central contact: <6m ohm
• Resistance of outer contact: <3m ohm
• Impedance: 75
• Connector body - material/surface: Brass / Nickel
• Central contact - material/surface: Brass / Gold
• External contact - material: Beryllium Copper
• Dielectric - material: PTFE polytetrafluoroethylene
• Crimp sleeve - material/surface: Copper / Tin
