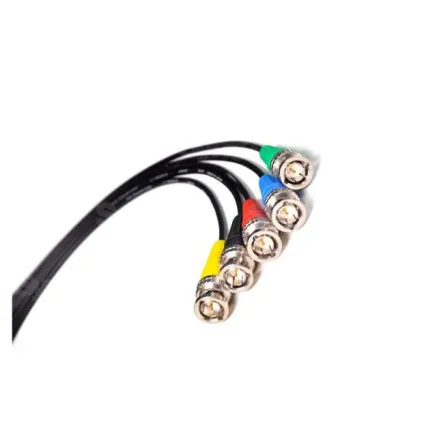

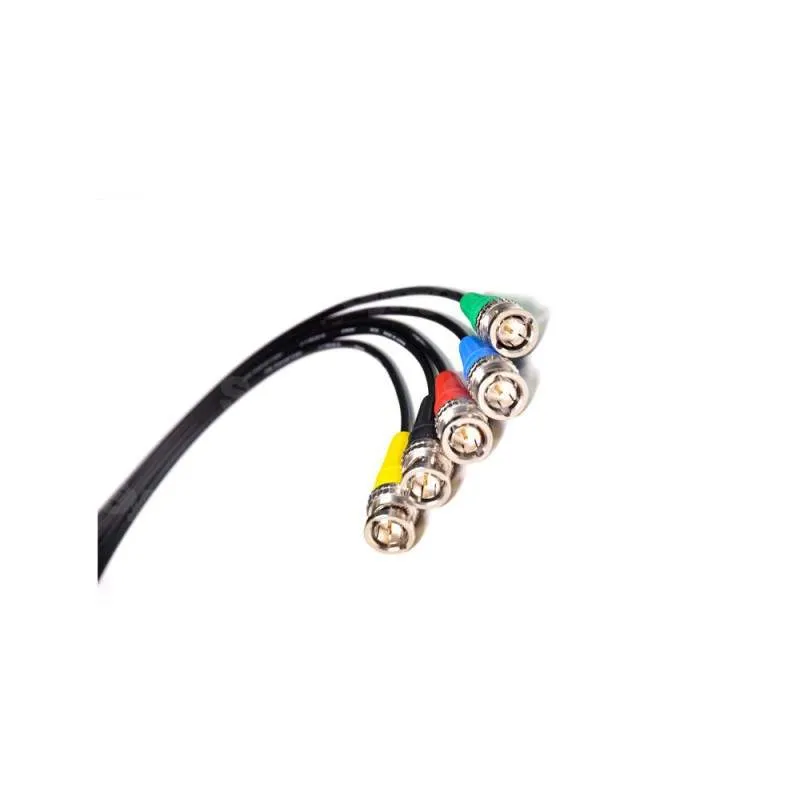

Canare L-1.5C2VS YEL BNC 0,5m CV-15-M/M-YEL-05

Canare

SKU: 15214

Model: CV-15-M/M-YEL-05

Ean: 0000000000000

Būklė: Naujas produktas

Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 21,45 su mokesčiais

  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment
  • Rack cabling
  • Video Patch Cables

Daugiau detalių

Type of ProductCables
Type of ProductWires, cables for video
ConnectionsBNC to BNC

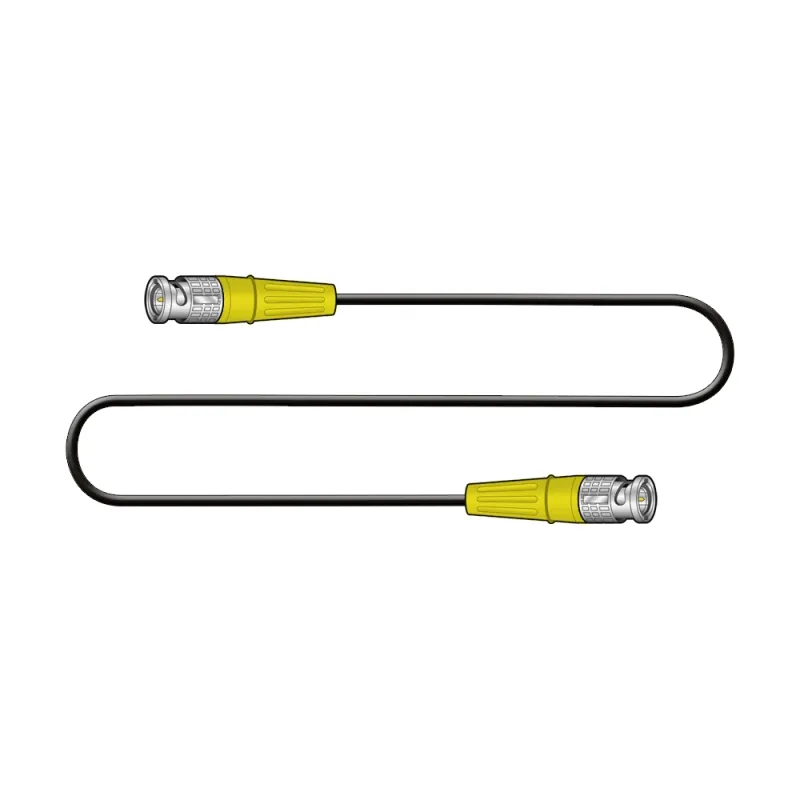

L-1.5C2VS YEL BNC (M) / BNC (M) lenght 0,5m

Canare L-1.5C2VS

is our thinnest ultra-lightweight and super flexible 75 ohm 2.9 mm coaxial cable with a stranded center conductor is the ideal choice for short rack cabling. The L-1.5C2VS cable remains flexible even at low temperatures. There are crimp-on BNC (M) connectors type BCP-C1 at both ends.

Parameters

  • Standard manufactured lengths: 200m
  • Sheath diameter (overall diameter) in mm: 2.9
  • Cable weight in kg/100m: 1.3
  • Central conductor - number and diameter of stranded wire in mm: 7/0,09
  • Total diameter of central conductor in mm: 0.27
  • Foam dielectric - diameter in mm: 1,6
  • Resistance of central conductor in /100m:41,9
  • Resistance of outer conductor in /100m:3,3
  • Static capacitance in pF/m: 69
  • Attenuation in dB/100m: 8,7
  • Impedance in : 75
