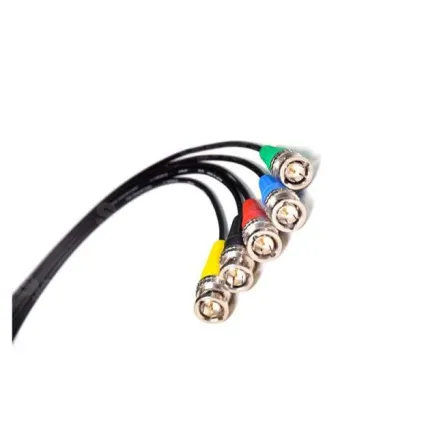

Canare L-1.5C2VS YEL BNC 0,3m CV-15-M/M-YEL-03
SKU: 15213
Model: CV-15-M/M-YEL-03
Ean: 0000000000000
Būklė: Naujas produktas
Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 23,45 su mokesčiais
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
- Rack cabling
- Video Patch Cables
| Type of Product | Audio Adapter |
| Type of Product | Cables |
| Type of Product | Wires, cables for video |
| Type of Product | Audio Cable |
| Battery type | Charger |
| LCD monitors | HDMI adapter |
| Connections | HDMI Mini to HDMI Micro |
| Connections | 3.5mm to Lightning |
| Connections | HDMI to HDMI |
| Connections | USB-C to 3.5mm |
| Connections | USB-C to Micro-B |
| Connections | USB-C to USB-C |
| Connections | HDMI to HDMI Mini |
| Connections | HDMI to VGA |
| Connections | D-tap male and DC male |
| Connections | 3.5mm to USB-C |
| Connections | HDMI to HDMI Micro |
| Connections | BNC to BNC |
| Connections | XLR to XLR |
| Lenght, m | 1.2 |
| Lenght, m | 1 |
| Lenght, m | 3 |
| Lenght, m | 0.11 |
| Lenght, m | 2 |

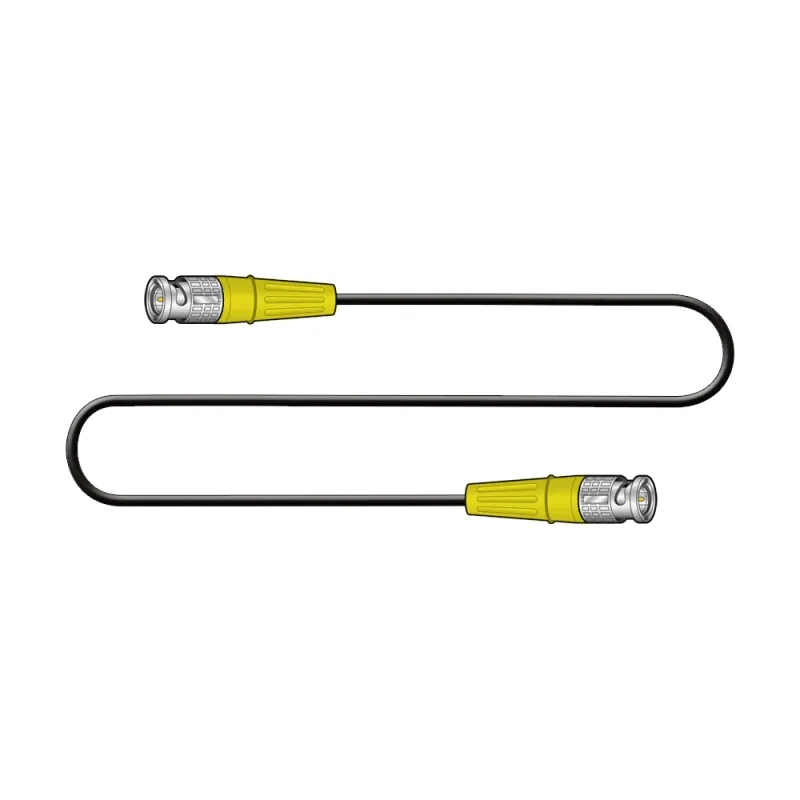

Product: L-1.5C2VS YEL BNC (M) / BNC (M) Length 0.3m
Canare L-1.5C2VS is our thinnest ultra-lightweight and super flexible 75 ohm 2.9 mm coaxial cable with a stranded center conductor, making it the ideal choice for short rack cabling. The L-1.5C2VS cable remains flexible even at low temperatures. It comes with crimp-on BNC (M) connectors type BCP-C1 at both ends.
Parameters:
- Standard manufactured lengths: 200m
- Sheath diameter (overall diameter) in mm: 2.9
- Cable weight in kg/100m: 1.3
- Central conductor - number and diameter of stranded wire in mm: 7/0.09
- Total diameter of central conductor in mm: 0.27
- Foam dielectric - diameter in mm: 1.6
- Resistance of central conductor in Ω/100m: 41.9
- Resistance of outer conductor in Ω/100m: 3.3
- Static capacitance in pF/m: 69
- Attenuation in dB/100m: 8.7
- Impedance: 75Ω
