Rolux V-Mount Battery Plate RL-VF1

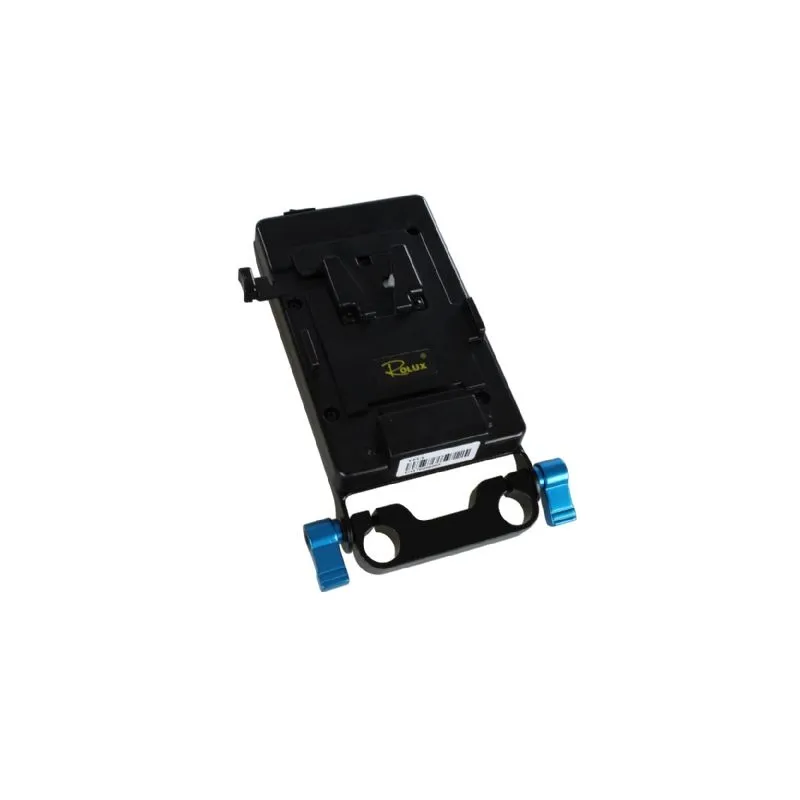

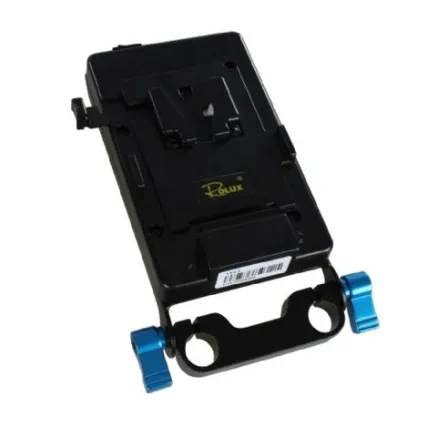

The Rolux Power Plate RL-VFU1 allows you to connect V-mount batteries to your Canon 5D, Nikon D800, Panasonic AF 103, etc. The RL-VFU1 also has a USB out plug allowing for powering devices via a USB port. It is also possible to connect different accessories at the same time. Thus you can power for example a monitor, camera and smartphone at the same time with only one V-mount battery.
;
;V-mount batteries are known for their long battery life, which allows you to get the most out of your RL-RL-VFU1. The V-mount batteries can easily be disassembled with one push on the unlock button.

;

Application Rolux RL-VFU1

;

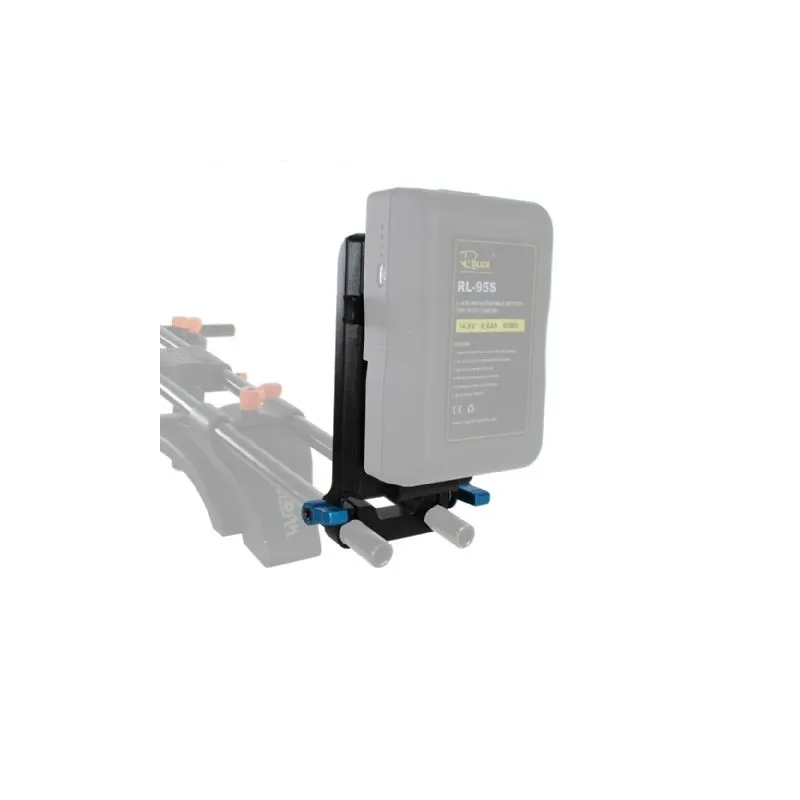

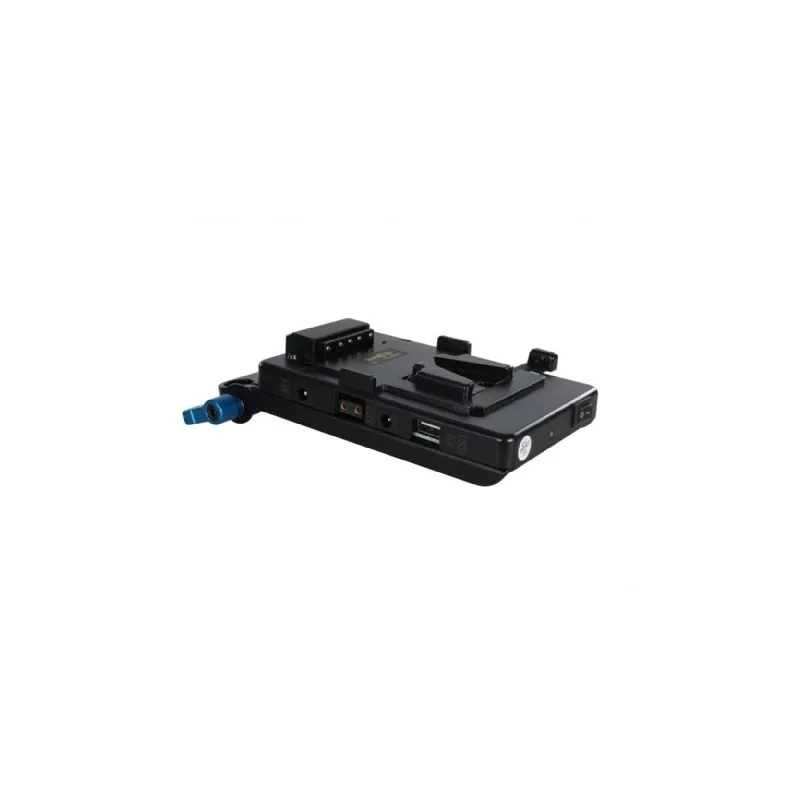

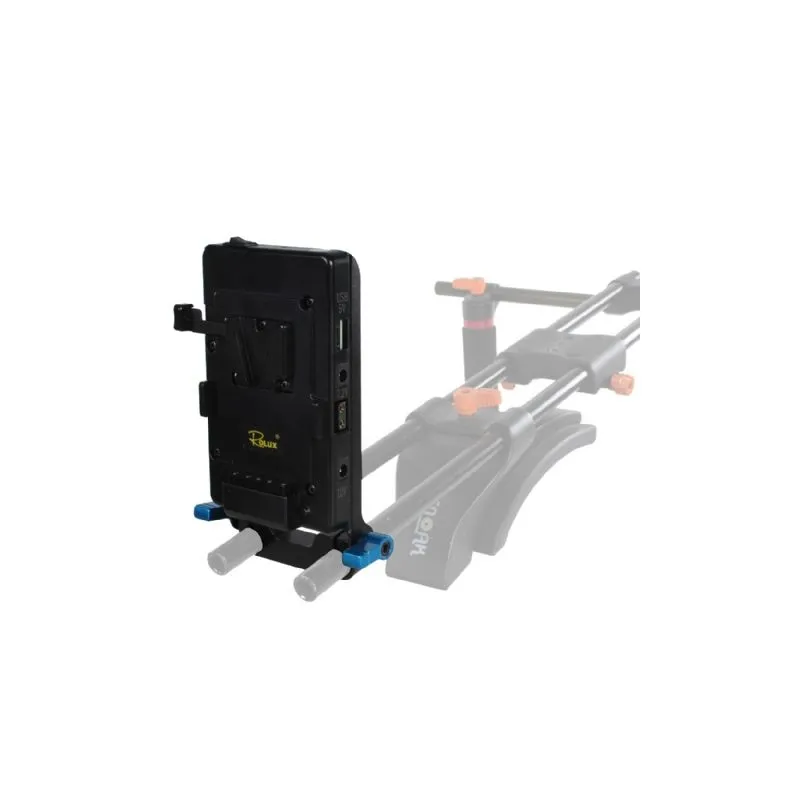

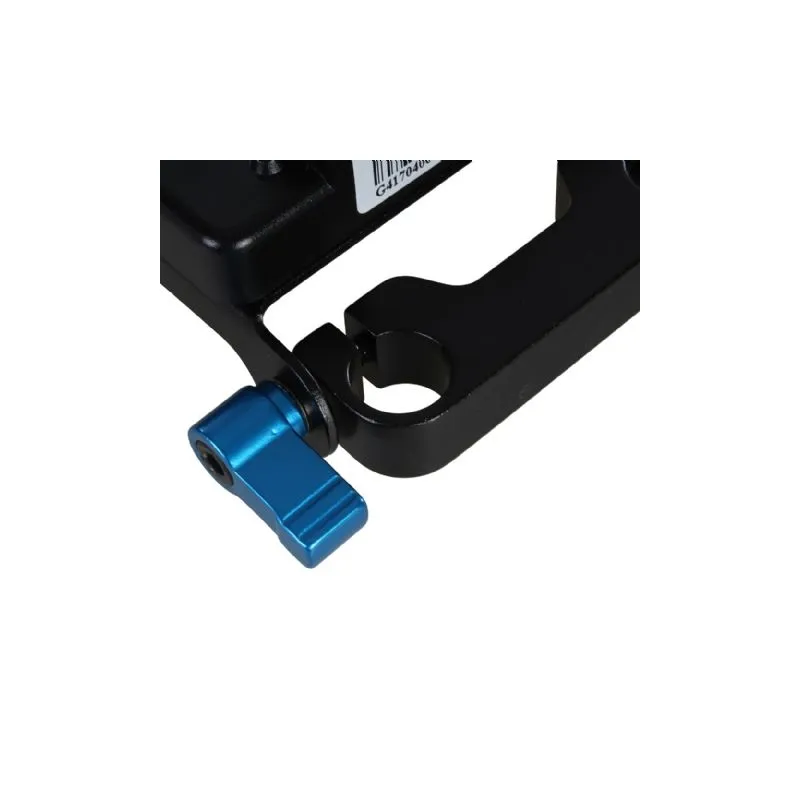

Preparations have been made for both the RL-VFU1 and the camera for quick and easy assembly. The universal mount is suitable for all rigs with 15mm tubes.Only one cable needs to be connected, that s all. The RL-VFU1 is suitable for all common V-mount batteries. The side connections of the battery holder clearly indicate where you can connect which cable. On the side of the RL-VFU1 you also find a D-tap connector to supply your favorite accessories (for example, a LED lamp) with power.
;
;The included DR-E6 coupler can be used as replacment for the LP-E6 battery in your camera. So your camera is supplied with power from the V-Mount battery. An integrated regulator ensures that the correct voltage is delivered to the camera. This is working for example with the following camera's:
;- Canon EOS 5D Mark II
;- Canon EOS 5D Mark III
;- Canon EOS 5D Mark IV
;- Canon EOS 5DS
;- Canon EOS 60D
;- Canon EOS 7D
;- Canon EOS 7D Mark II

;

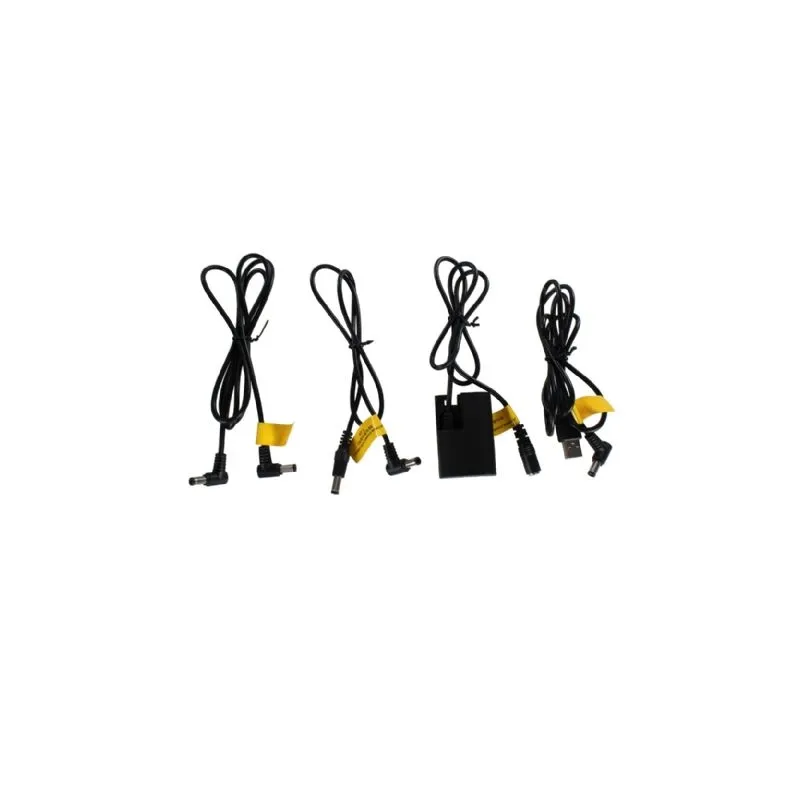

Included cables:

;

;
• 5V cable USB-A / DC male, 115cm long
;
• 12V Monitor connection cable DC male / DC male , 120 cm long
;
• 7,2V Power connection cable DC male / DC male , 60 cm long
;
• Power connection cable DC female / DC coupler DR-E6, 73 cm long
;

;

1x Power Plate; 3x cable;1x DR-E6 Coupler
