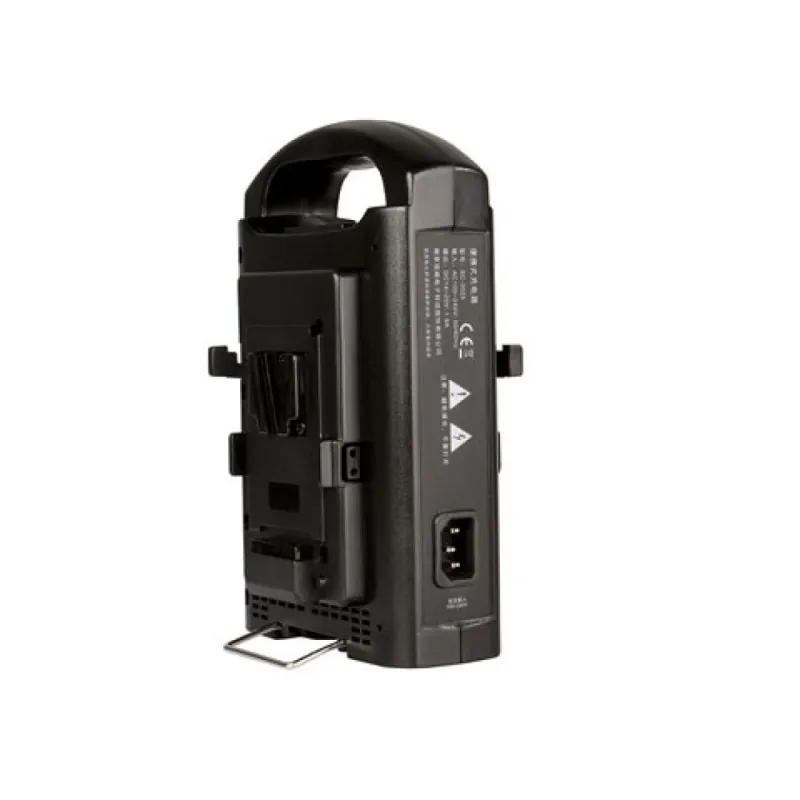

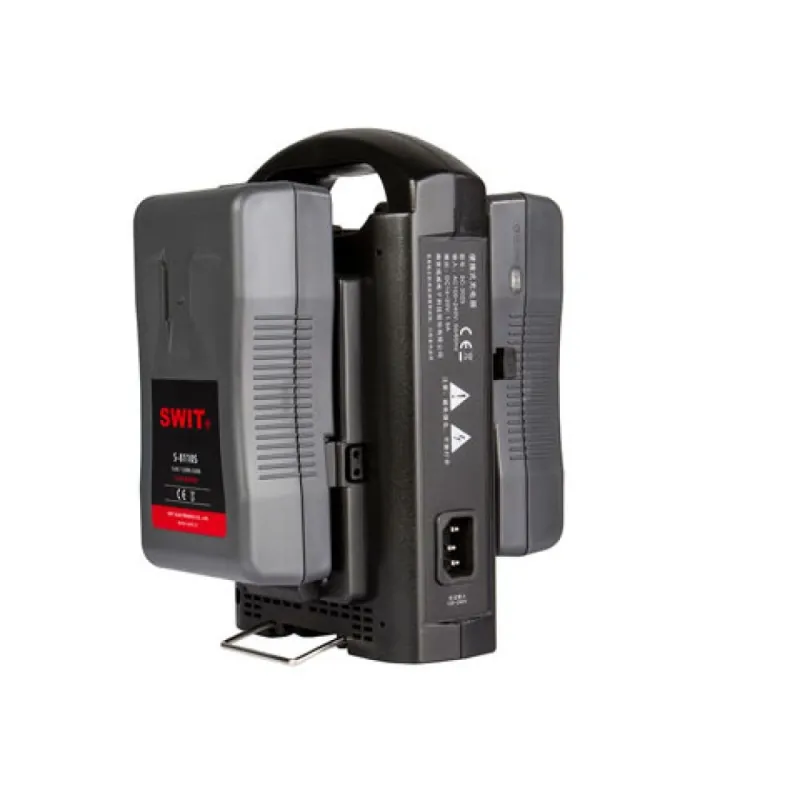

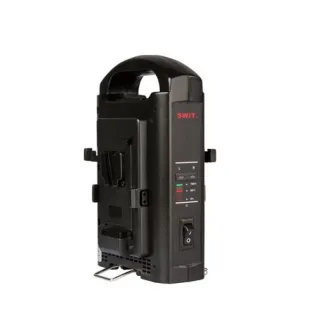

Swit SC-302S 2-ch V-mount Battery Charger

The SC-302S has 2 V-mount plates and can charge 2 batteries one-by-one sequentially. The charging output is DC 14-20V, 1.9A.
Li-ion charging follows a two-period approach. The first period is constant-current. The battery is charged at the maximum charging rate. When the battery reaches a specified set-point voltage, charging circuits switch to the second period: the constant-voltage period. The charging circuit will provide only enough current to maintain the voltage, to prevent the battery from over charging.

Key Features:
1. V-mount battery charger
2. 2-ch sequential charging

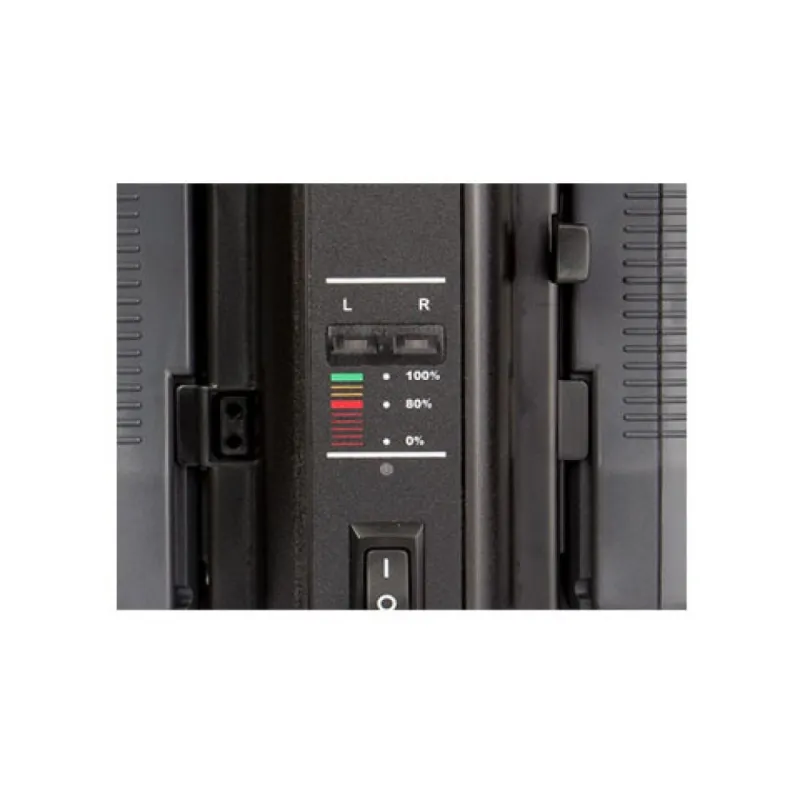

3. LED charging indicators
4. Light weight and portable

Specifications:

Input

AC 100V-240V 50/60Hz

output

DC 14V-20V, 1.9A

Applicable battery

V-mount battery

Dimension

228×140×86mm

Weight

0.85kg
