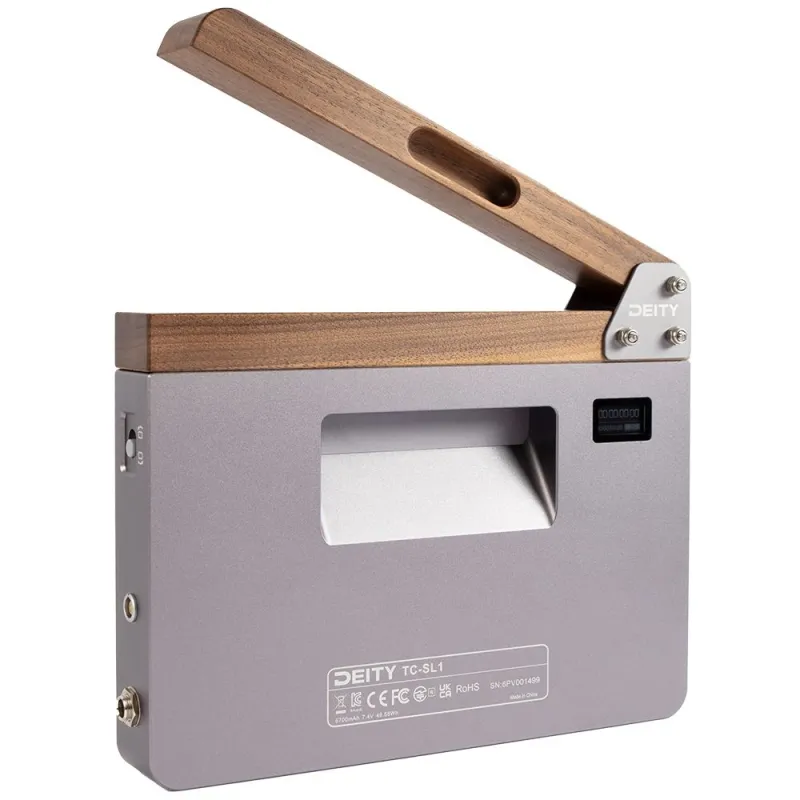

Deity TC-SL1 Timecode Slate Clapper

Deity TC-SL1 Timecode Slate

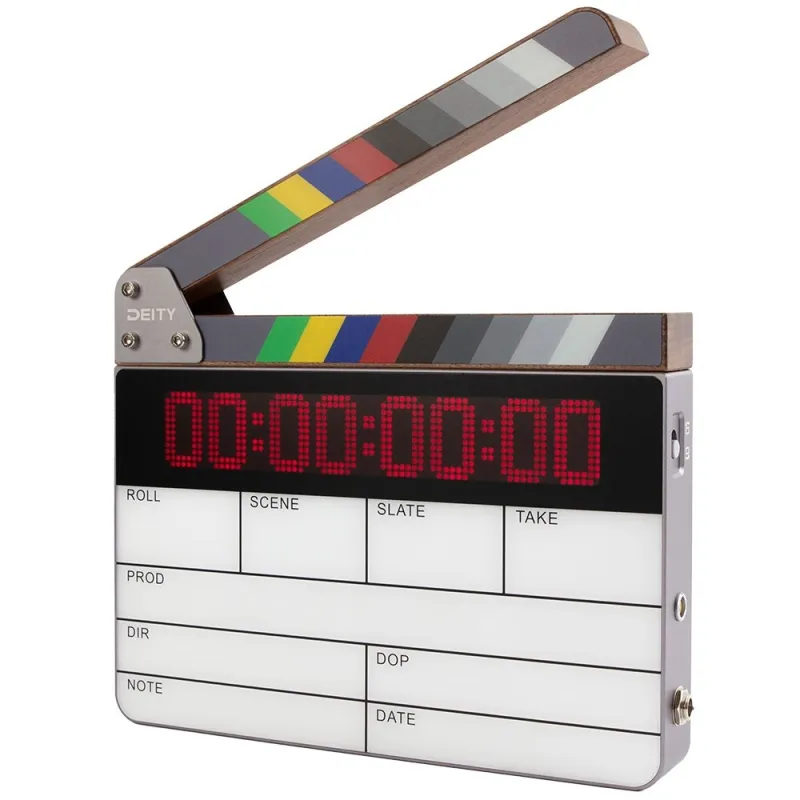

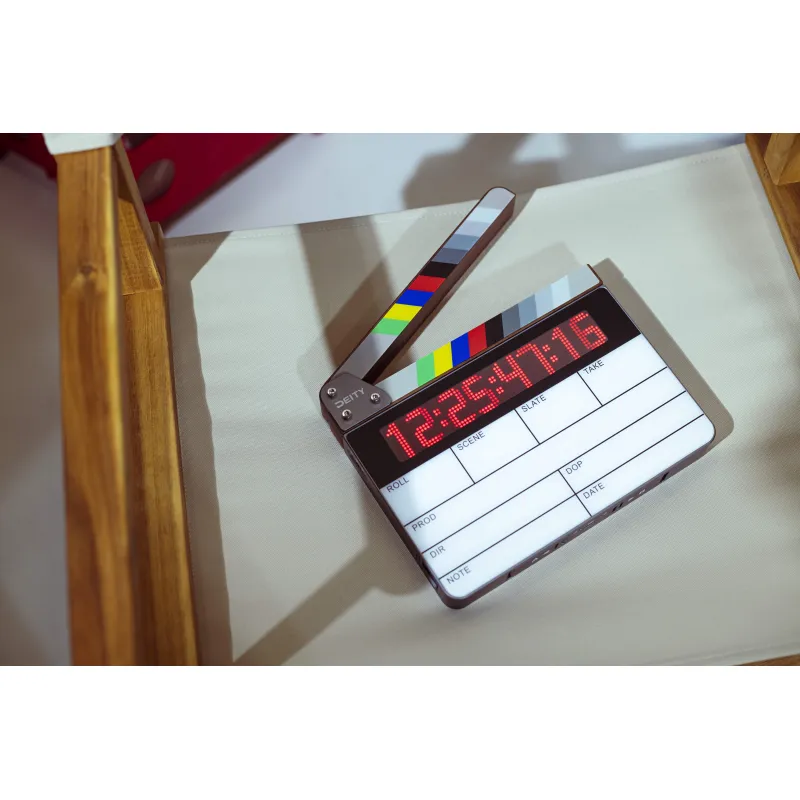

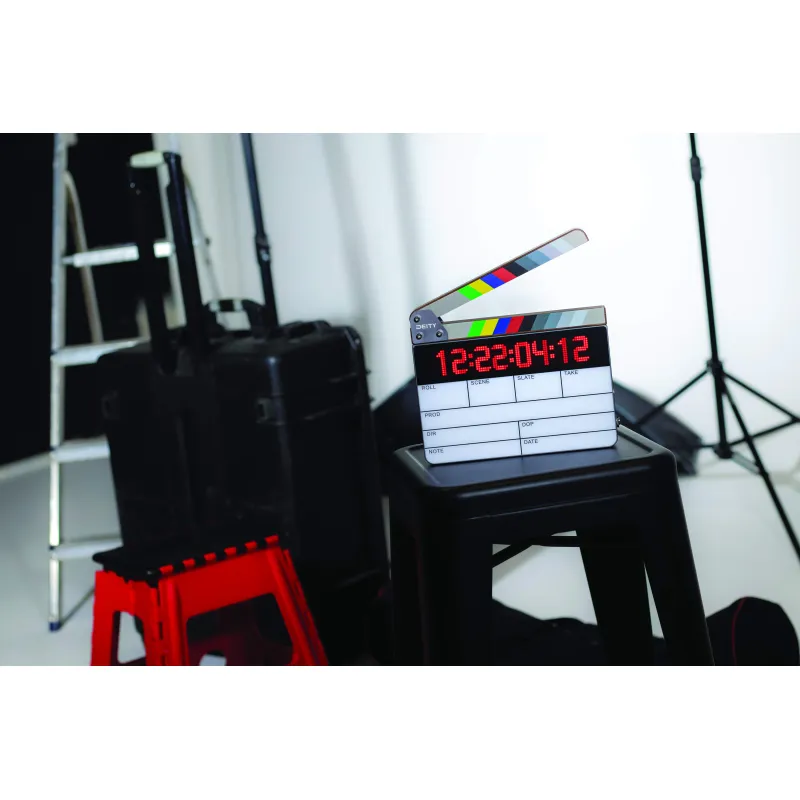

• Super Bright Dot Matrix Timecode Display
• Remote Control via Bluetooth® Phone App
• Dual TC I/O; 5-Pin LEMO® , 1/4” TRS
• Supports All SMPTE Formats, Less than 1 Frame Drift over 24 Hours
• Dual Battery Bay; Supports NP-F550 Batteries
• Features a Dimmable Backlight
• USB-C Charging Port; 25 Watt
• Flippable Timecode Display for Tail Slating

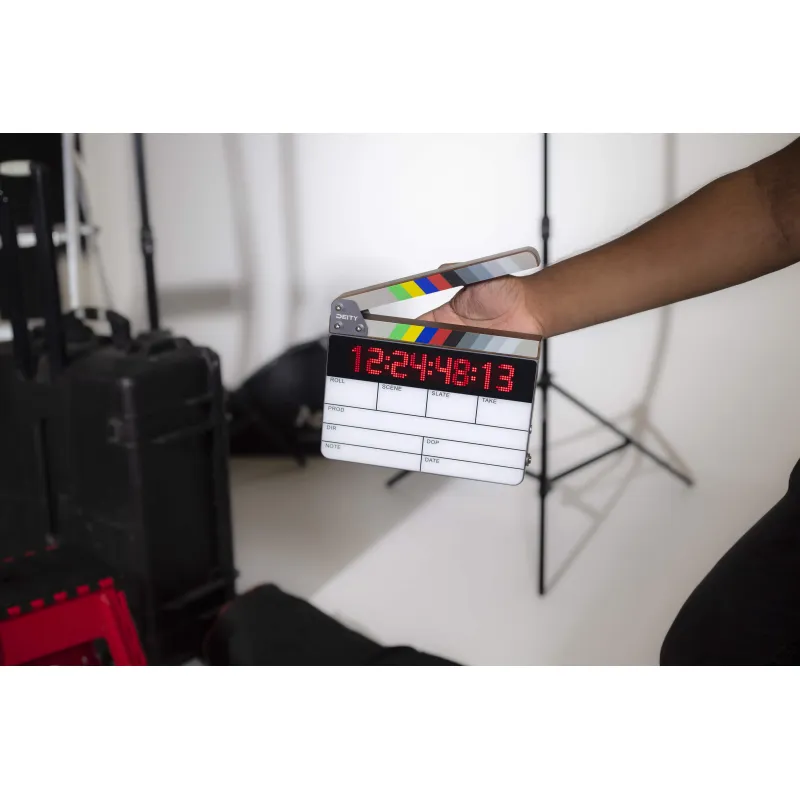

The Deity TC-SL1 is the world’s first Bluetooth® enabled smart slate. Wirelessly sync the TC-SL1 from up to 250 feet away using its free phone app, Sidus Audio. You can also sync the TC-SL1 using your TC-1 timecode boxes. Featuring both 5-Pin LEMO® and 1/4” TRS, the TC-SL1 will work with your existing timecode cables. And, with the flick of a switch, the TC-SL1 can accommodate tail slating. The two NP-F550s can be hot-swapped between each other and the USB-C port can support up to 25W charging.

Delivery Content

• Deity TC-SL1 Wireless Timecode Slate
• 2x Deity NP-F550 7.4V 3500mAh Batteries
• 30W USB-C Charger

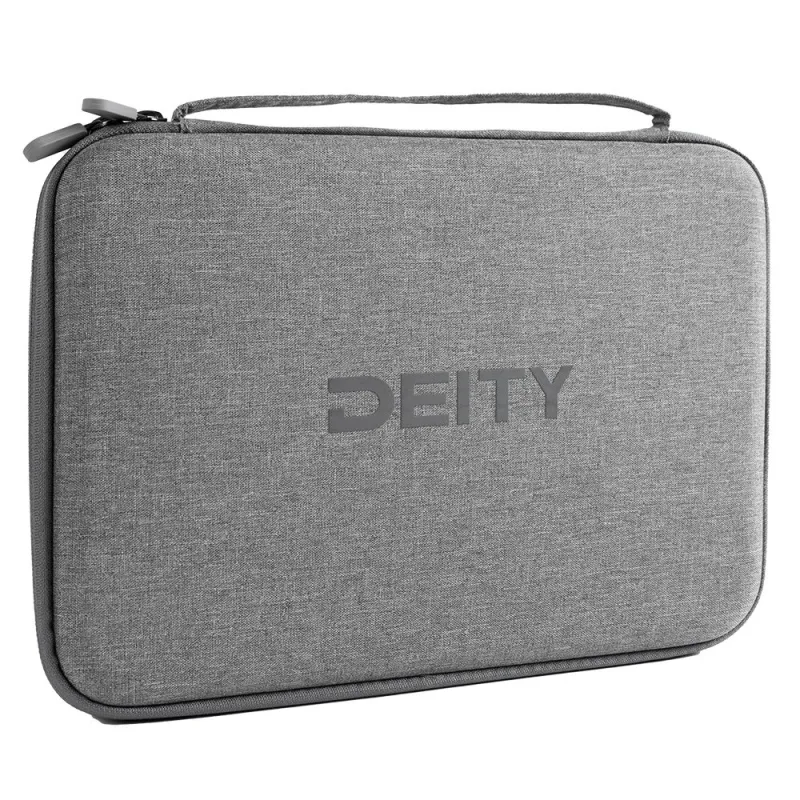

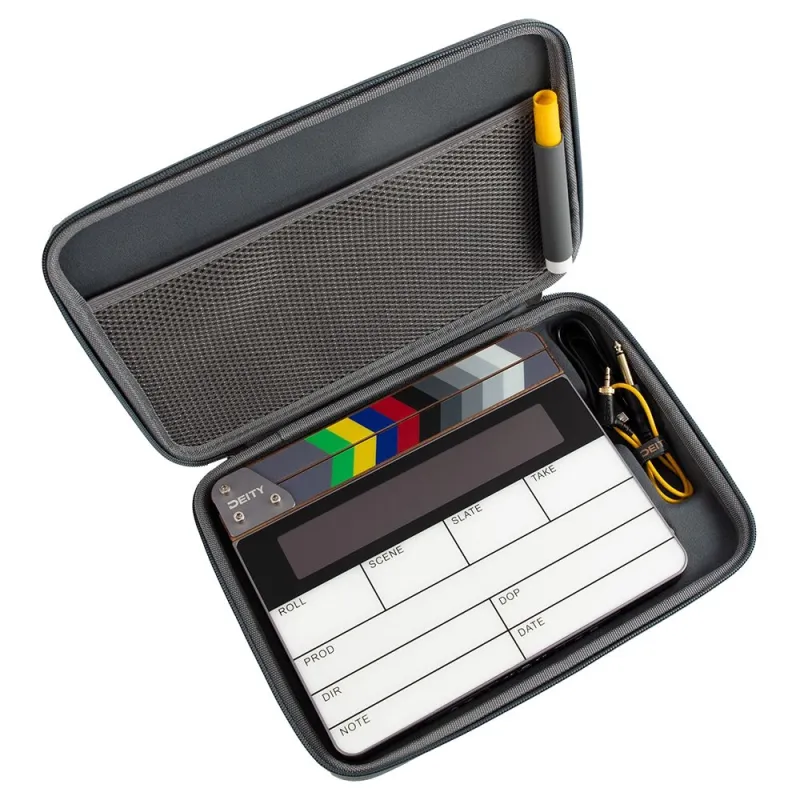

• Carrying Case
• Warranty Card and Manual

Specifications

• Timecode: SMPTE
• Front Screen: Dot Matrix

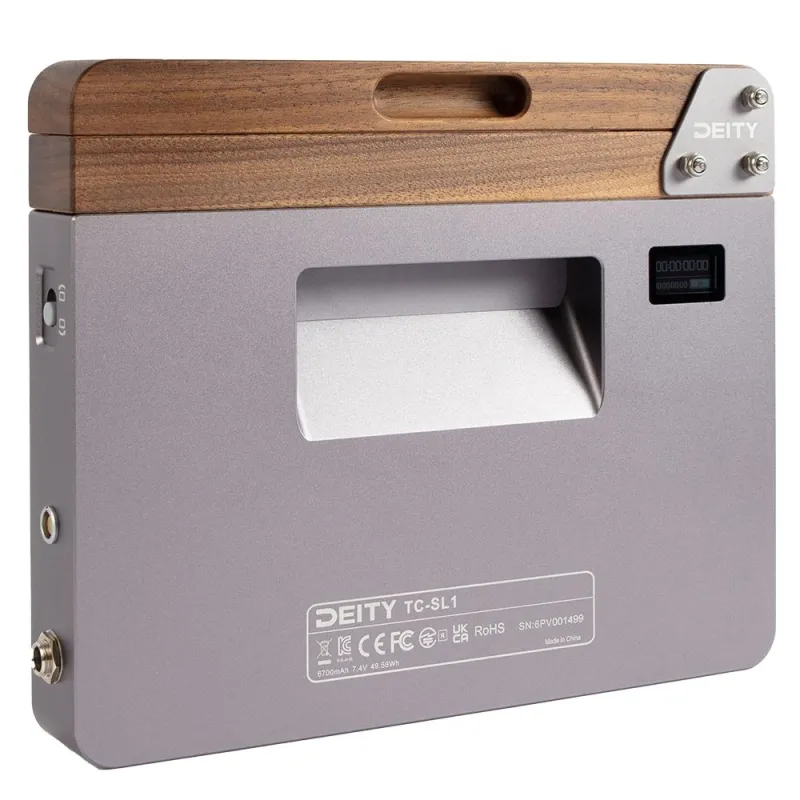

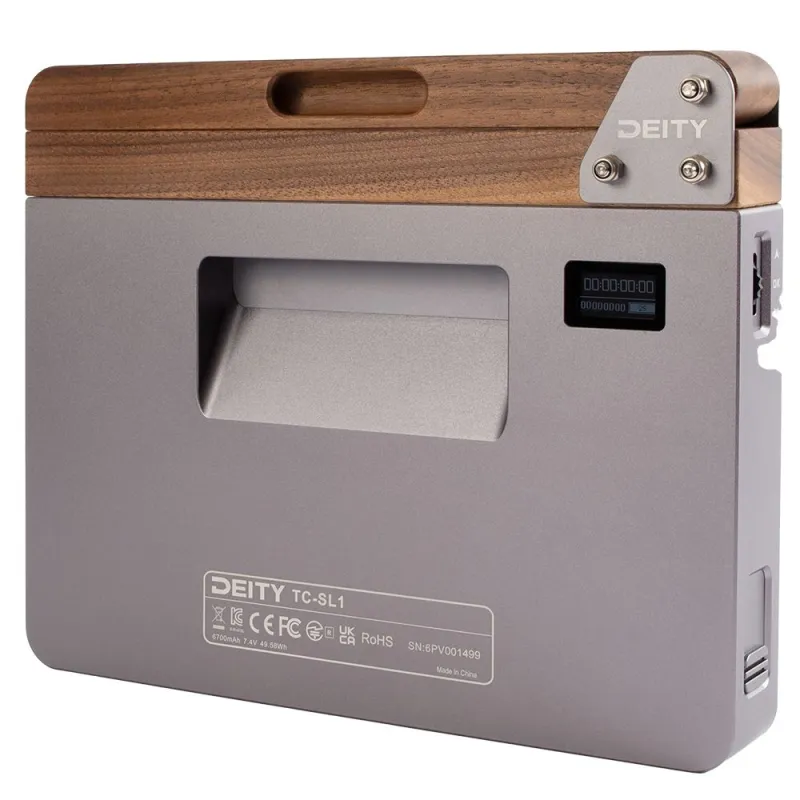

• Rear Screen: 1” OLED
• Wireless Type: 2.4G RF Sync Pulse Bluetooth® 5.1LE
• Wireless Range: ≤ 30ft - 2.4G RF ≤ 250ft - BT 5.1LE
• RF Wireless Channels: 8
• Timecode Accuracy: ±0.5 ppm
• Drift: < 1 Frame/24Hrs
• Frame Rates: 23.98, 24, 25, 29,97, 29.97DF, 30
• Timecode Input / Output: 5-Pin LEMO® 1/4” TRS
• Battery Life: Up to 120Hrs
• Battery Type: NP-F550
• Battery Capacity: 2x 3500mAh
• Charging Port: USB-C
• Charging Time: 120 Minutes
• Dimensions: 231mm x 185mm x 41mm (9.1” x 7.3” x 1.6”)
• Weight: 1,04 kg (2.3lbs)
