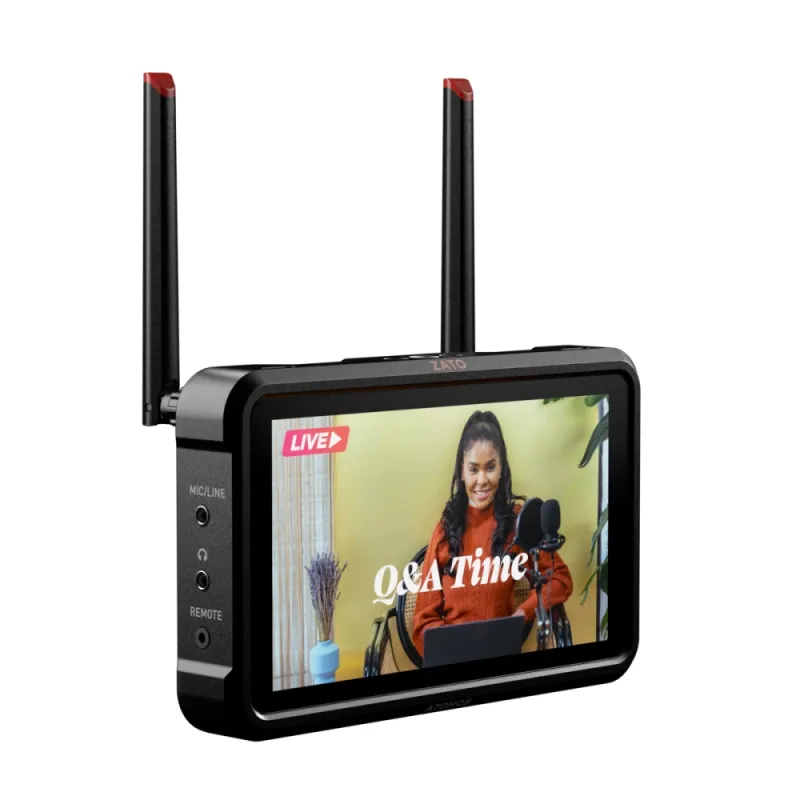

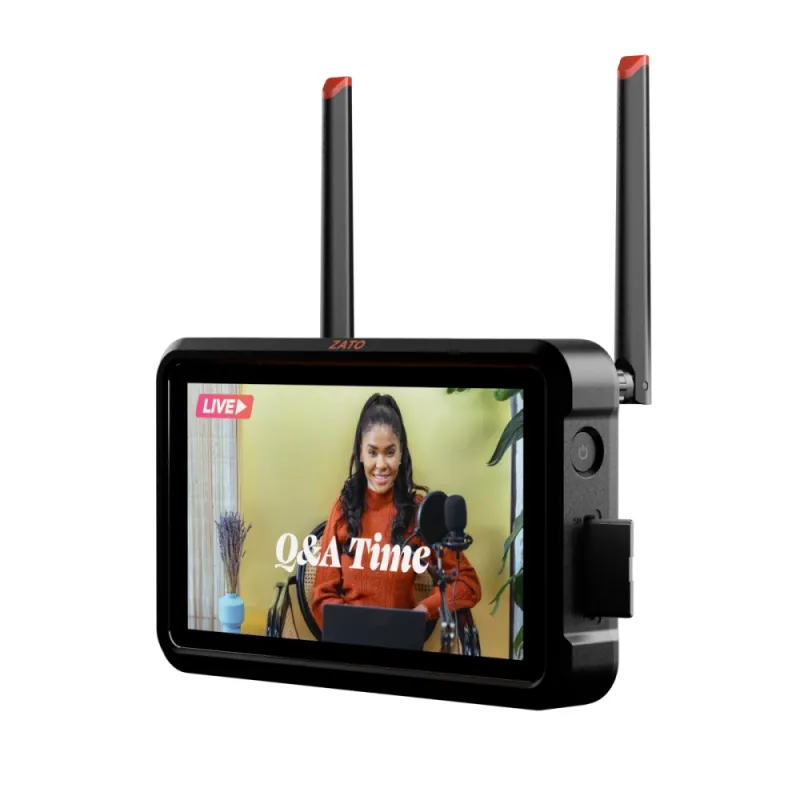

Atomos ZATO Connect (ATOMZATC01)
SKU: 20874
Būklė: Naujas produktas
| Type of Product | Video Streaming Solutions |
| Type of Product | Straumēšanas kamera |
| Type of Product | Recorders |

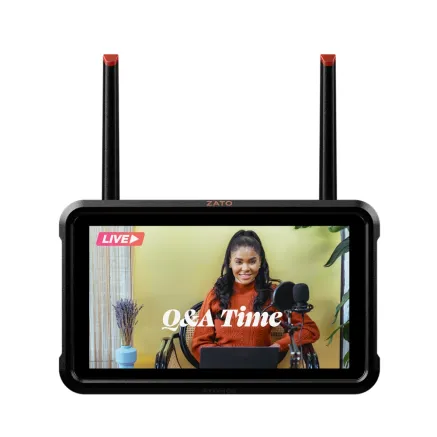

Atomos ZATO Connect (ATOMZATC01)
- Livestream directly to Facebook Live, Twitch, YouTube, and more
- Transform HDMI and mirrorless cameras with plug-and-play UVC webcam out for meetings and presentations in Microsoft Teams, Skype, Slack, Zoom, and many others
- Connect almost any HDMI device up to 1080p60 or any USB webcam at up to 1080p30
- Mix audio levels from HDMI camera input, USB webcam & external mic/line inputs
- Add custom PNG overlay graphics to create lower thirds, logos, and watermarks
- Monitor Assist features including zoom 2x, 9 grid and extensive frame guides
- Stream, record, and output your program simultaneously, to get your content online without limitation
- Playback pre-recorded content “as live” via network streaming, UVC webcam, HDMI, or all at the same time
- 5-inch full HD, SuperAtom (1000nit) display for great visibility in even the brightest of locations
- Wi-Fi 5 and 1Gbe Ethernet (via included USB-C adapter) to share your work with the world
ZATO CONNECT is the second fully integrated device in the CONNECT range and creates a whole new category of product for ATOMOS. The 5-inch ZATO CONNECT has been designed to be a compact, easy-to-use gateway to ATOMOS Cloud Studio. The device supports nearly all HDMI and USB UVC sources for livestreaming and video conferencing. The device features Wi-Fi 5 and Gigabit Ethernet (via USB-C) to ensure maximum network compatibility. In addition to streaming to Facebook Live, Twitch, YouTube, and other social sites, ZATO CONNECT can be used to enhance web conferencing. The device will also convert HDMI sources to webcam signals, so they can be used with Discord, Microsoft Teams, Skype, Slack, WebEx, Zoom, and other conferencing software. AtomOS Lite software contains all the essential tools to combine sources, record streams, and overlay graphics to make the ZATO CONNECT extremely easy to setup and operate.
In the Box
(1) Atomos ZATO Connect monitor unit
(2) Wi-Fi Antennas with black caps
(5) Antenna colored caps (White/Red/Yellow/ Black/Green)
(2) Antenna Top Caps
(2) Antenna Mount Cover
(1) USB-C to USB-C Cable
(1) Antenna Storage Pouch
(1) Quick Start Guide
(1) Screen Cloth
Technical Daten
| Physical Specifications | |
|---|---|
| Dimensions (W x H x D mm) | 151mm / 5.94" x 91,5mm / 3.6" x 29,5mm / 1.16" |
| Weight | 245g / 8.64oz. |
| Environmental | |
| Ambient operating temperature | Up to 40 Degrees Celsius |
| Construction and Control | |
| Body | Polycarbonate ABS Plastic |
| Cooling | Passive |
| Multi-function button | Power / lock Screen |
| Network Config Settings | Auto-Join WiFi, DHCP, Manual Network Configuration |
| Power | |
| Input voltage | 6.2V to 16.8V |
| Operating power | 10W |
| Compatible batteries | 1 x NP-F / L-Series |
| Battery voltage | 7.2V |
| DC in connector | via locking DC Jack on optional Battery Eliminator (5.5mm OD & 2.1mm ID) |
| Dtap | Via optional D-Tap to DC cable |
| USB | USB-C PD |
| Display | |
| Touchscreen | SuperAtom IPS panel (capacitive touch) |
| Size | 5.2" |
| Resolution | 1920 X 1080 |
| Viewing angle | 178 + H & V |
| PPI | 427 |
| Bit depth | 10-Bit (8+2 FRC) |
| Backlight Type | Edge |
| Brightness (cdm2 / nits) | 1000 |
| Color Gamut | Rec709 |
| Calibration support | TBC |
| Video Input | |
| HDMI | 1 x HDMI 1.4 |
| USB | Webcam up to 1080p30 |
| Bit Depth | 8-Bit |
| Video Chroma Subsampling | YCbCr 420 |
| File Naming | |
| Standard | Unit Name + Date + Time |
| Video Output | |
| HDMI | 1 x HDMI 1.4 |
| Network | |
| Eternet | via USB-C Dongle |
| Wi-fi | WiFi 5 |
| USB Host | USB Webcam |
| Atomos Cloud | Connect to Atomos Cloud Studio services |
| Cellular | Connect to Hot Spot via Wi-Fi |
| Web Streaming | |
| USB UVC | Yes, up to 1080p30 |
| RTMP / S | Yes, authenticate via Atomos Cloud Studio |
| Audio In/Out | |
| Audio Quality | 16-Bit / 48kHz |
| Audio Codec | PCM (In & Out) & AAC (Streaming & Recording) |
| HDMI | 2ch, input dependent |
| Analogue Audio in | 3.5mm Jack - 5v power |
| Analogue Audio Out | 3.5mm Jack |
| Headphone out | 3.5mm Jack |
| Resolution and Frame Rates (Record, Monitor & Playback) | |
| FHD 1920 x 1080 Progressive | up to 1080p60 |
| 1280 x 720p | up to 720p60 |
| Recording CODEC | |
| H.264 | up to 1080p60 |
| Playback | |
| Loop | Yes |
| H.264 | up to 1080p60 |
| UVC Out | Yes up to 1080p30 |
| Monitoring | |
| SDR | Rec.709 |
| Multi Input / Switching | |
| Graphic overlays | Upload custom PNG graphics |
| Supported media | |
| SD | SD UHS-1 (up to 128GB size) |
| File System | exFAT |
| On screen tools | |
| 2 x Zoom | Tap to zoom |
| Social Frame guides | 16:9, 1.91, 4:3, 1:1, 4:5, 9:16 |
| Grid markers | 9 Grid |
| Display Flip | Vertical and Horizontal (Selfie mode) |
| Supported Applications | |
| Video Codecs | All Applications with support for H.264 in .MP4 wrapper |
| What’s in the box | |
| Accessories included | 2 x Wi-Fi Antennas with black caps, 5 x Antenna colored caps: White/Red/Yellow/ Black/Green, 2 x Antenna Top Caps, 2 x Antenna Mount Cover, 1 x USB-C to USB-C Cable, USB-C to Ethernet Adapter, 1 x Antenna Storage Pouch, 1 x Quick Start Guide, 1 x Screen Cloth |
| Warranty | |
| Standard | 1 Year |
| Target use / User | |
| Mirrorless Cameras | Yes |
| Compact Cinema | Yes |
| Cinema | Yes |
| Director Monitor | Yes |
| Games Capture | Yes |
| Streaming | Yes |
| DIT/Video Village | Yes |
| Pro Video | Yes |
| Gimbal/Crane | Yes |
| Hobbyist | Yes |
| Wedding | Yes |
