DATAVIDEO NVD-35MKII H.264/SRT STREAM DECODER WITH HDMI OUTPUT NVD-35MKII

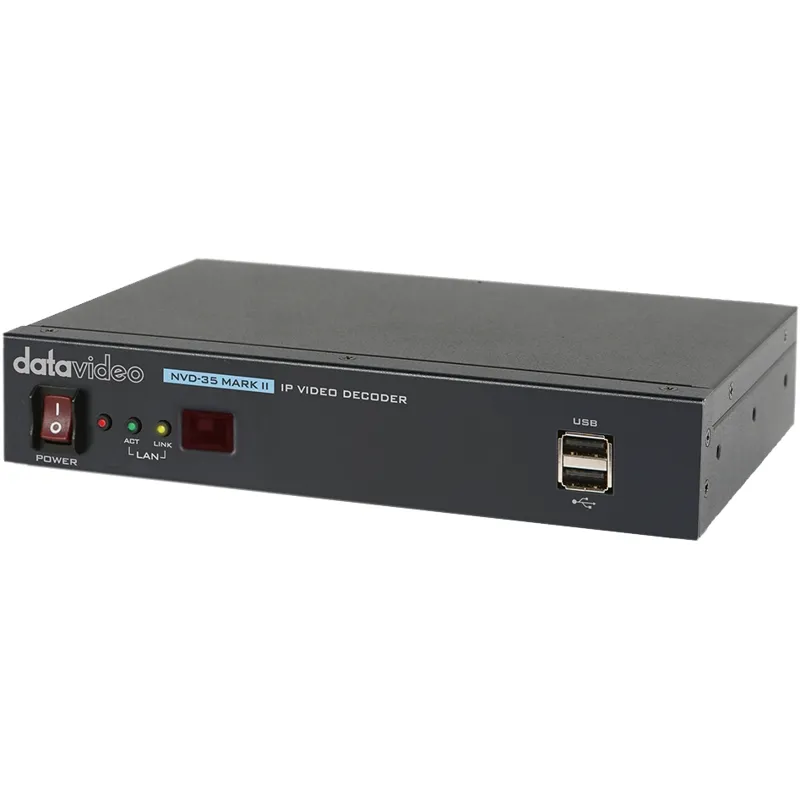

Datavideo NVD-35MKII Overview

The NVD-35 Mark II Streaming IP Video Decoder with SDI Output from Datavideo decodes streams from the Internet, CDNs, and dvCloud network. It supports common protocols like RTP/RTSP, RTMP, SRT, and UDP, outputting signals up to 1080p60 resolution.

Streaming Protocol Support

• RTSP over UDP (Unicast / Multicast)
• RTSP over TCP
• RTSP over HTTP
• SRT (Secure Reliable Transport)
• MPEG-TS over UDP
• RTMP Pull
• RTMP Push (Internal Server)
• UDP raw (Unicast/Multicast)
• HLS over HTTP
• MPEG-TS over TCP Pull
• Video sharing websites

Key Features

• Decodes videos from Datavideo encoders, YouTube Live, UStream, and other major CDNs.
• Supports common streaming protocols including SRT, RTSP, RTMP, UDP, TCP, HTTP, HLS, and MPEG-TS.
• Seamlessly compatible with dvCloud for live streaming and IPTV set-top box control.
• Real-time video flipping and rotating functions.
• RMC-12 remote control included.

Specifications

• Model Number: NVD-30 MARK II
• Audio/Video Input: Various streaming protocols
• Audio Output: 2 x RCA(L/R), HDMI embedded audio
• Video Output: Composite (analog), HDMI (digital)
• Network Feature: 1x RJ-45 Female (10/100M Ethernet) DHCP/Static IP
• Supported Video Resolution: Various resolutions up to 1080p60
• Control: Web browser UI, TCP/IP Socket commands
• Update: Automatic firmware upgrade
• Power: AC 100-240V Switching Adaptor, DC 12V / 0.5 A
• Environmental Conditions: Operating temperature 0-40C, Storage temperature -10-60C
• Dimension (LxWxH): 220 x 143 x 47 mm
• Weight: 1 kg
• Whats in the Box: NVD-30 MARK II product, AD Switch DC 12V, Remote Control
