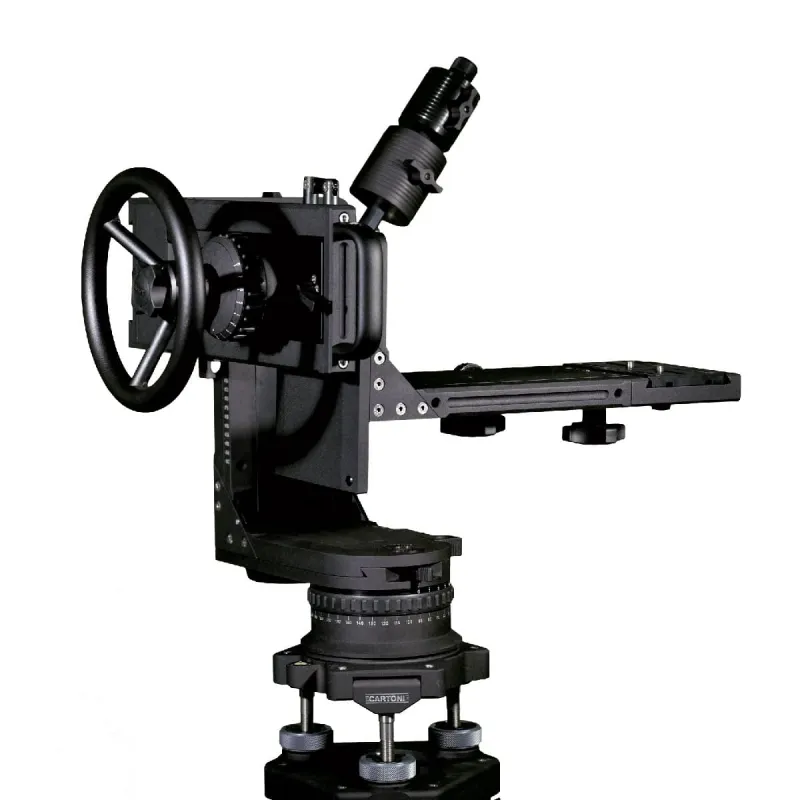

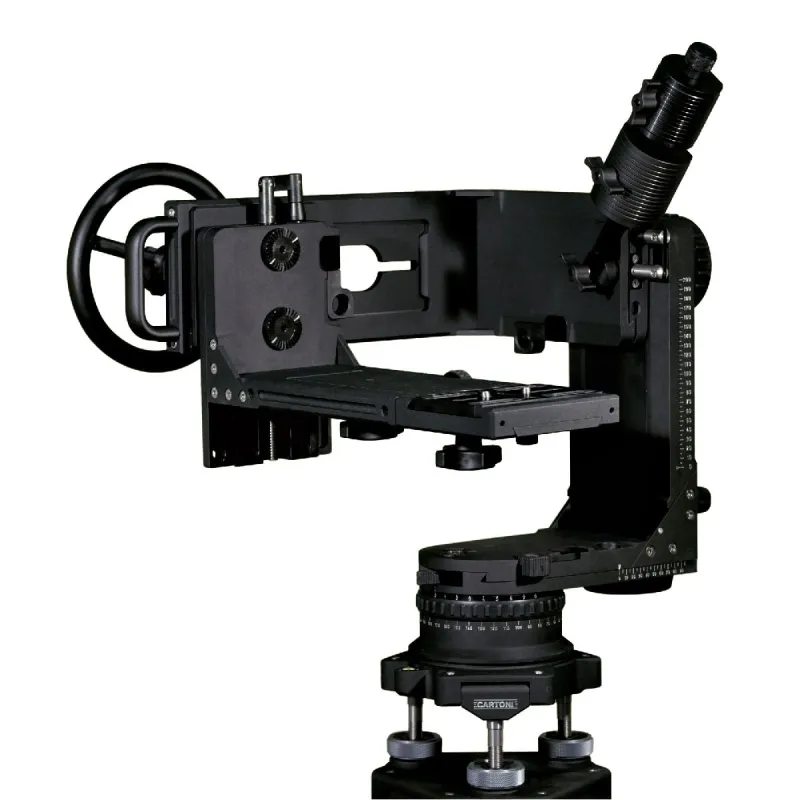

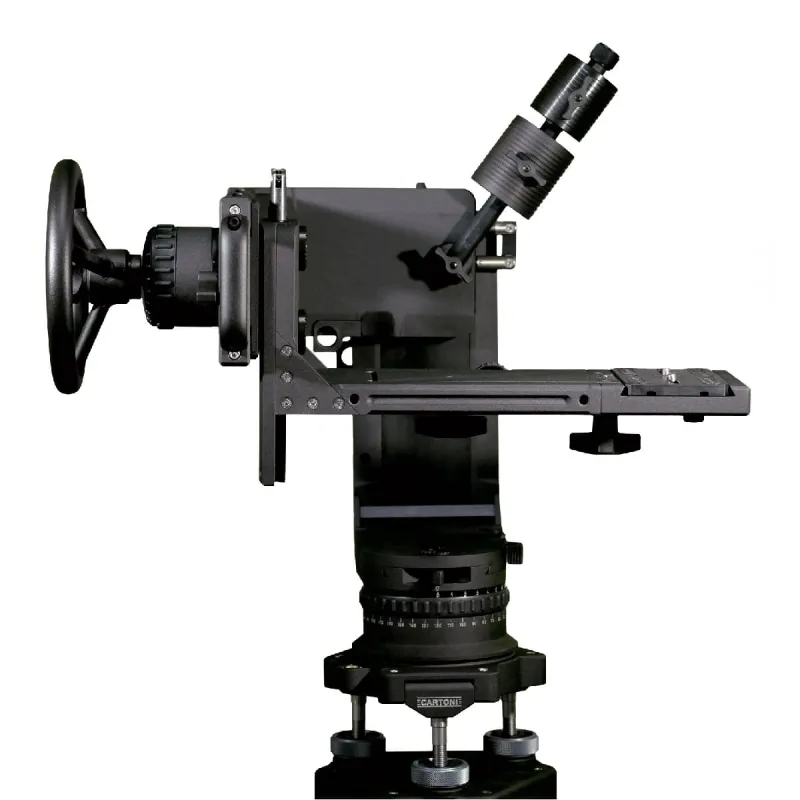

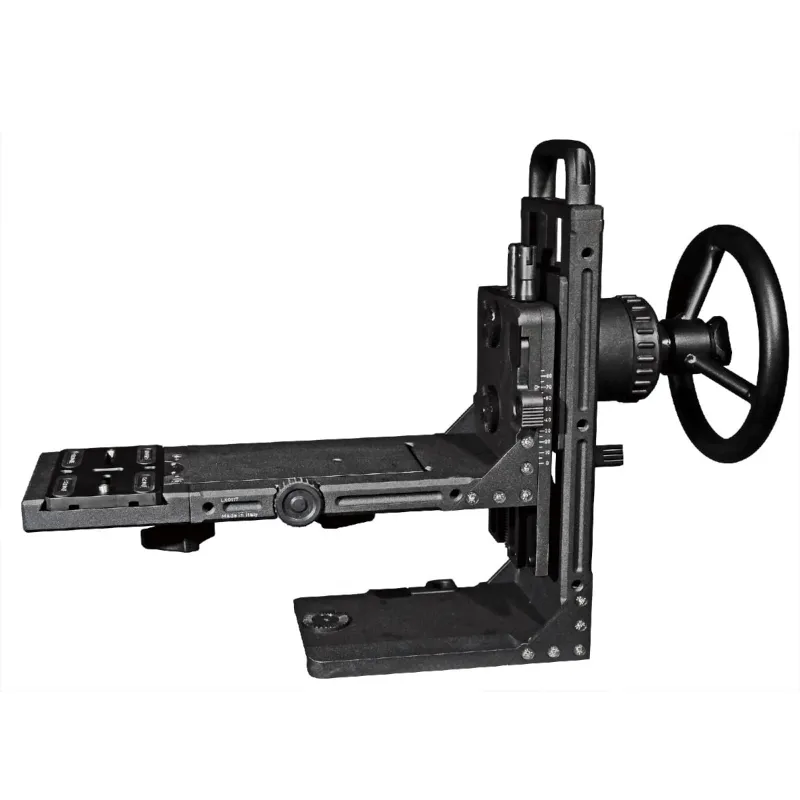

Cartoni Lambda 50 Third Axis HL5000/TA

The 3rd Axis for Lambda 50 adds the roll axis to the classic nodal head.

The Lambda 50 3rd Axis is mounted in replacement of the Lambda 50 camera stage, creating 3 independent rotation axis for pan, tilt and roll.

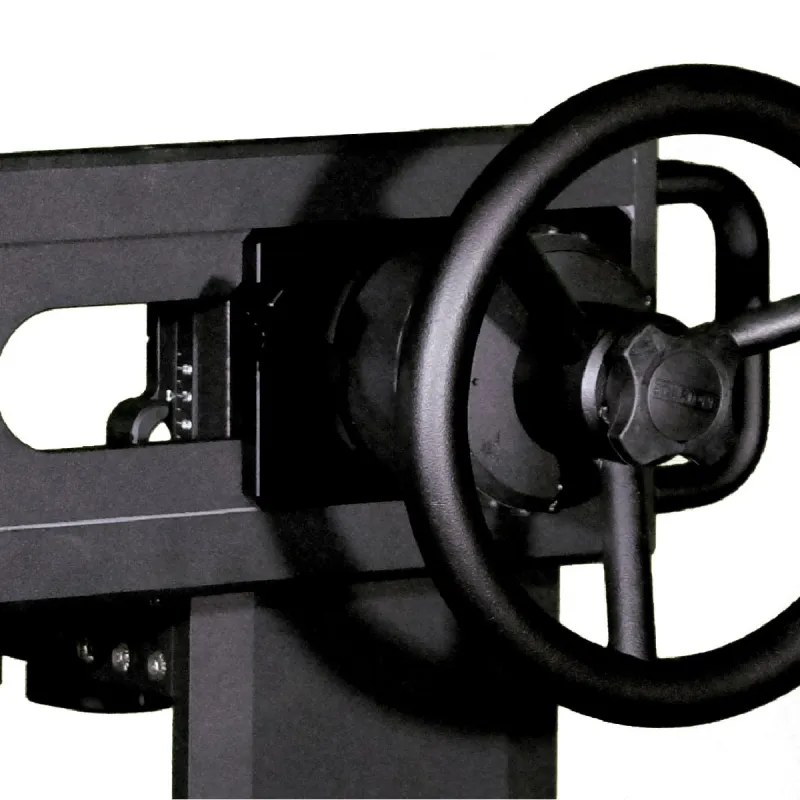

The precision cranks adjusting the slide allow the nodal setting to be combines on all 3 axis.

 It includes an additional 7 steps + zero fluid drag unit and a rod with counterweight to compensate off-set positions.

Technical Data :

• Weight : 15.5 kg / 34 lbs
• Maximum Payload Capacity : 40 kg / 88 lbs
• Bowl Diameter : Plate
• Fluid Drag : 7 steps + 0
• Tilt Range :360°
• Operational temperature : -40°/+60° Celsius

1x Lambda 50 Third Axis
1x Hand wheel
1x Counter weight Lambda 50
