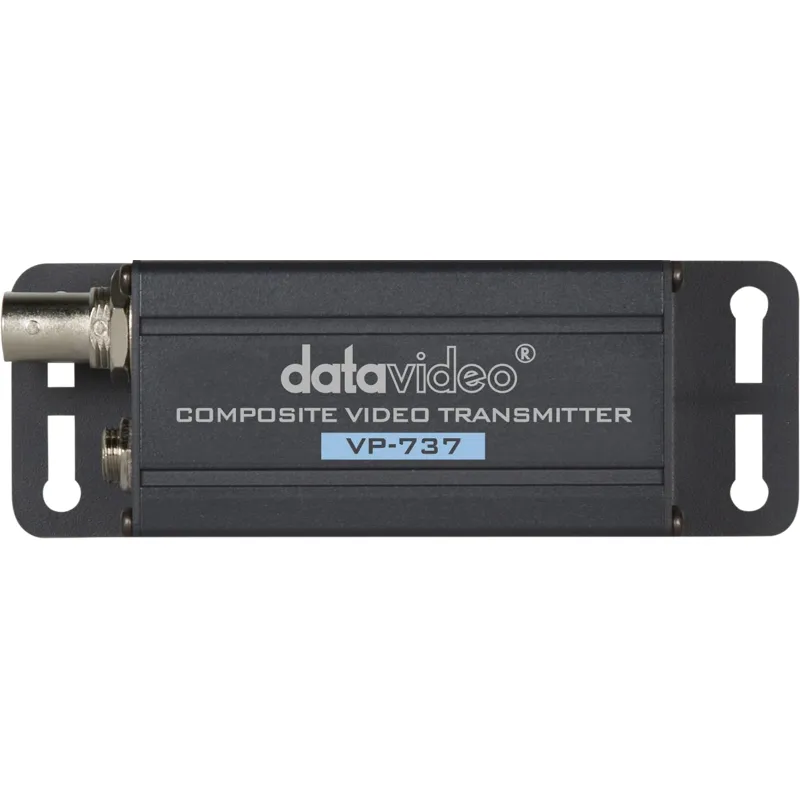

DATAVIDEO VP-737 COMPOSITE VIDEO REPEATER & TRANSMITTER VP-737

Composite Signal Repeater

• Wired composite video transmission as far as 200 meters.
• Completely adaptive - quick, easy installation and setup, no configuration required.
• Cat5e extension design make use of existing Cat5e or better wiring infrastructure.

Specifications

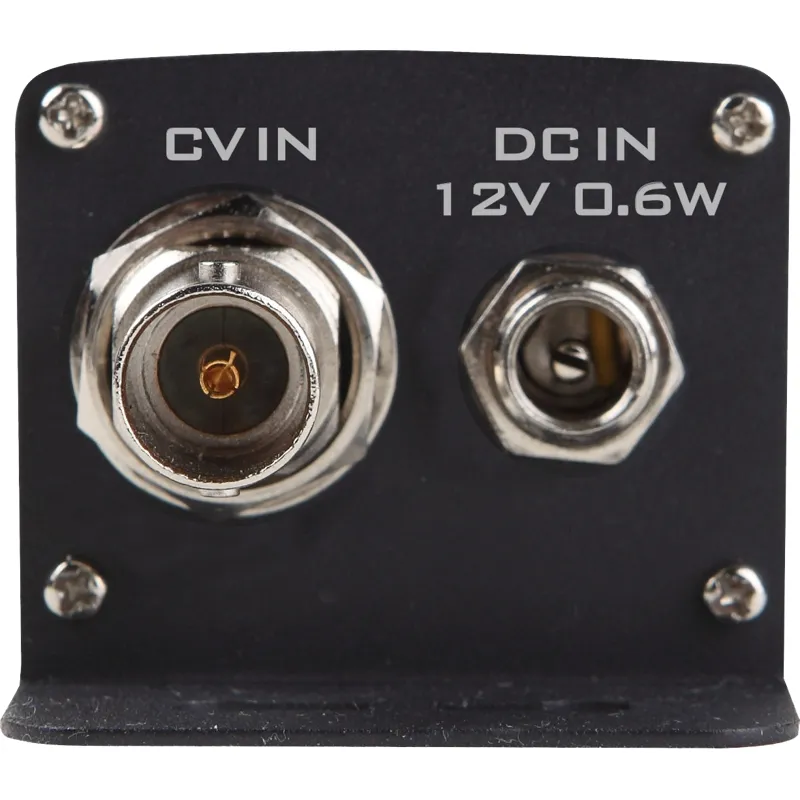

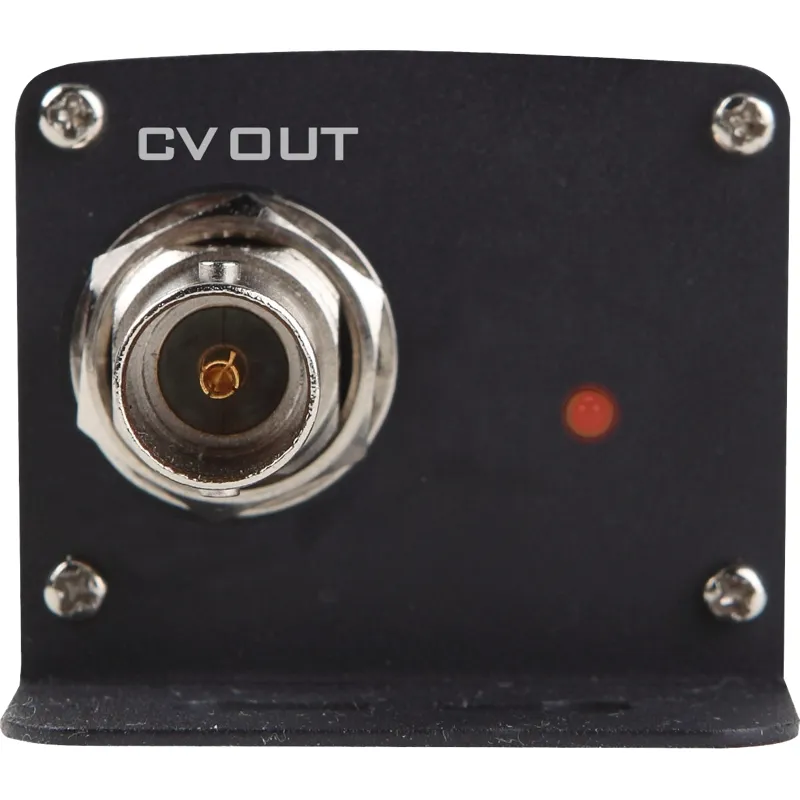

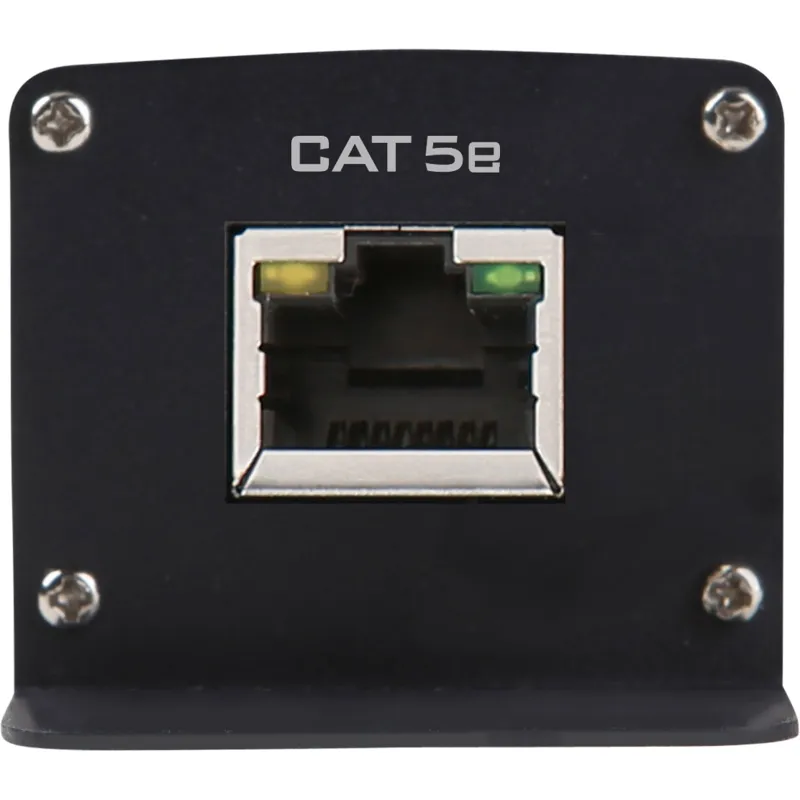

• Video and Signal: Transmitter: CV Input (BNC), DC Input, CAT 5 Output (RJ-45), Receiver: CV Output (BNC), CAT 5 Input (RJ-45)
• Standard: SD: SMPTE 259M
• Video Format: 625i PAL, 525i NTSC
• Power: DC 12V
• Dimension (LxWxH): 107 x 38 x 32mm
• Weight: 0.1 kg
• Operating Temp. Range: 0~40 °C
