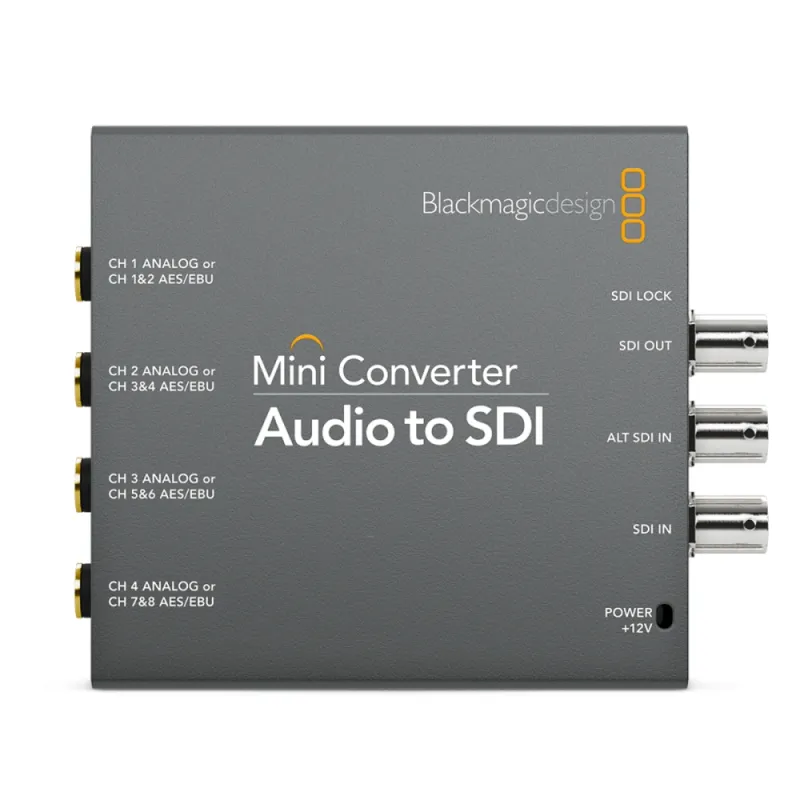

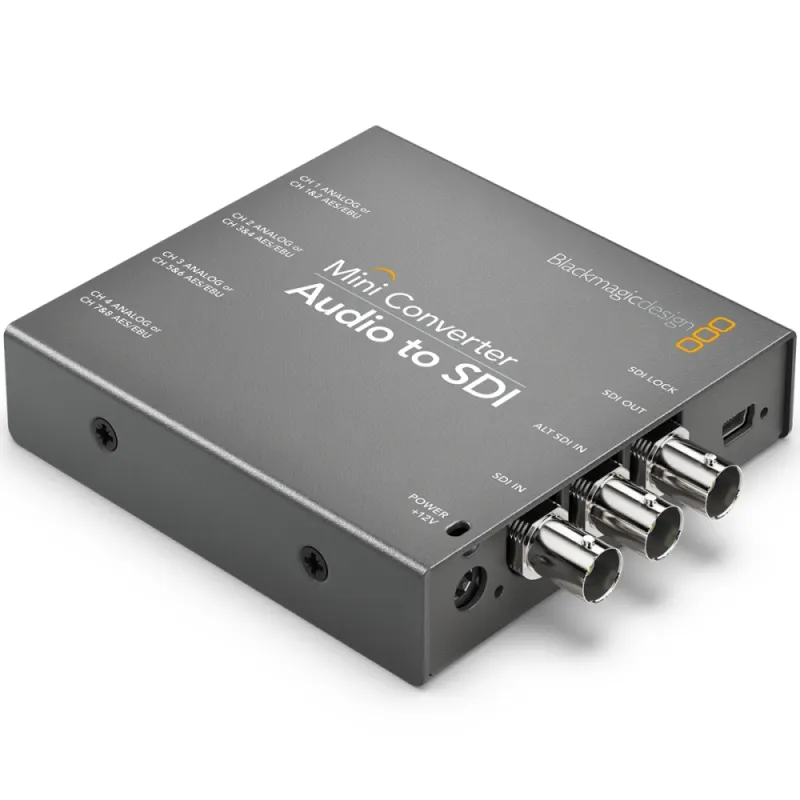

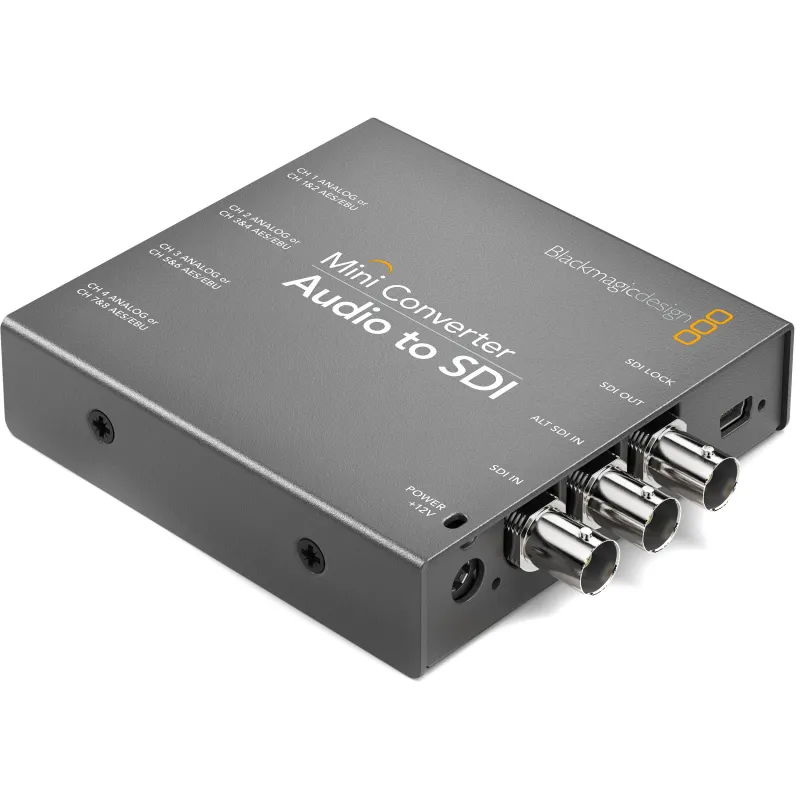

Blackmagic Design Blackmagic Mini Converter Audio to SDI (BM-CONVMCAUDS)

Blackmagic Design Mini Converter Audio to SDI (BM-CONVMCAUDS)

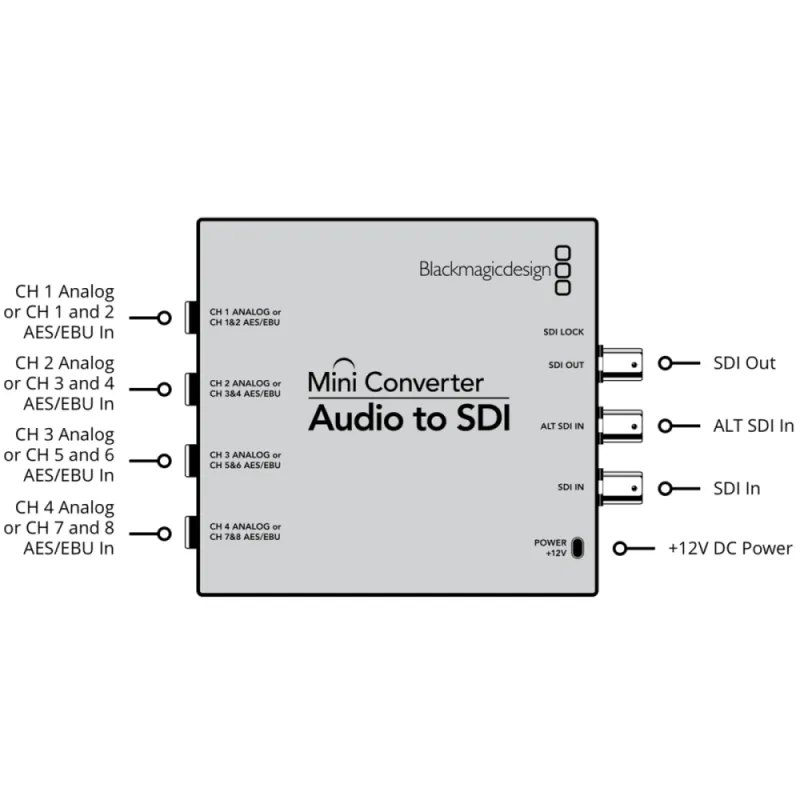

It provides all the prerequisites to 4 analog audio tracks or 8 AES / EBU audio tracks embedded in an SDI video cable. Use this solution to integrate audio from devices such as mixers and analog decks in your SDI signal, so you can use with SDI routers and decks can, or to connect additional audio channels to video converters.

SDI Video Input

Switchable between SD, HD and 3 Gb/s SDI.

SDI Video Outputs

Automatically matches the SD, HD and 3 Gb/s SDI video input.

Analog Video

None

Analog Audio

4 channels of professional balanced analog audio with standard 1/4 inch jack connections.

AES/EBU Digital Audio

4 channels of professional balanced analog audio with standard 1/4 inch jack connections.

SDI Redundant Input

Automatically switches over if main SDI input is lost.

Multi Rate Support

Auto detection of HD or standard definition SDI inputs.

Updates and Configuration

Via USB 2.0 high speed. (480 Mb/s)

Reclocking

Yes

SDI Compliance

SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601.

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2

SDI Color Space

YUV

SDI Auto Switching

Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI.

SDI Format Support

625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60.

Analog Format Support

None

Analog Color Space

None

Analog Color Precision

None

Software Control

Mac OS X and Windows software upgrade via USB.

Internal Software Upgrade

Via included updater application.

Settings Control

Mini Switches or USB software.

Power Supply

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Consumption

8.40 Watts

Operational Voltage Range

12V

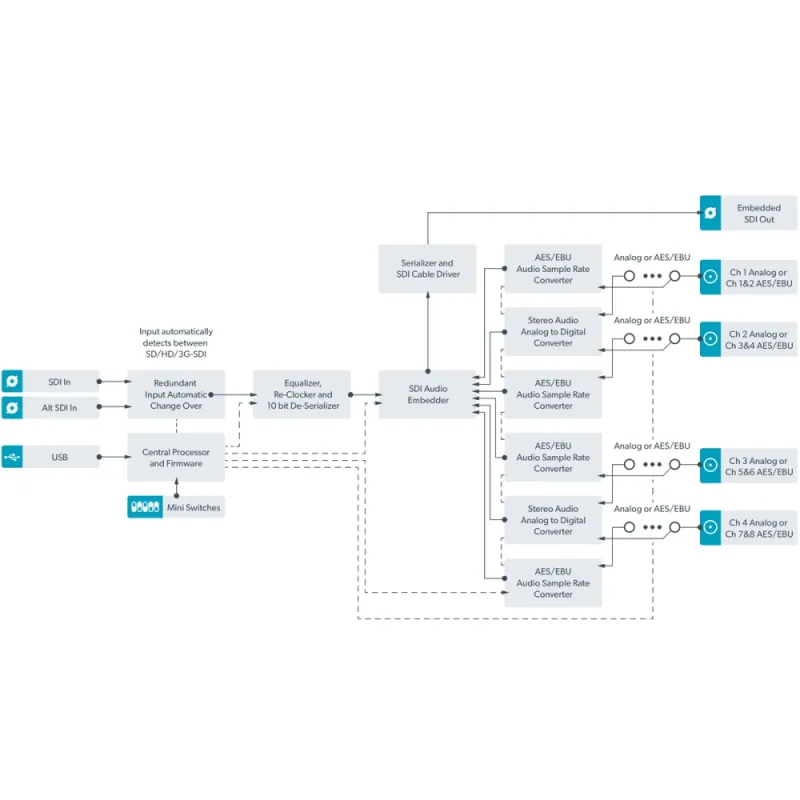

Includes everything you need to embed 4 channels of analog audio, or 8 channels of AES/EBU digital audio into any SDI video connection. Embed audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters!

World's Most Advanced Converters
Mini Converters are the world's most advanced and easy-to-use SDI converters. Built with the highest quality components and connectors, Mini Converters automatically switch between SD, HD, and 4K models switch up to Ultra HD resolutions with 6G-SDI video standards! Whether you want to convert to or from SDI, move between different SDI video formats or distribute SDI signals to multiple destinations, you get the highest quality broadcast technology in a compact and affordable design. Choose from a range of many different models, all featuring low SDI jitter and SDI re-clocking so you can use the longest SDI cable lengths and maintain pristine quality images.

Easy To Use Features

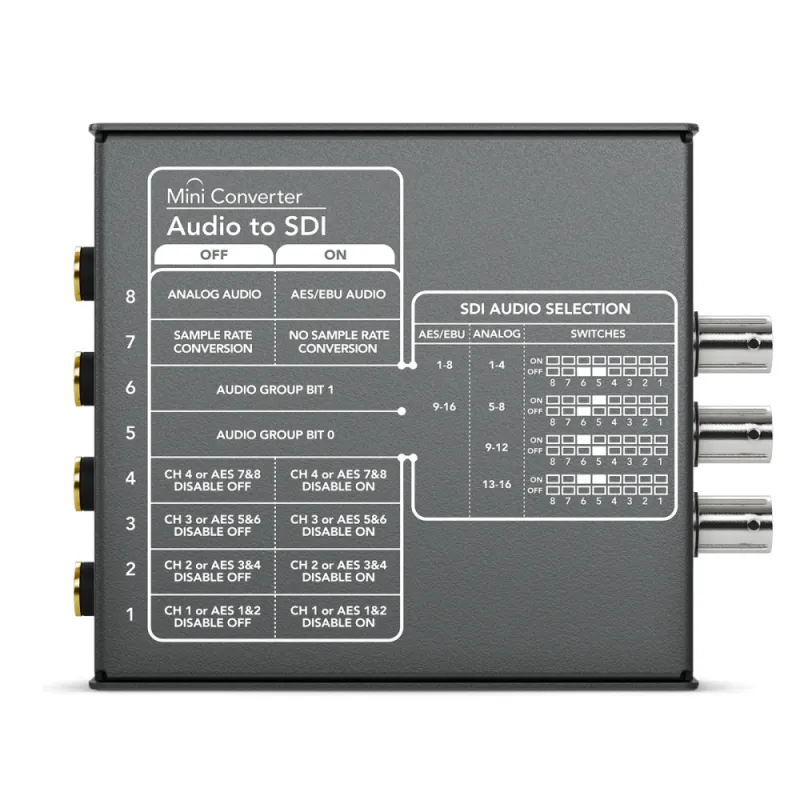

Broadcast, post production and professional A/V environments are built using SDI equipment and cabling. It’s essential when converting to and from SDI that you maintain the highest possible video and audio quality. Mini Converters are compact, affordable and easy-to-use. Settings can be changed quickly using built-in mini switches, and with a diagram showing pin settings printed on the back you never need to refer to a manual! Mini Converters use standard connections, so you get the convenience and cost savings of using your own cables!



Latest SDI Technology
Mini Converters 4K models feature the latest 6G-SDI technology that operates at four times the data rate of normal HD-SDI. 6G-SDI is fully compatible with all SD-SDI and HD-SDI equipment, so you can connect to your existing equipment. Mini Converters detect the video input and automatically switch between formats.
