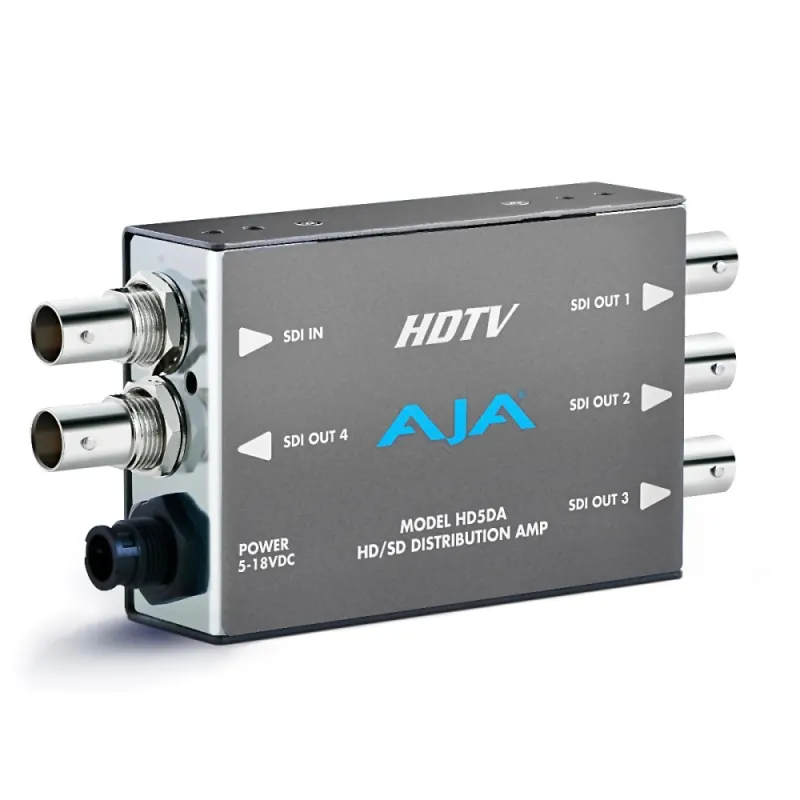

AJA HD5DA - HD/SD-SDI Distribution Amplifier

The HD5DA is a miniature, low-cost 1×4 HD/SD-SDI distribution amplifier/repeater. Featuring four separately buffered HD/SD-SDI outputs, the HD5DA provides automatic HD cable equalization to 125 meters and automatically adapts to 143, 177, 270, 360 Mb, and 1.5Gb SDI.

Features:
- Compact HD-SDI/SDI Distribution
- Four Separately Buffered HD-SDI/SDI Outputs
- Auto Equalization
- Acts As Low-Cost Repeater
- Miniature Size

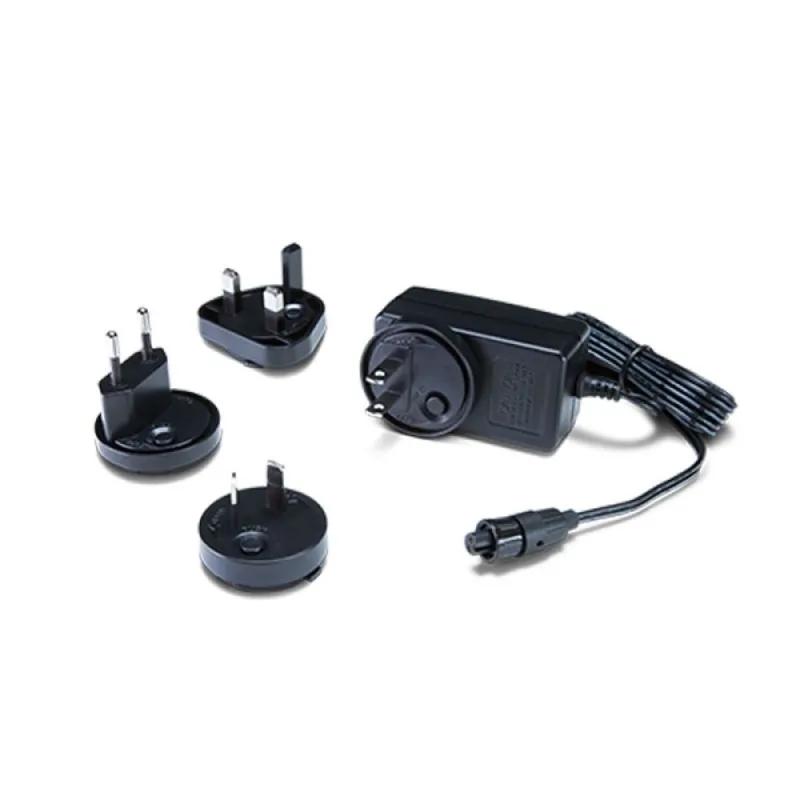

Power Supply (DWP-U-R1) NOT INCLUDED!

Specifications

Formats

1.5Gb, 143, 177, 270, 360 Mb, Auto Select

Inputs

1 HD-SDI, SDI (SMPTE 292/296), 1× BNC

Outputs

4 HD-SDI, SDI, 4x BNC
Equalizing

Return Loss

>15dB-270Mhz (Input and Output)

Power

5VDC Regulated, 2.5 Watts, Power Supply Required (NOT INCLUDED!)

Size

5.8 × 2.4 × 1 (131 × 61 × 25mm)
