Decimator Design DMON-4S Quad SDI to HDMI Converter and Multiviewer

Decimator DMON-4S Quad SDI to HDMI Converter and Multiviewer

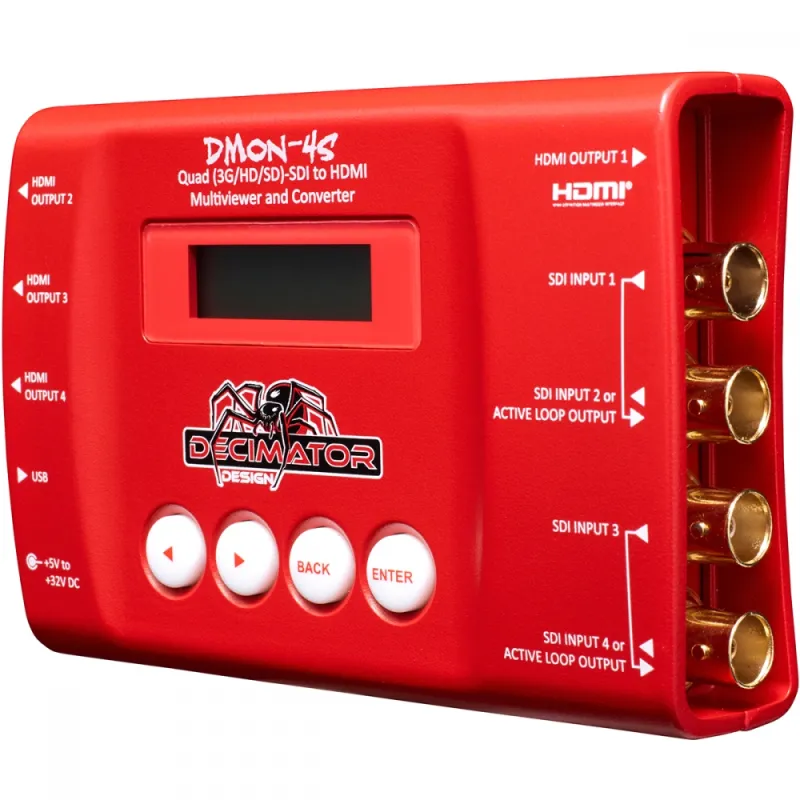

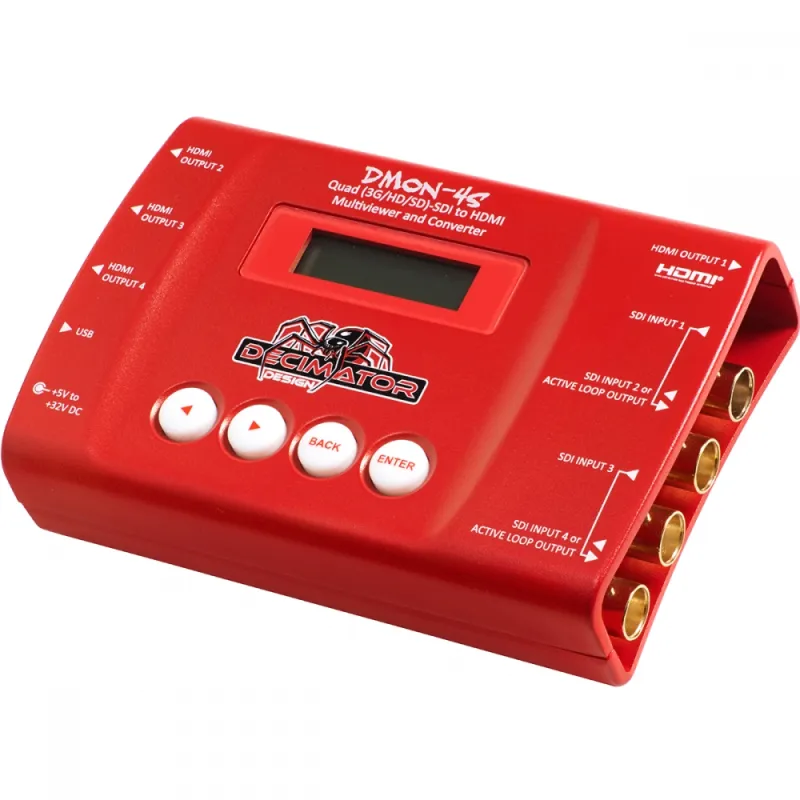

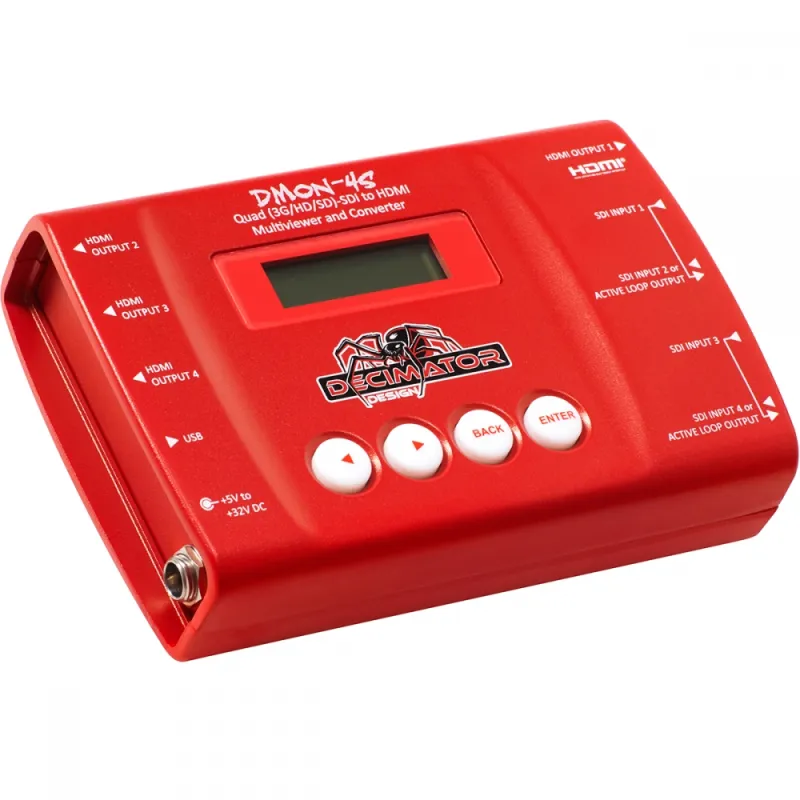

The DMON-4S from Decimator Design includes 4 independent SDI inputs and 4 independent HDMI outputs. This means you have the flexibility to either use it as an SDI to HDMI Quad Split, as an SDI to HDMI converter, or as a 1 to 4 distribution amplifier - all in one low-cost, miniature box. The independent I/Os allow for a versatile combination of uses:
– 4 independent SDI inputs to an HDMI Quad-Split output
– 4 independent SDI to HDMI converters
– 3 independent SDI to HDMI converters w/ a Quad-Split output
– 2 independent SDI to HDMI converters with loop through
– 1 SDI or Quad-Split to 4 HDMI outputs

The DMON-4S is controlled either via USB on a Mac/PC app, or on-unit using the LCD screen and button controls.

Delivery Contents:
DMON-4S
USB Cable
HDMI Cable

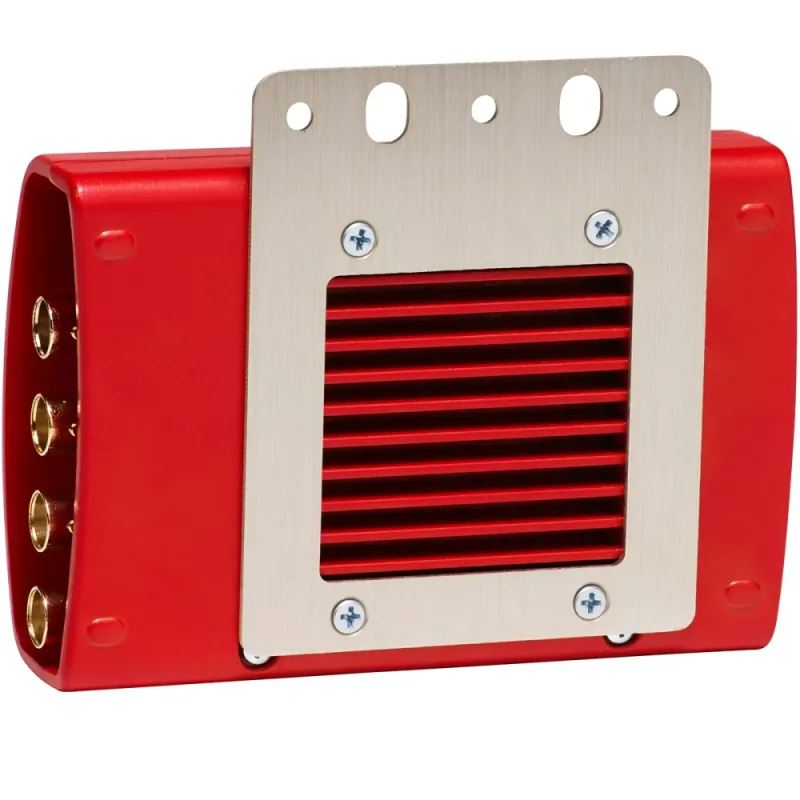

Mounting Bracket

SDI INPUT FORMATS

3G:SMPTE 424M@2.97 and 2.967Gb/s: 1080p@60/59.94/50Hz; HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s: 1080i@60/59.94/50Hz, 1080p/psf@30/29.97/25/24/23.98Hz, 720p@60/59.94/50/30/29.97/25/24/23.98Hz; SD:SMPTE 259M@270Mb/s: 625i50, 525i59.94

HDMI OUTPUT FORMATS

1080p@60/59.94/50Hz: 1080i@60/59.94/50Hz, 1080p@30/29.97/25/24/23.98Hz, 720p@60/59.94/50/30/29.97/25, 625i50, 525i59.94

POWER

+5V to +32V DC, 6 Watts; Positive Centre Pin

LCD/BUTTON MENU OPTIONS

Status for all 4 inputs, HDMI output type and source selection from SDI inputs 1 to 4; Quad-Split output format selection, Quad-Split output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size; Quad-split individual aspect format for each input of same as output, Letter-box or Pillar-box; Quad-split Border Enable, Quad-split mode reference of either Free-run or inputs 1 to 4

INPUTS

Up to 4 × (3G/HD/SD)-SDI Inputs, Input Equalization > 100M using Belden 1694A, USB for control and updates

OUTPUTS

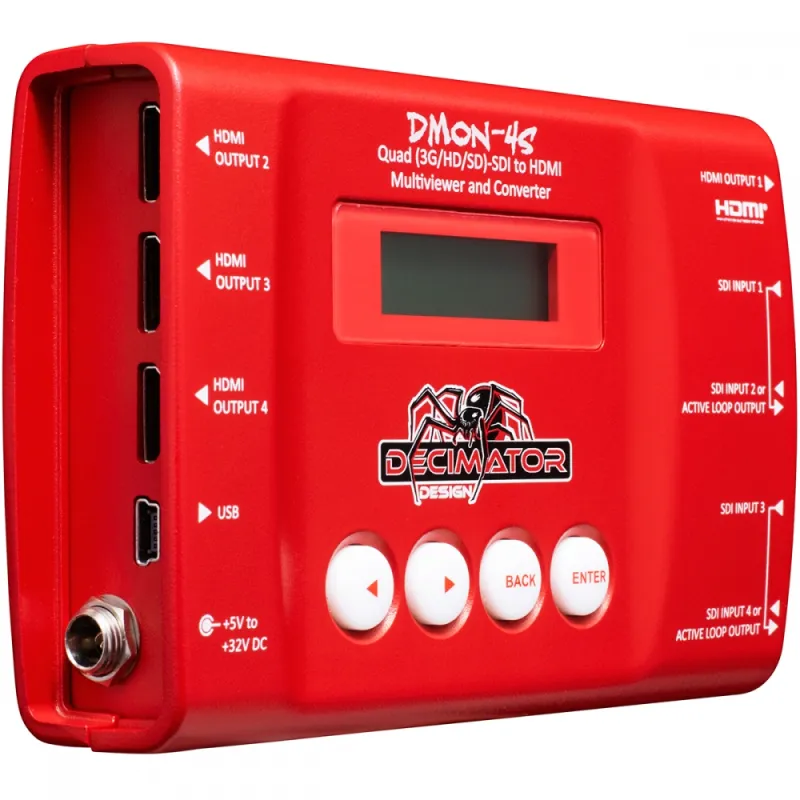

4 × mini HDMI Type C; Optional SDI Active Loop Out of inputs 1 and/or input 3

DIMENSIONS

79.5mm × 123mm × 29.5mm (3.1" × 4.8" × 1.2")
