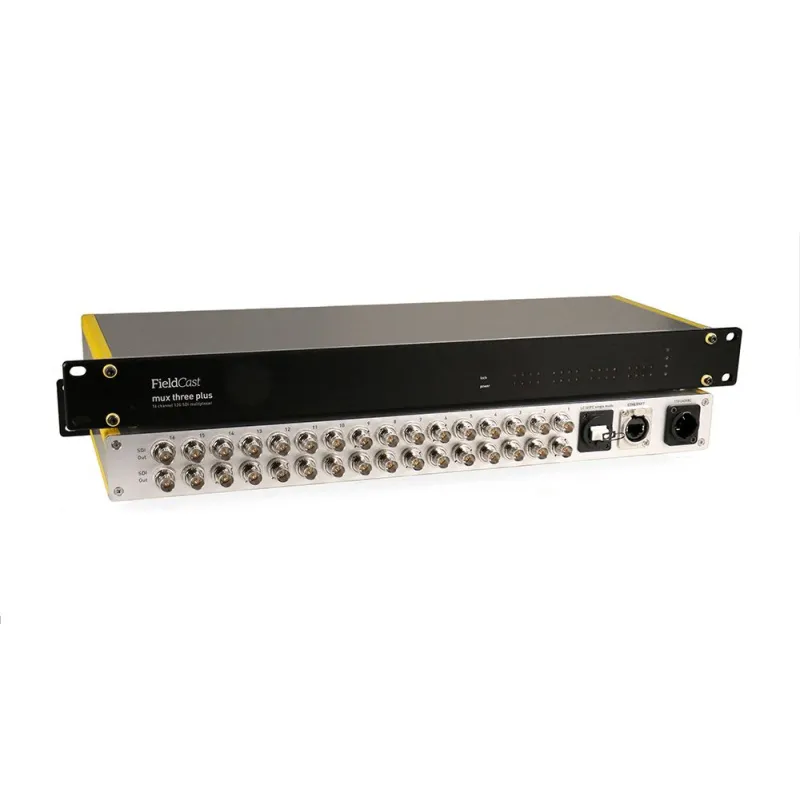

FieldCast Mux/Demux Three 12G Plus (16xSDI in/out + Ethernet over one fiber strand) CO145

Mux/Demux Three 12G Plus

The Mux/Demux Three 12G Plus enables the transmission of sixteen independent 12G SDI video channels along with full duplex 1Gb Ethernet over a single optical fiber. Availability is anticipated in late June/July 2025.

If your infrastructure supports only a single simplex fiber, this device efficiently manages all traffic. It is ideal for live events, allowing multiplexing of up to sixteen video channels and Ethernet, transferring all data from point A to B via one fiber. All 12G video signals maintain full data integrity, ensuring that input remains unchanged at output. The Ethernet connection functions like a standard Cat5 cable.

Mux Three Plus 12G Features

• 16-channel SDI input to 1-channel optical output (multiplexer)
• Aluminum design, 1U (rack) size
• 9/125 single mode fiber optic technology
• 16 12G (11.88 Gbps) SDI input channels with loopthrough output
• 75 ohm BNC connectors for all SDI inputs and outputs
• Compatible with SMPTE standards 259M, 344M, 292M, 424M, ST 2081, ST 2082
• Supports SD and HD standards up to 1080p60
• One LC single mode optical channel for SDI signals and Ethernet
• One LC single mode optical channel for upgrades
• Ethernet protocol IEEE 802.3U, IEEE 802.3z, 1000Base-Tx/Fx
• UTP RJ-45 connector for Ethernet
• Power consumption < 50 W
• Dimensions: 482 (w) x 155 (d) x 43 (h) mm
• Weight: 2090 grams

Demux Three Plus 12G Features

• Demultiplexer with 1 optical input and 16 SDI output channels
• Aluminum design, 1U (rack) size
• 9/125 single mode fiber optic technology
• 16 SDI channels 12G (11.88 Gbps) with dual SDI output
• 75 ohm BNC connectors for all outputs
• Compatible with SMPTE standards 259M, 344M, 292M, 424M, ST 2081, ST 2082
• Supports SD, HD, and Ultra HD standards up to 2160p60
• One LC single mode optical channel for SDI and Ethernet
• Power consumption < 50 W
• Dimensions: 482 (w) x 155 (d) x 43 (h) mm
• Weight: 2100 grams
