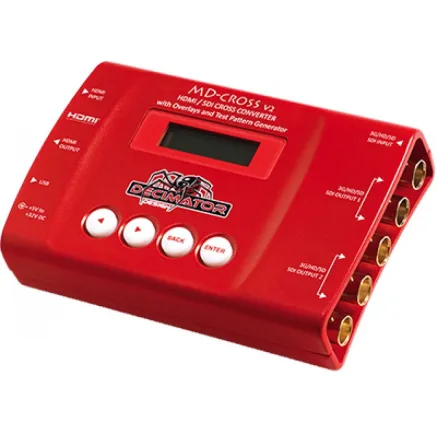

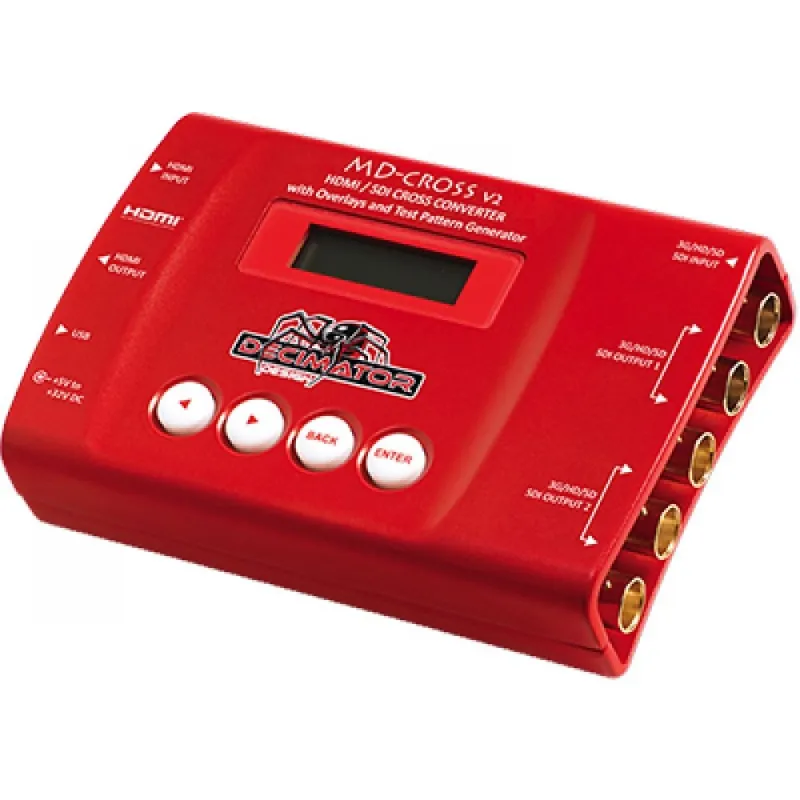

The MD-CROSS from Decimator Design is a feature-packed HDMI/SDI down up cross converter including a professional Test Pattern Generator. The Decimator MD-CROSS can be used to perform a variety of functions:

– HDMI to SDI while simultaneously converting SDI to HDMI
– HDMI to HDMI while simultaneously converting SDI to SDI
– HDMI to SDI and HDMI
– SDI to SDI and HDMI
– Scale & Convert Frame Rate on either the SDI or HDMI inputs
– Convert between level A + level B 3G-SDI New
– Horizontal and/or vertical image flipping via build in scaler New
– Full 16-Channel Audio Metering Overlays
– Adjustable Safe Title & Safe Action Overlays and static Center Cross
– Text Overlays
– Generate 54 test patterns in 26 selectable formats (including Luma & Chroma Zone-plates)

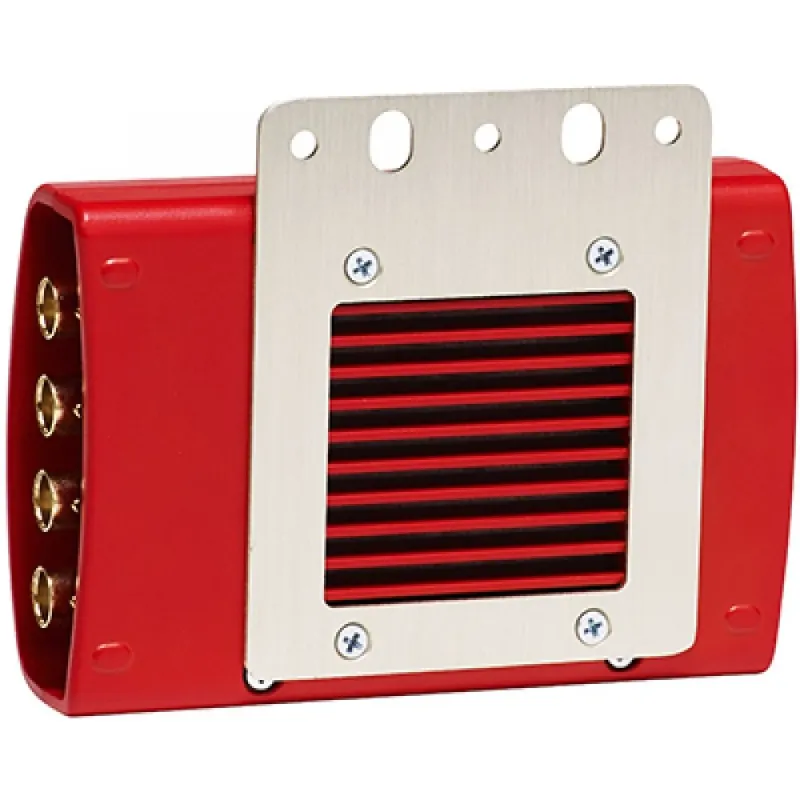

The MD-CROSS is controlled either via USB on a Mac/Windows app, or on-unit using the LCD screen and button controls. The unit comes with a Locking DC Power Supply, HDMI Cable & Mounting Bracket. Warranty for all Decimator Design products is 3 years.

Delivery Contents:
MD-CROSS V2
Power Supply
HDMI Cable
USB Cable

SDI FORMATS

3G: SMPTE 424M@2.97 and 2.967Gb/s: 1080p@60/59.94/50Hz; HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s: 1080i@60/59.94/50Hz, 1080p/psf@30/29.97/25/24/23.98Hz, 720p@60/59.94/50/30/29.97/25/24/23.98Hz; SD:SMPTE 259M@270Mb/s: 625i50, 525i59.94

INPUTS

HDMI: (3G/HD/SD)-SDI 10-bit; Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A

POWER

+5V to +32V DC; Positive Centre Pin

LCD/BUTTON MENU OPTIONS

SDI output source from HDMI IN, SDI IN, TPG or Scaler; HDMI output type and source from HDMI IN, SDI IN, TPG; or Scaler: Scaler source, format and Aspect Controls, full control for Audio Meter Overlays, full control for Safe Action, Safe Title and Centre Cross; Overlays: full control for Text Overlays, full control for Format Status Overlays

OUTPUTS

HDMI: 1 × (3G/HD/SD)-SDI Active Loop-Through; 2 × (3G/HD/SD)-SDI 10-bit Outputs

DIMENSIONS

79.5mm × 123mm × 29.5mm (3.1” × 4.8” × 1.2”)
