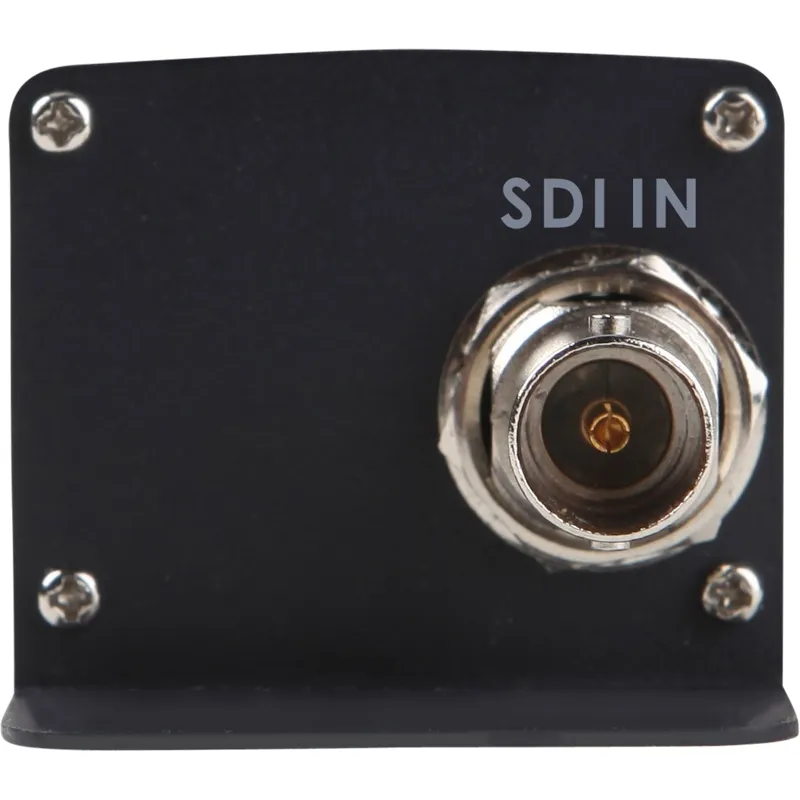

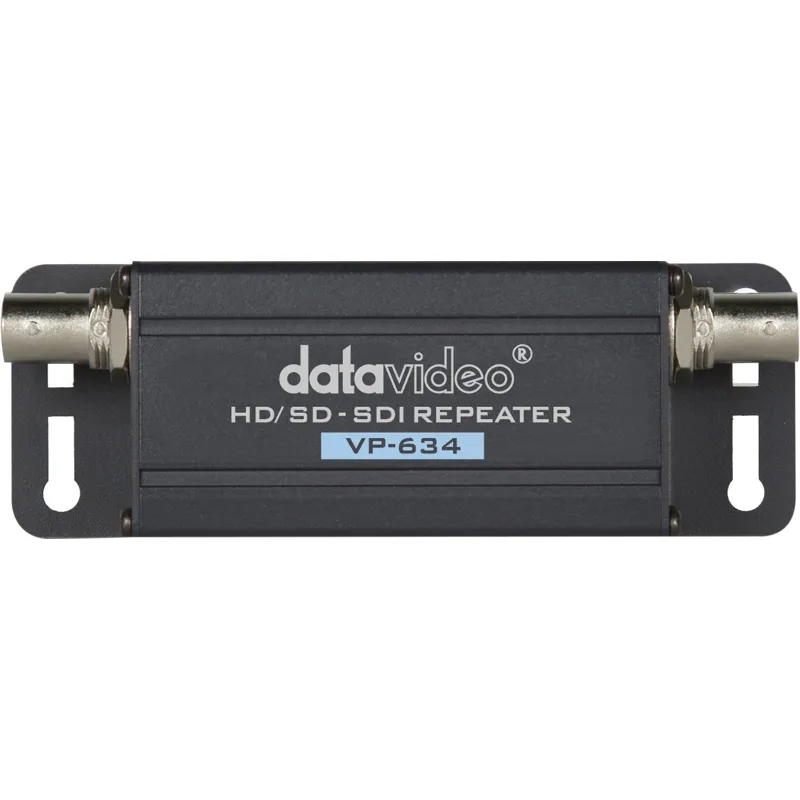

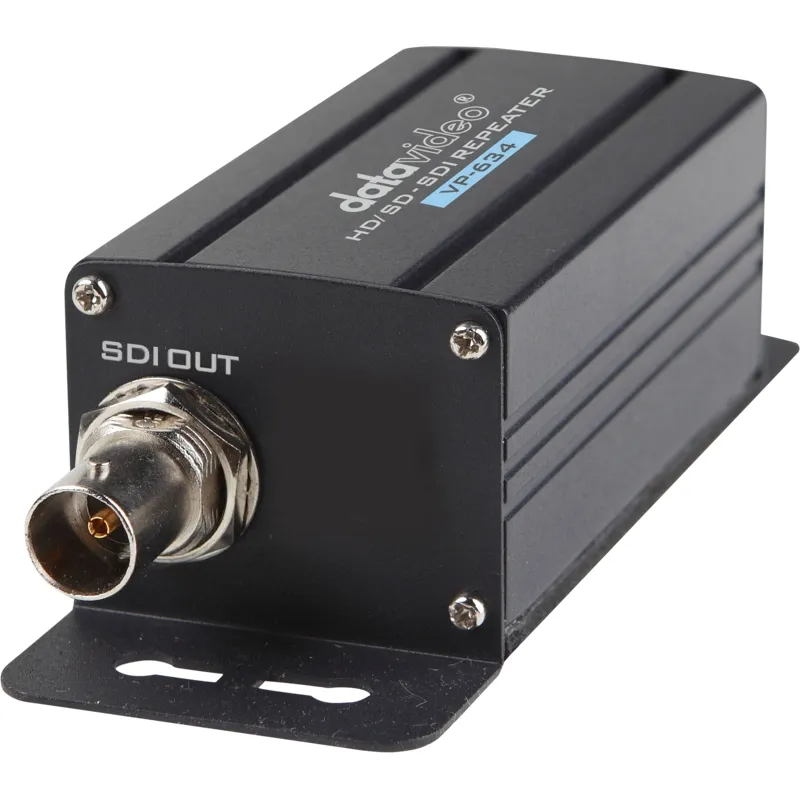

DATAVIDEO VP-634 3G/HD/SD SDI PASSIVE SIGNAL REPEATER VP-634

100m SDI Repeater (Unpowered)

Supports HD/SD-SDI
Extend the capabilities of SDI cable.

Each extended SDI signal up to 200m, when cascaded together allows runs of up to 1000m
SDI Repeaters can be used in a chain, allowing runs of up to 1000m with good quality SDI cable.

Requires VP-633 in chain to supply power
Requires 1 x VP-633 in chain to supply power and Up to 3 VP-634 can be used with 1 x VP-633.

Specifications

• Video and Signal: Input: HD-SDI/SD-SDI, Output: HD-SDI/SD-SDI
• Standard: SD: SMPTE 259M, HD: SMPTE 292M
• Video Format: SD: 480i, 576i / HD: 720p 50/59.94/60 / 1080i 50/59.94/60
• Audio: SDI Embedded Audio
• Dimension (LxWxH): 107 x 38 x 32mm
• Weight: 0.1 kg
• Operating Temp. Range : 0~40 °C
