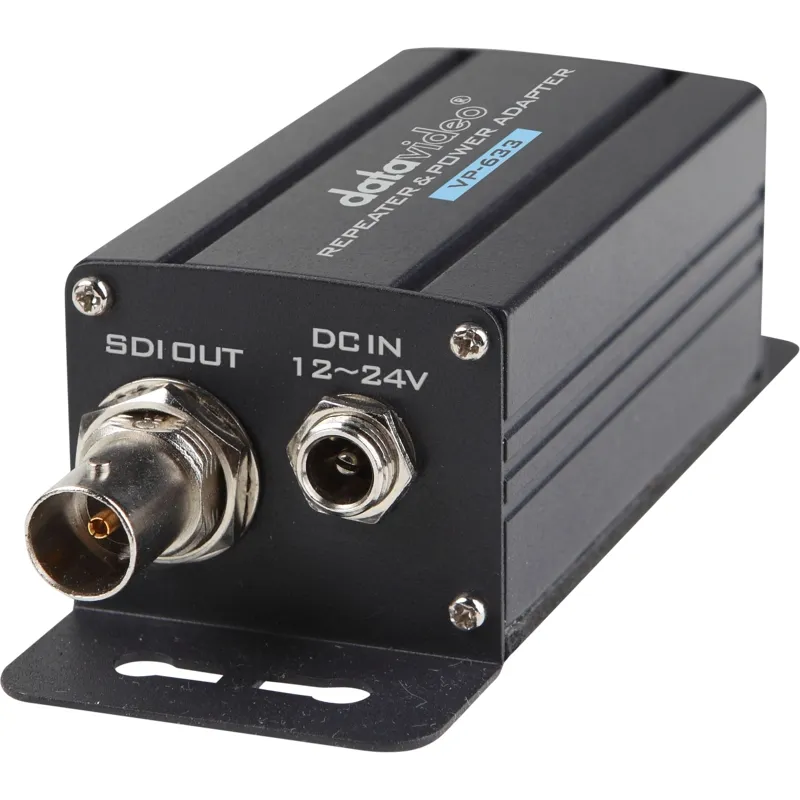

DATAVIDEO VP-633 3G/HD/SD SDI ACTIVE SIGNAL REPEATER VP-633
SKU: 11167
Model: VP-633
Ean: 0672255004098
Būklė: Naujas produktas
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 379.46 su mokesčiais
| Type of Product | Blackmagic Design |
| Accessories for video cameras | pārveidotāji |
100m SDI Repeater (Powered)
Supports HD/SD-SDI
Extend the capabilities of SDI cables, and 12v DC PSU Supplied.
Each extended SDI signal up to 200m, when used with multiple VP-634's allows runs of up to 1000m
Up to 4 SDI Repeaters (1 x VP-633 plus 3 x VP-634) can be used in one chain, allowing runs of up to 1000m with good quality SDI cable. Add up to 3 x unpowered VP-634 for each additional 200m required (SDI Cable dependant).
Specifications
- Video and Signal: Input: HD-SDI/SD-SDI, Output: HD-SDI/SD-SDI
- Standard: SD: SMPTE 259M, HD: SMPTE 292M
- Video Format: SD: 480i, 576i / HD: 720p 50/59.94/60 / 1080i 50/59.94/60
- Audio: SDI Embedded Audio
- Power: DC 12V~25V
- Dimension (LxWxH): 107 x 38 x 32mm
- Weight: 0.1 kg
- Operating Temp. Range: 0~40 °C
